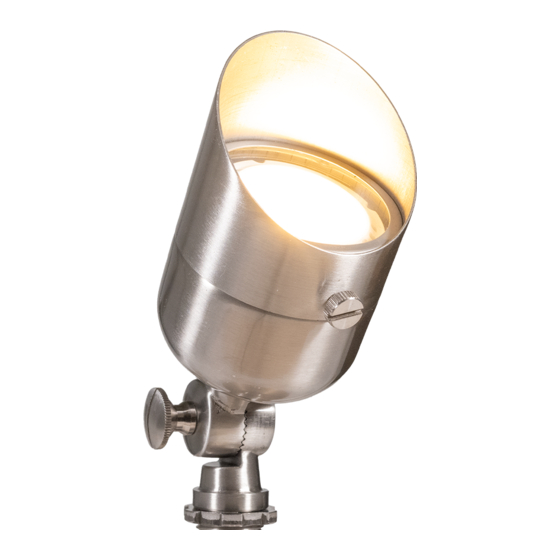

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® G2 EcoPro ® ITEM: AAL-1052 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE G2 EcoPro - AAL-1052 ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body PRODUCT DIMENSIONS B. Mounting Accessory A. (1) MR16 Lamp PRODUCT DIMENSIONS 2.27” 1” REMOVE GLARE GUARD Loosen the set screw and remove the glare guard from the fixture body. Glare Guard Fixture Body Set Screw 813.978.3900 •...
- Page 4 INSTALLATION & MAINTENANCE GUIDE G2 EcoPro - AAL-1052 ® INSTALL MR11 LAMP Insert MR16 lamp with Socket correct wattage and type marked on fixture label. CAUTION: Do not exceed maximum wattage marked MR16 Lamp on luminaire label. INSTALL GLARE GUARD...
- Page 5 INSTALL FIXTURE BODY TO STAKE Clear away an area in the ground at the wireway slot Wireway Slot Fixture Body on top of the stake. Lay the luminaire pigtail into the Pigtail Lock Ring wireway slot and screw the fixture body on to the stake. Tighten the lock ring against the stake and hand tighten Stake...
- Page 6 INSTALLATION & MAINTENANCE GUIDE G2 EcoPro - AAL-1052 ® ADJUST LUMINAIRE DIRECTIONS Loosen the knuckle screw at the joint. Rotate the Thumb Screw luminaire to your desired direction. Tighten the knuckle screw once your desired direction is achieved. Luminaire INSTALL/REPLACE LAMP Please reverse Step 2 - Step 3 to expose the MR16 lamp and replace it with the correct wattage and type marked on the fixture label.
- Page 7 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 8 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
