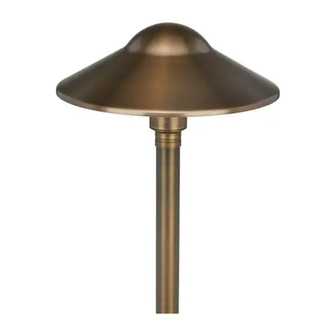

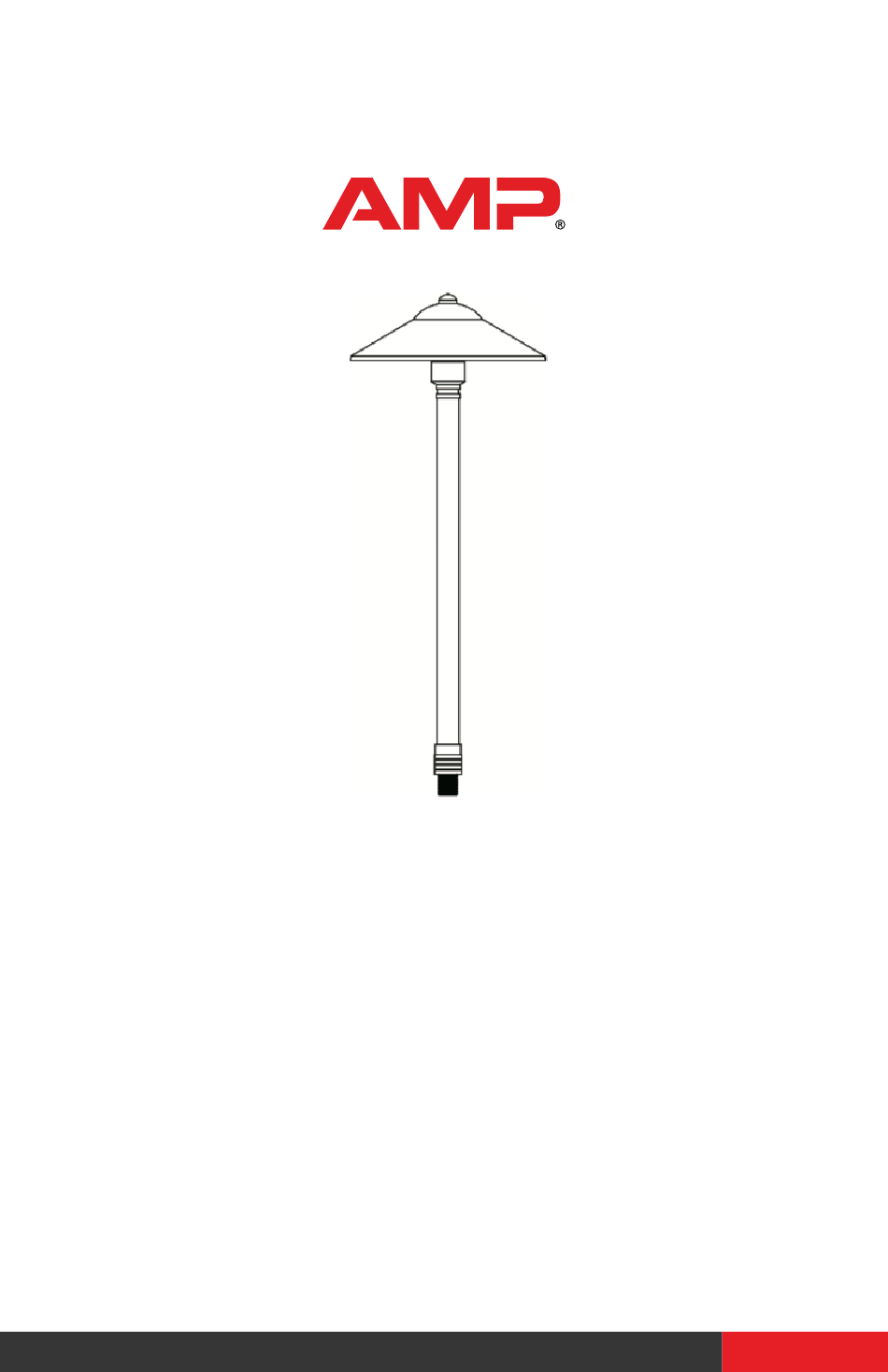

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® ® MagnumPro™ Copper Path & Area Light (Lamp-Ready) ITEM: ASM-2407/1203 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE Copper Path & Area Light (Lamp-Ready) - ASM-2407/1203 ® MagnumPro ™ IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. Stem Parts Required (sold separately) A. (1) Hat C. Stake B. (1) Bulb Product Dimensions Magnum Hat Pictured Here on Magnum Hat Pictured Here on Standard stem Mini stem 9” 2 1/2” 22 1/2” 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 4 INSTALLATION & MAINTENANCE GUIDE Copper Path & Area Light (Lamp-Ready) - ASM-2407/1203 ® MagnumPro ™ Remove Stem Top Loosen the stem top and remove it from the stem. Stem Top Stem Install Bulb Insert the bulb with the correct wattage and type marked on the...
- Page 5 Install Stake Determine the desired location Board for mounting the fixture. Hammer the stake into the ground until the flange of the stake is flush to grade. To avoid damage to the stake, place a board on top of the Stake stake while hammering.
- Page 6 INSTALLATION & MAINTENANCE GUIDE Copper Path & Area Light (Lamp-Ready) - ASM-2407/1203 ® MagnumPro ™ Wire Connection Pigtail Wire Connections Main Supply Cable Strip both leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads.
- Page 7 Install Spun Brass Hat to Stem (Option B) Finial Hat of Choice Place the hat of your choice onto the stem top and secure it with the finial. Hand tighten Stem Top until snug. INSTALL/REPLACE LAMP Remove the hat and stem top to expose the bulb. Replace it with the correct wattage and type marked on the fixture label.
- Page 8 1-813-978-3700 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
