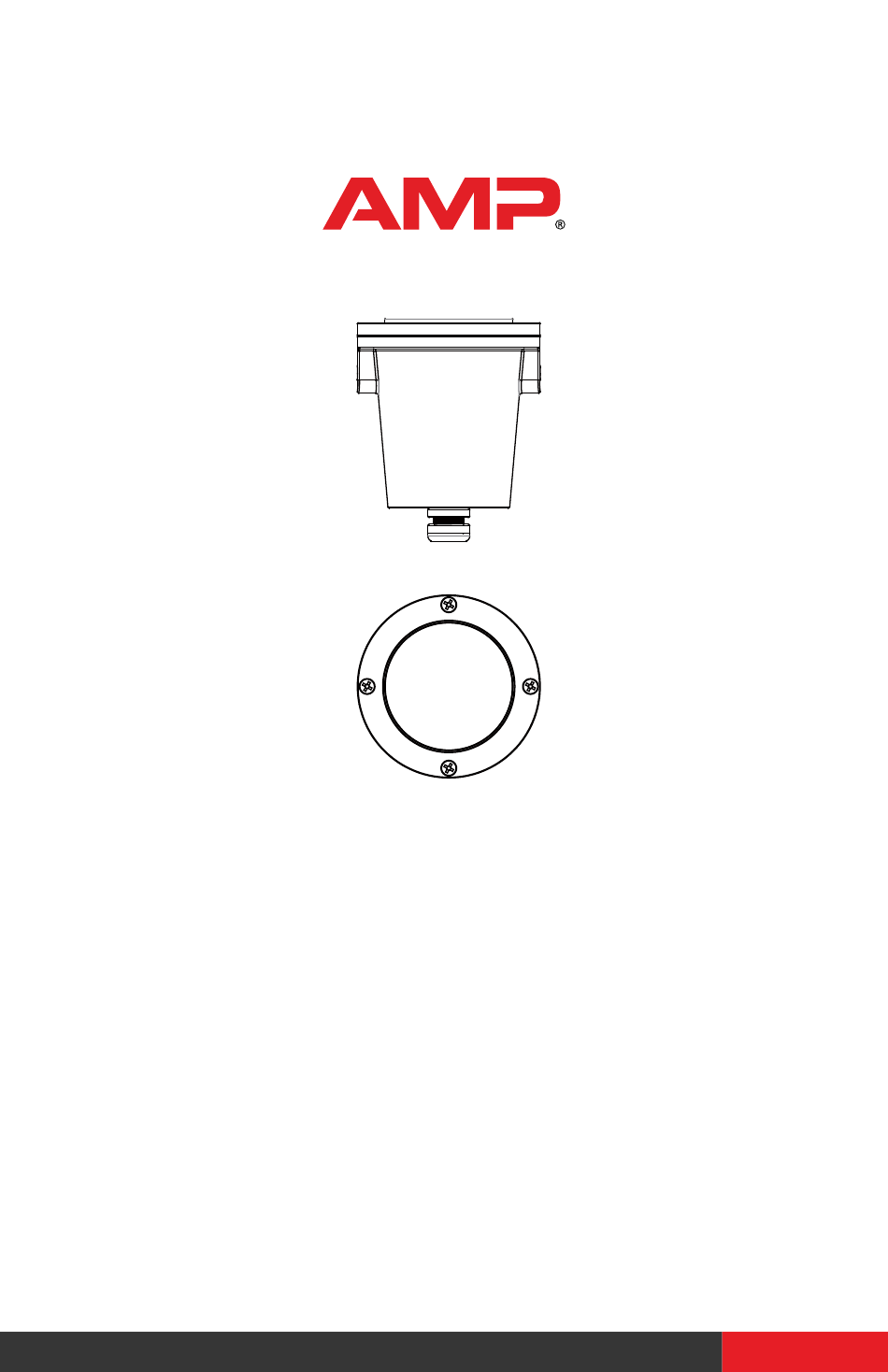

- Page 1 INSTALLATION & MAINTENANCE GUIDE LOW VOLTAGE LANDSCAPE LIGHTING ® HydraPro Black In-Grade Light (Lamp-Ready) ® ITEM: AWL-5006 1-813-978-3900 • Mon-Fri 9am-6pm (EST) - 1 -...
- Page 2 INSTALLATION & MAINTENANCE GUIDE HydraPro MR11 Black In-Grade Light (Lamp Ready) - AWL-5006 ® IMPORTANT SAFETY INSTRUCTIONS: READ BEFORE INSTALLATION This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 PACKAGE CONTENTS A. (1) Fixture Body PARTS REQUIRED (SOLD SEPARATELY) A. (1) MR11 Lamp PRODUCT DIMENSIONS 2.75” 2.85” 813.978.3900 • customersupport@amplighting.com • www.amplighting.com...
- Page 4 INSTALLATION & MAINTENANCE GUIDE HydraPro MR11 Black In-Grade Light (Lamp Ready) - AWL-5006 ® REMOVE FACEPLATE Use a screwdriver to loosen Screw the screws on the faceplate and remove the lens from the fixture body. Faceplate Lens Fixture Body INSTALL LAMP...
- Page 5 REMOVE THE LENS Prepare a hole in the ground. Make sure there are approximately 3” spaces 3” 3” surrounding the fixture for pea gravel or sand. 3” Hole Soil WIRE CONNECTION Supply Cable Wire Connectors Main Supply Cable Pigtail Strip both leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the fixture body to the main supply cable leads.
- Page 6 INSTALLATION & MAINTENANCE GUIDE HydraPro MR11 Black In-Grade Light (Lamp Ready) - AWL-5006 ® FILL HOLE Install the fixture in the Pea Gravel or Sand Fixture hole and fill the hole with pea gravel or sand. Soil INSTALL/REPLACE GLARE GUARD...
- Page 7 REPLACE FACEPLATE Place the lens and faceplate Screw onto the fixture body and secure with previously Faceplate removed screws in a star pattern. Hand tighten until snug with a screwdriver. Lens Fixture Body Faceplate Replacement Options INSTALL/REPLACE LAMP Repeat step 1 - step 3 to remove the faceplate and expose the lamp.
- Page 8 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, AMP® Lighting, Lutz FL USA 33549 • All rights reserved. customersupport@amplighting.com • amplighting.com...
