1.3.18 PLACEMENT OF THE QUICK REFERENCE CARD
The Quick Reference card provides abbreviated descriptions of front panel keys on one
side, and on the other side provides descriptions of the status codes. To attach the Quick
Reference card, thread the NIBP hose through the two holes in the card.
Thread the NIBP
— 一 一
ED toe gato alert
„=
Cossa A
use ron
ae Oy.
FATENTINFO. © m
a emo
GE) ve esa)
Te emo recon ели,
rs DA SC, o pra od
M
Es
SI tres tp iat
Suite
hose through the
2 holes in the Quick
Reference Card.

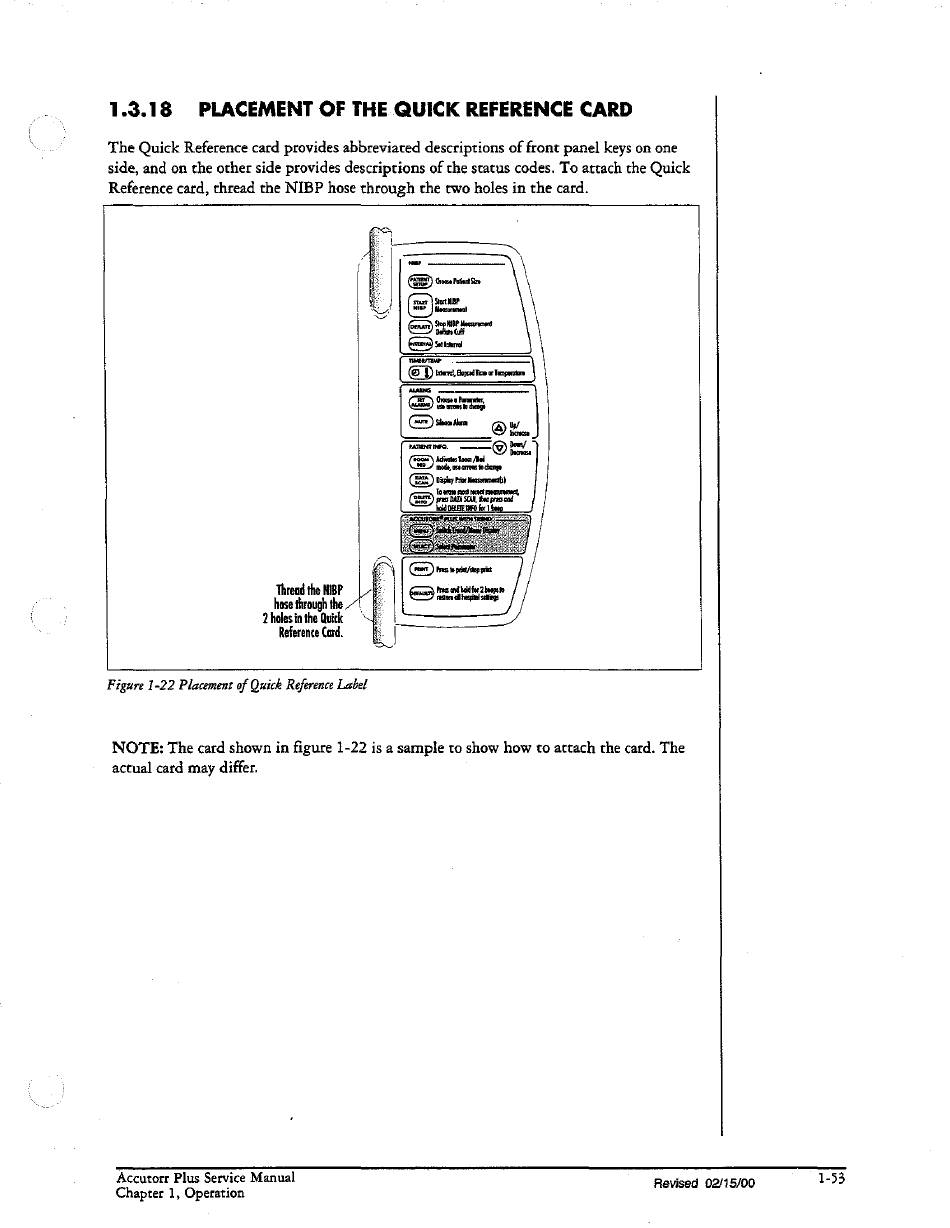

Figure 1-22 Placement of Quick Reference Label
NOTE: The card shown in figure 1-22 is a sample to show how to attach the card. The
actual card may differ.
