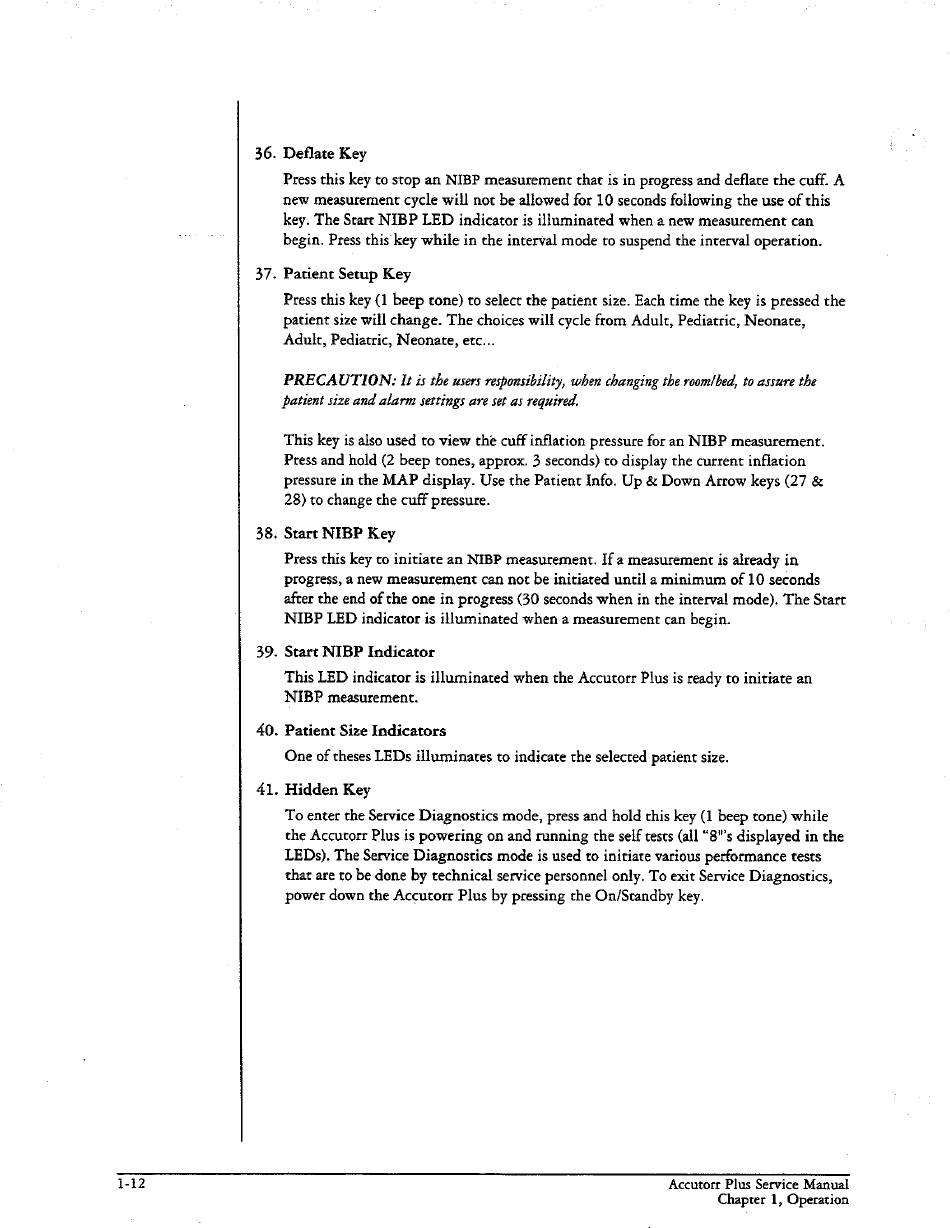

Datascope Accutorr Plus Service Manual page 22

36.
37.
38.
39.
40.
41.
Deflate Key
Press this key to stop an NIBP measurement that is in progress and deflate the cuff. A
new measurement cycle will not be allowed for 10 seconds following the use of this
key. The Start NIBP LED indicator is illuminated when a new measurement can
begin. Press this key while in the interval mode to suspend the interval operation.
Patient Setup Key
Press this key (1 beep tone) to select the patient size. Each time the key is pressed the
patient size will change. The choices will cycle from Adult, Pediatric, Neonate,
Adult, Pediatric, Neonate, etc...
PRECAUTION: It és the users responsibility, when changing the roomlbed, to assure the
patient size and alarm settings ave set as required.
This key is also used to view the cuff inflation pressure for an NIBP measurement.
Press and hold (2 beep tones, approx. 3 seconds) to display the current inflation
pressure in the MAP display. Use the Patient Info. Up & Down Arrow keys (27 &
28) to change the cuff pressure.
Start NIBP Key
Press this key to initiate an NIBP measurement. If a measurement is already in
progress, a new measurement can not be initiated until a minimum of 10 seconds
after the end of the one in progress (30 seconds when in the interval mode). The Start
NIBP LED indicator is illuminated when a measurement can begin.
Start NIBP Indicator
This LED indicator is illuminated when the Accutorr Plus is ready to initiate an
NIBP measurement.
Patient Size Indicators
One of theses LEDs illuminates to indicate the selected patient size.
Hidden Key
To enter the Service Diagnostics mode, press and hold this key (1 beep tone) while
the Accutorr Plus is powering on and running the self tests (all "8"s displayed in the
LEDs). The Service Diagnostics mode is used to initiate various performance tests
that are to be done by technical service personnel only. To exit Service Diagnostics,
power down the Accutorr Plus by pressing the On/Standby key.
