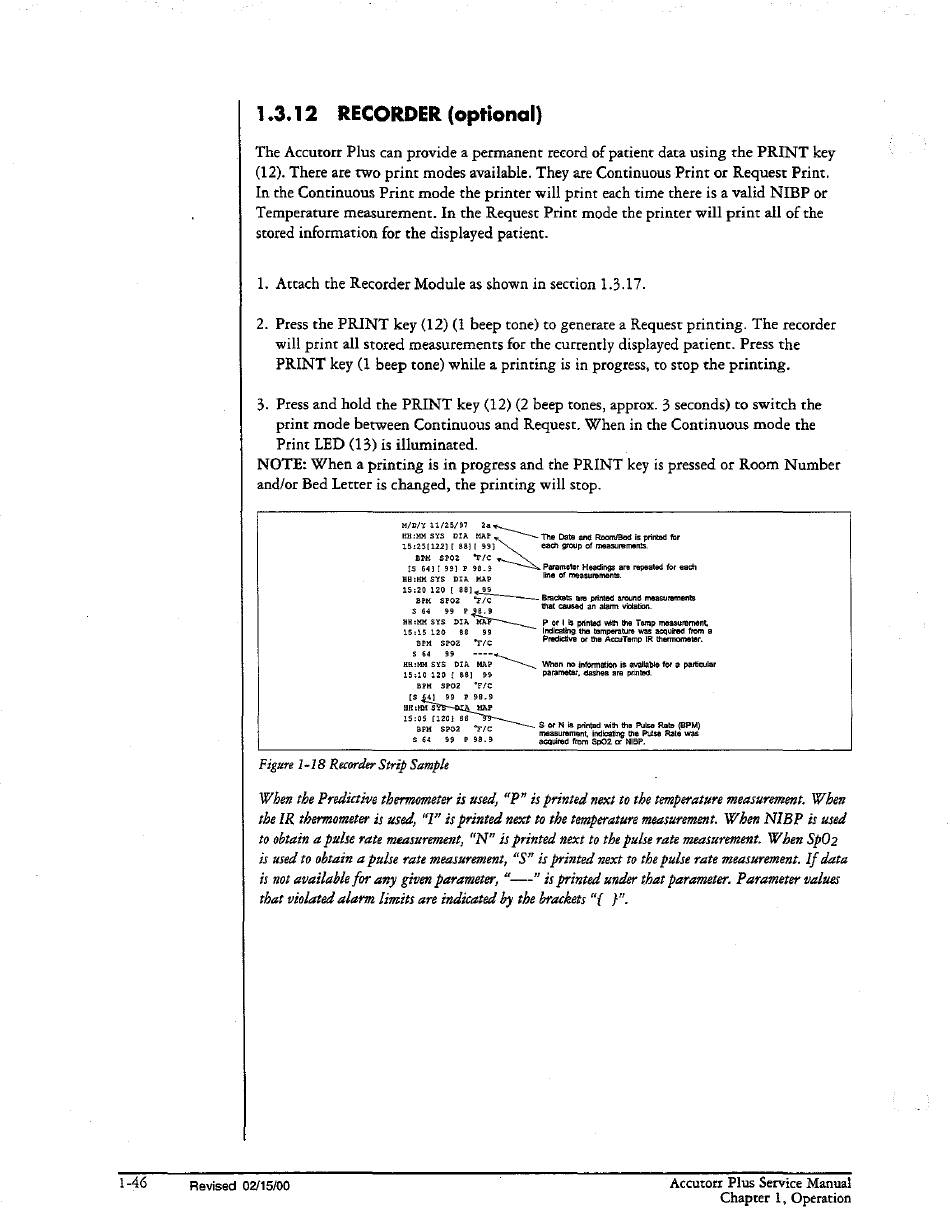

1.3.12
RECORDER (optional)
The Accutorr Plus can provide a permanent record of patient data using the PRINT key
(12). There are two print modes available. They are Continuous Print or Request Print.
In the Continuous Print mode the printer will print each time there is a valid NIBP or
Temperature measurement. In the Request Print mode the printer will print all of the
stored information for the displayed patient.
1. Attach the Recorder Module as shown in section 1.3.17.
2. Press the PRINT key (12) (1 beep tone) to generate a Request printing. The recorder
will print all stored measurements for the currently displayed patient. Press the
PRINT key (1 beep tone) while a printing is in progress, to stop the printing.
3. Press and hold the PRINT key (12) (2 beep tones, approx. 3 seconds) to switch the
print mode between Continuous and Request. When in the Continuous mode the
Print LED (13) is illuminated.
NOTE: When a printing is in progress and the PRINT key is pressed or Room Number
and/or Bed Letter is changed, the printing will stop.
M/D/Y
11/25/97
2a
HMM SYS DİA at
The Date and Room/Bad is printed for
15:25(122) [ 88} 1 991
each group of measurements.
BPM
SPOZ
'F/C
15 643[ 99] P 98.9
Parameter Headings are repsated for each
HH:MM SYS DIA MAP
line of measurements.
15:20 120 [ 100
=
BPM
SPOZ
'F/C
rackets are printed around measurement
$64
99 9 98.9
'hat caused
an alam violation.
HMM SYS DIA MAI
P or I is printed with the Temp measurement,
15:15 120
88
99
Indicating the temperature was acquired from a
BPM
5202
°F/¢
Predictive of the AccuTemp IR thermometer.
5 64
35
—---
HH:MM SYS DIA mae
'When no information is available for a particular
15:10
120
[ 88]
99
parameter, dashes ara printed.
BPM
SPO2
*F/C
[S
$4]
99
P 98.9
HH:MM S
MAP
15:05 (1201 88
i
«te
Sor N is printed with the Pulse Rate (BPM)
BPM
SPO2
a d with
measurement, indicating
the Pulse Rate was
S64
99
P 99.9
acquired from Sp02 DE NBP,
Figure 1-18 Recorder Strip Sample
When the Predictive thermometer is used, "P" is printed next to the temperature measurement. When
the IR thermometer is used, "I" is printed next to the temperature measurement. When NIBP is used
to obtain a pulse rate measurement, "N" is printed next to the pulse rate measurement. W hen SpO2
is used to obtain a pulse rate measurement, "S" is printed next to the pulse rate measurement. If data
is not available for any given parameter, "—-" is printed under that parameter. Parameter values
that violated alarm limits are indicated by the brackets "{ }'.
