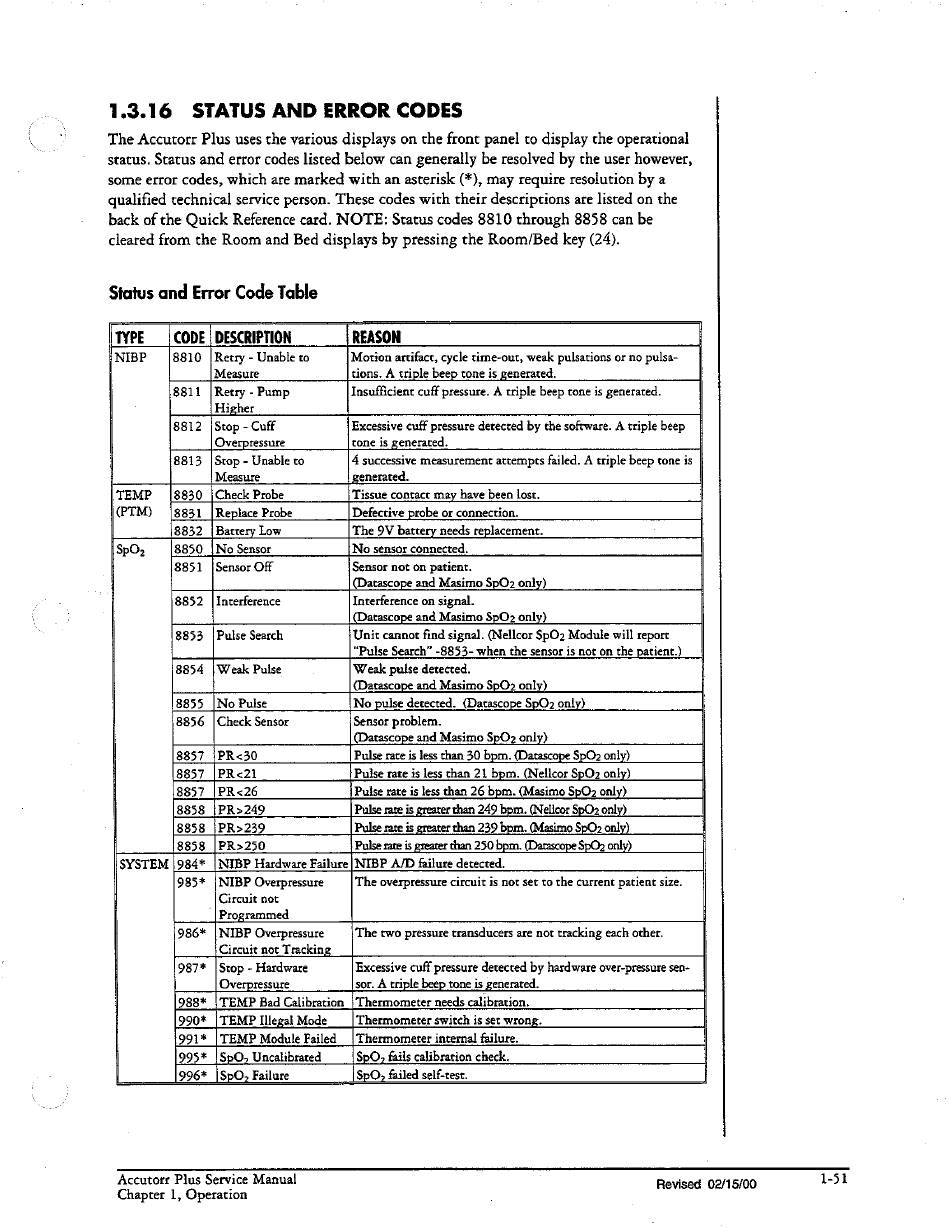

1.3.16 STATUS AND ERROR CODES
The Accutorr Plus uses the various displays on the front panel to display the operational
status. Status and error codes listed below can generally be resolved by the user however,
some error codes, which are marked with an asterisk (*), may require resolution by a
qualified technical service person. These codes with their descriptions are listed on the
back of the Quick Reference card. NOTE: Status codes 8810 through 8858 can be
cleared from the Room and Bed displays by pressing the Room/Bed key (24).
Status and Error Code Table
TYPE | CODE | DESCRIPTION REASON
NIBP 8810 |Retry - Unable to Motion artifact, cycle time-out, weak pulsations or no pulsa-
Measure tions. A triple beep tone is generated.
8811 | Retry - Pump Insufficient cuff pressure. A triple beep tone is generated.
Higher
8812 |Stop - Cuff Excessive cuff pressure derected by the software. A triple beep
Overpressure tone is generated.
8813 |Stop - Unable to A successive measurement attempts failed. A triple beep tone is
Measure generated.
TEMP |8830 | Check Probe Tissue contact may have been lost.
(РТМ) [8831 |Replace Probe Defective probe or connection.
8832 | Baccery Low The 9V battery needs replacement.
SpO, 8850 |No Sensor No sensor connected.
8851 |Sensor Off Sensor not on patient.
(Datascope and Masimo SpO2 only)
8852 |Interference Interference on signal.
{Datascope and Masimo SpO> only}
8853 | Pulse Search Unit cannot find signal. (Nellcor S$pOz Module will report
"Pulse Search" -8853- when the sensor is not on the patient.)
8854 | Weak Pulse Weak pulse detected.
(Datascope and Masimo SpO> only)
8855 | No Pulse No pulse detected. (Datascope SpO2 only)
8856 |Check Sensor Sensor problem.
(Datascope and Masimo SpO> only)
8857 |PR<30 Pulse rate is less than 30 bpm. (Datascope $pOz only)
8857 |PR<21 Pulse rate is less than 21 bpm. (Nellcor SpO2 only)
8857 |PR<26 Pulse rate is less than 26 bpm. (Masimo SpOz only)
8858 IPR>249 Pulse cate is greater than 249 bpm. (Nellcor SpOz only)
8858 ¡PR>239 Pulse rate is greater than 239 bpm. (Masimo SpO only)
8858 |PR>250 Pulse rate is greater than 250 bpm. (Datascope SpO» only)
SYSTEM |984* | NIBP Hardware Failure | NIBP A/D failure detected.
985* | NIBP Overpressure The overpressure circuit is not set to the current patient size.
Circuit not
" | Programmed
986* | NIBP Overpressure The two pressure transducers are not tracking each other.
Circuit not Tracking
987* |Stop - Hardware Excessive cuff pressure detected by hardware over-pressure sen-
Overpressure sor. A triple beep tone is generated.
988* | TEMP Bad Calibration |'Thermometer needs calibration.
990* |TEMP Illegal Mode. Thermometer switch is set wrong.
991* |TEMP Module Failed |Thermometer internal failure.
995* |SpO, Uncalibrared SpO, fails calibration check.
996* |SpO, Failure SpO, failed self-test.
