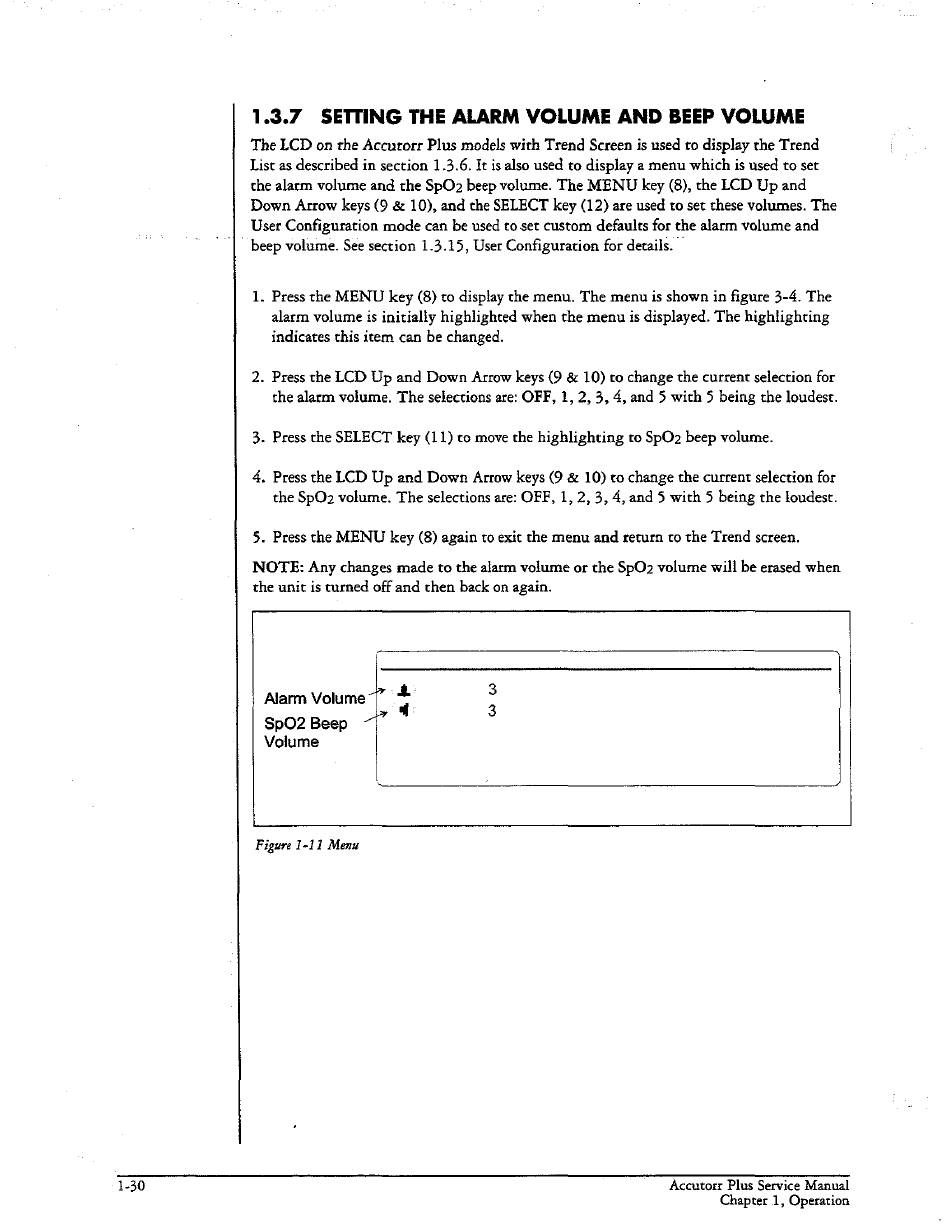

1.3.7 SETTING THE ALARM VOLUME AND BEEP VOLUME
The LCD on the Accurorr Plus models with Trend Screen is used to display the Trend
List as described in section 1.3.6. It is also used to display a menu which is used to set
the alarm volume and the SpO2 beep volume. The MENU key (8), the LCD Up and
Down Arrow keys (9 & 10), and the SELECT key (12) are used to set these volumes. The
User Configuration mode can be used to set custom defaults for the alarm volume and
beep volume. See section 1.3.15, User Configuration for details. *
1. Press the MENU key (8) to display the menu. The menu is shown in figure 3-4. The
alarm volume is initially highlighted when the menu is displayed. The highlighting
indicates this item can be changed.
2. Press the LCD Up and Down Arrow keys (9 & 10) to change the current selection for
the alarm volume. The selections are: OFF, 1, 2, 3, 4, and 5 with 5 being the loudest.
3. Press the SELECT key (11) to move the highlighting to SpO2 beep volume.
4. Press the LCD Up and Down Arrow keys (9 & 10) to change the current selection for
the SpO2 volume. The selections are: OFF, 1, 2, 3, 4, and 5 with 5 being the loudest.
5. Press the MENU key (8) again to exit the menu and return to the Trend screen.
NOTE: Any changes made to the alarm volume or the SpO2 volume will be erased when
the unit is turned off and then back on again.
Alarm Volume ' 3
SpO2 Beep
Volume
Figure 1-11 Menu
