1.2.3
Predictive Thermometer Module (PTM)
a
49
ES
50
L
SK
[E]
工 一
5]

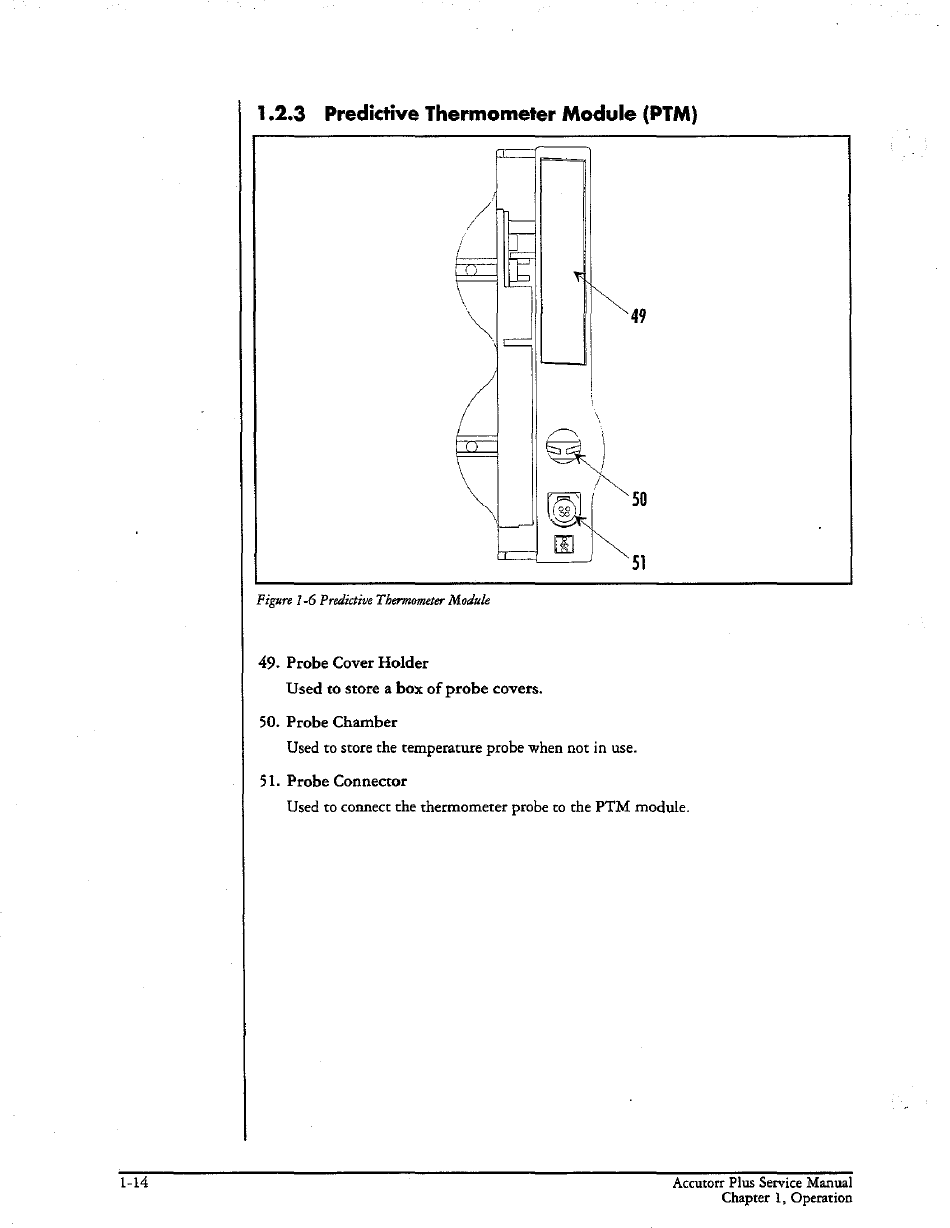

Figure 1-6 Predictive Thermometer Module
49. Probe Cover Holder
Used to store a box of probe covers.
50. Probe Chamber
Used to store the temperature probe when not in use.
51. Probe Connector
Used to connect the thermometer probe to the PTM module.
Accutorr Plus Service Manual
Chapter 1, Operation
