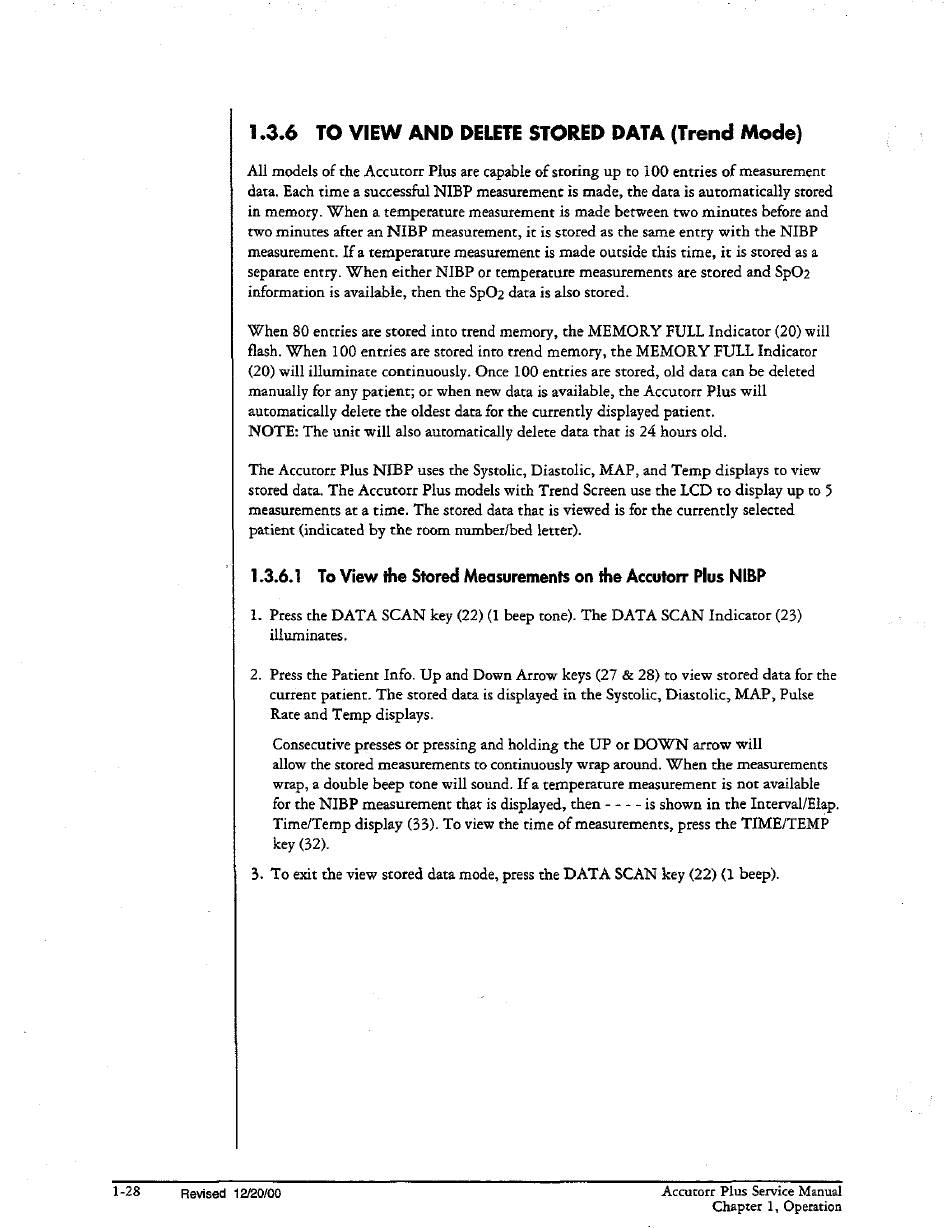

1.3.6 TO VIEW AND DELETE STORED DATA (Trend Mode)
All models of the Accutorr Plus are capable of storing up to 100 entries of measurement
data. Each time a successful NIBP measurement is made, the data is automatically stored
in memory. When a temperature measurement is made between two minutes before and
two minutes after an NIBP measurement, it is stored as the sare entry with the NIBP
measurement. If a temperature measurement is made outside this time, it is stored as a
separate entry. When either NIBP or temperature measurements are stored and SpO2
information is available, then the SpO2 data is also stored.
When 80 entries are stored into trend memory, the MEMORY FULL Indicator (20) will
flash. When 100 entries are stored into trend memory, the MEMORY FULL Indicator
(20) will illuminate continuously. Once 100 entries are stored, old data can be deleted
manually for any patient; or when new data is available, the Accutorr Plus will
automatically delete the oldest data for the currently displayed patient.
NOTE: The unit will also automatically delete data that is 24 hours old.
The Accutorr Plus NIBP uses the Systolic, Diastolic, MAP, and Temp displays to view
stored data. The Accutorr Plus models with Trend Screen use the LCD to display up to 5
measurements at a time. The stored data that is viewed is for the currently selected
patient (indicated by the room number/bed letter).
1.3.6.1 To View the Stored Measurements on the Accutorr Plus NIBP
1. Press che DATA SCAN key (22) (1 beep tone). The DATA SCAN Indicator (23)
illuminates.
2. Press the Patient Info. Up and Down Arrow keys (27 & 28) to view stored data for the
current patient. The stored data is displayed in the Systolic, Diastolic, MAP, Pulse
Rate and Temp displays.
Consecutive presses or pressing and holding the UP or DOWN arrow will
allow the stored measurements to continuously wrap around. When the measurements
wrap, a double beep tone will sound. If a temperature measurement is not available
for the NIBP measurement that is displayed, then - - - - is shown in the Interval/Elap.
Time/Temp display (33). To view the time of measurements, press the TIME/TEMP
key (32).
3. To exit the view stored data mode, press the DATA SCAN key (22) (1 beep).
