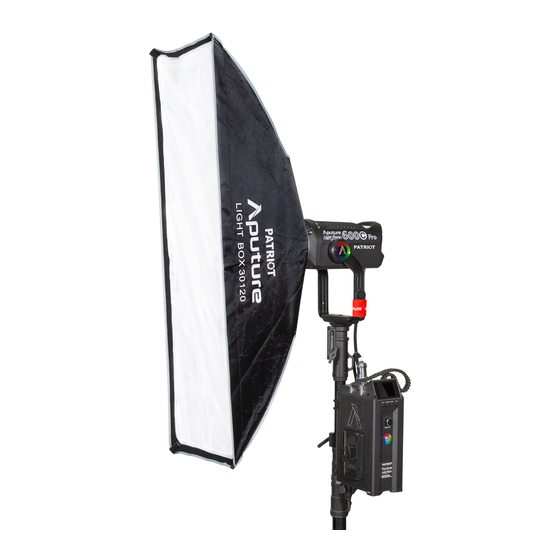

Aputure LIGHT BOX 30120 Product Manual

Foreword
Thank you for purchasing Aputure Light Box 30120.
Light box 30120 is designed for LS 120d II,LS 300d II,LS 300X,
LS 600d Pro,Amaran 60,Amaran 100 and Amaran 200 series and
compatible with other Bowens Mount LED video light.
IMPORTANT SAFETY INSTRUCTIONS
LIGHT BOX 30120
When using this unit, basic safety precautions should always be
followed, including the following:
1. Read and understand all instructions before using.
2. Close supervision is necessary when any fixture is used by or
near children. Do not leave the fixture unattended while in use.
3. Care must be taken as burns can occur from touching hot surfaces.
4. Care must be taken when touching, installing or disassembling
the elastic support rod.
5. Let the fixture cool completely before storing.
6. To reduce the risk of injury, please install or disassemble the fixture
properly.
7. The use of an accessory attachment not recommended by the
manufacturer may increase the risk of fire, electric shock, or injury
to any persons operating the fixture.
8. Please do not place the fixture near any liquids or other
flammable objects.
9. Only use a dry microfiber cloth to clean the product.
10. This product is certified by RoHS. Please operate the product
in full compliance with the operation standards.
Product Manual
Please note that this warranty does not apply to repairs arising
from malfunctions, although you may request such repairs on a
English
chargeable basis.
11. The instructions and information in this manual are based on Installations
thorough, controlled company testing procedures. Further notice
According to the diagonal installation method, insert the four
will not be given if the design or specifications change.
support rods, then lock the chuck, and fit the velcro on the softbox,
then install the softbox on the lamp.
SAVE THESE INSTRUCTIONS
Check list
When you unbox the product, please make sure all the items listed
below are included. Otherwise, please contact the seller immediately.
30*120 Square softbox (1pc) Speed Ring Adapter (1pc)
Use Velcro to install the
Front Fabric Diffusion
Inside Fabric Diffusion
(1pc 1.5 Stop Diffusion,
(1pc)
1pc 2.5 Stop Diffusion)
Fabric Light Control Grid Light Box 30120 Carrying Bag
（1pc） (1pc)
Disassembly: Pull out four steel rods diagonally and in the opposite
direction
1
2
1
Specifications
Item
softbox(built) 120*30*40cm/47.24*11.81*15.75in
softbox(Collapsed)
3
Front Fabric Diffuser 1(1.5 stop)
Front Fabric Diffuser 2(2.5 stop)
Fabric Light Control Grid on the diffuser.
Inside Fabric Diffusion
Fabric Light Control Grid
Speed Ring Adapter
Trademarks
Bowens is a trademark registered by Bowens in China and other
countries.
1
Detailed product manual can be found on www.aputure.com.
2
Dimension Net Weight
67.8*10*3cm/26.69*3.94*1.18in
120*30cm/47.24*11.81in
1086g
120*30cm/47.24*11.81in
65.5*20cm/25.8*7.9in
120*30cm/47.24*11.81in
Standard Bowens Mount
