Mechanical Installation
Mounting
The Intellinova
Compact Ex units have an industrial cabi-
®
net designed for wall mounting. It should be mounted
vertically with 4 bolts through the 8 mm holes in mount-
ing braces as shown in the figure. Use mounting bolts
with material quality Stainless Steel recommended to
DIN912, ISO4762.
The Intellinova
Compact Ex unit shall be mounted in a
®
way that allows access to the test port.
Mechanical Installation
340
380
410
434

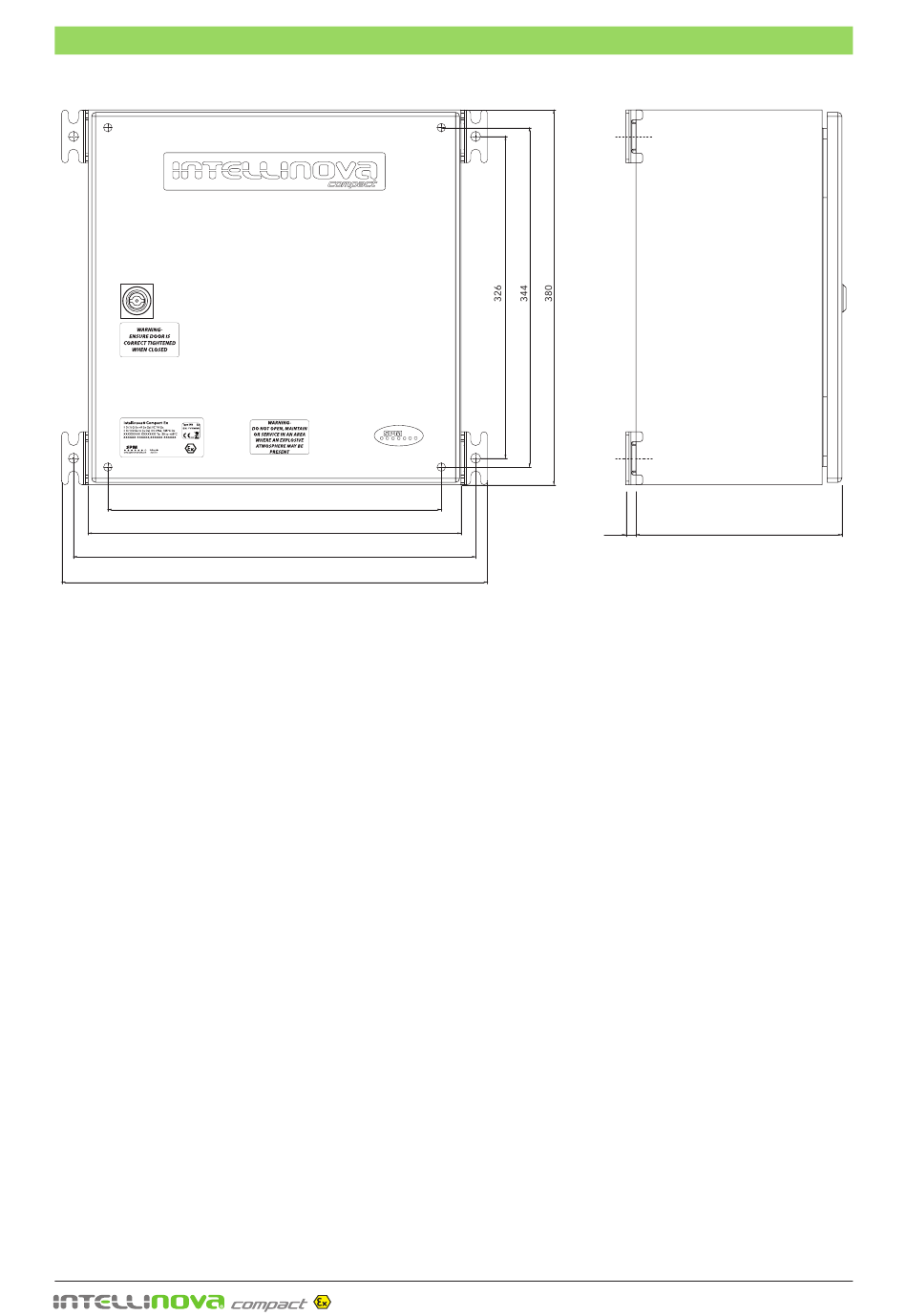

Installation with mounting braces (SPM 81524)
10
Environment
The cabinet is made of stainless steel and has silicone
gaskets (IP66). Environmental limitations are according
to the technical specification. The electrical environment
must be suitable for data cables.
– 5 –
