2
NB: See the software instruction 'Installing
Condmaster
Ruby" (72094B) with detailed step
®
by step instructions how to setup the Commander
Unit in the Field Service Software, FSS.

SD Memory Card

The System Unit has a built-in SD (Secure Digital) card
reader for 2 GB SD cards (1). The supplied card has been
formatted and can be used immediately.
The SD card is used for the configuration of the System
Unit and establish communication between the unit and
the LinX server, storing measurement task files and buffer-
ing measurement data in case of network malfunctions. It
is also used in situations where Intellinova is used offline,
e.g. onboard ships. A computer with the communication
software LinX and the Field Service Software, FSS, may
be used to load task files from the database onto the SD
card and download measuring results to Condmaster.
This card must not be removed when the System Unit
is in use.

Configuration

Configuration of the System Unit is done in FSS, the
graphical user interface to LinX (also used for field service
and support). LinX is the communication software han-
dling all messages between the Condmaster database
and the Intellinova System Units.
Configurating Intellinova
The SD card has to be loaded with necessary setup files
to establish communication between the System Unit
and the LinX server. The SD card is connected to the LinX
computer and the setup is done in FSS. The setup files
are saved to the SD card so that if communication has
been lost, the buffered data will later find its way to the
LinX server.
Before starting the System Unit, all mechanical and elec-
trical installations must be done.

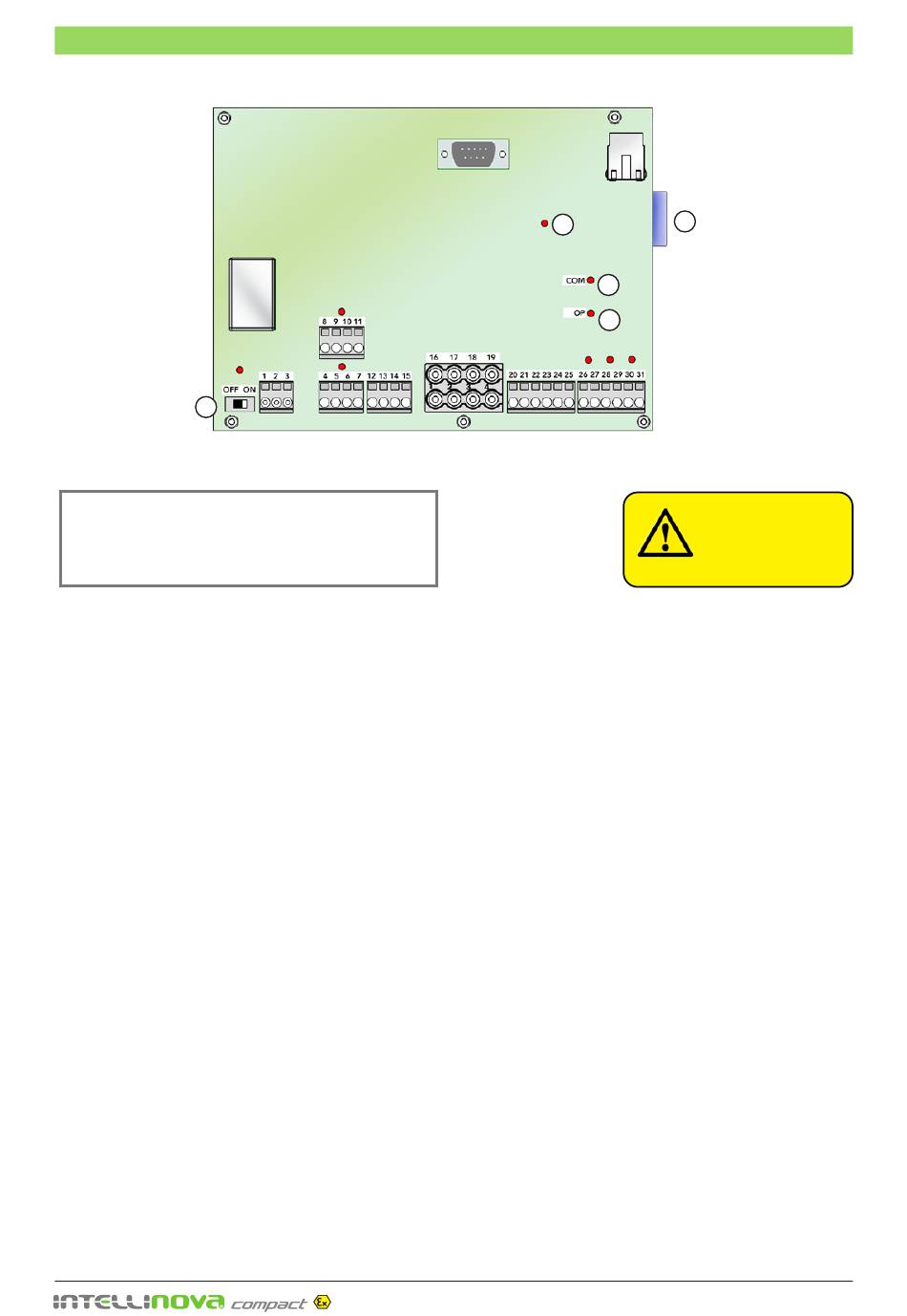

• Place the configured SD card in the SD card reader
(1). Push the card in as far as it will go into the slot
with the contact area facing in and with the chipped
corner on the right side.
• Start up the System Unit with the ON/OFF button
(2). The red LED (3) indicates reading and writing to
the card.
• The COM indicator (4) will blink when the System
Unit communicates with the LinX computer.
• The OP indicator (5) will light when the measuring
circuits are operating.
– 17 –
1
SD card
3
4
5
CAUTION
Never remove
the SD card when
power is on
