Mounting TNC Connector 93022

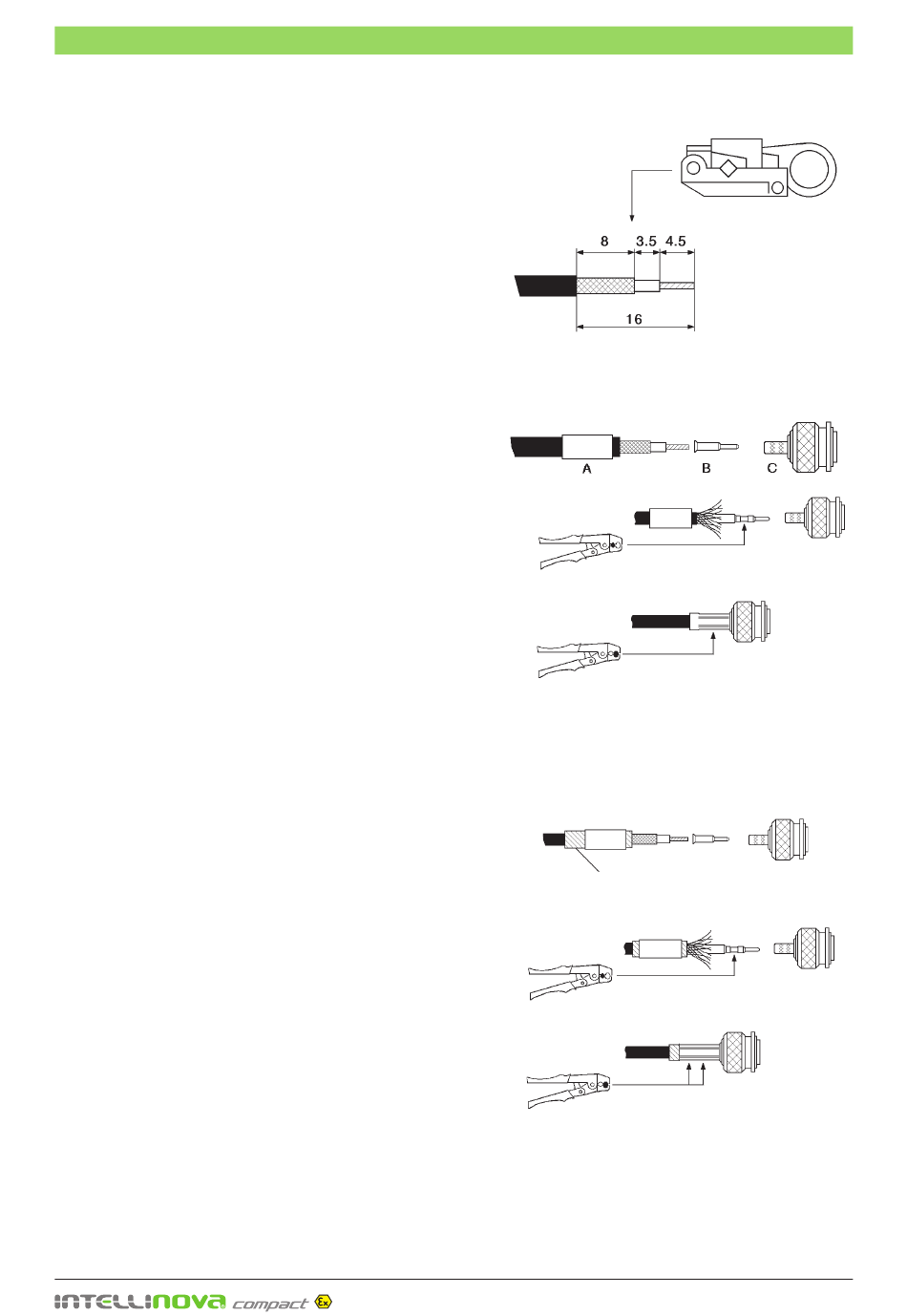

With the cutting tool SPM 81052, a cable is stripped as
follows:
• Cut the cable end with a sharp knife. Push the cutting
tool slide to 5. Put the cable into the tool, with the
end towards the SPM label, level with the centre of
the outer groove.
• Close the tool. Push the slide one step at a time to 1,
rotating the tool several turns for each step. Push the
slide to 5, open the tool, take out the cable.
• Remove the cut-off parts. The two outer bits should
come off easily, exposing 4.5 mm of the inner conduc-
tor and 3.5 mm of the dielectric.
• Slice lengthwise through the remaining bit of insula-
tion, peel it off. Do not damage the braid.
The cut through the insulation should not quite reach the
braid. If two or more strands are cut off the inner conductor,
the pin will not hold when crimped on.
Mount connector 93022 as follows:
• Slide the metal ferrule A onto the cable. With 4 mm
cables, also push the neoprene tube over the cable.
This is best done before stripping the cable.
• Push the contact pin B over the inner conductor and
against the dielectric, with all strands of the inner con-
ductor inside the contact pin. Crimp on the contact
pin.
• Splay out the braid with a conical movement of the
cable end. Push the crimp spigot C under the braid
until the contact pin engages. All strands of the braid
must be on the outside of the spigot.
• Slide the neoprene tube (if used) and ferrule over the
braid and against the connector body. Crimp twice,
first close to the connector body, then again at the
end of the ferrule.
Bearing Monitoring
– 12 –
SPM 81052
Cables with 4 mm diameter
SPM 82166
