Safety Arrangements

General
All persons performing installation or service on rotating
machines and electrical equipment should be authorised
and familiar with general safety rules and IEC symbols
as well as local requirements, rules and regulations. This
equipment must only be installed, used and maintained
by competent personnel. Such personnel shall have
undergone training, which included instruction on the
various types of protection and installation practices, the
relevant rules and regulations, and on the general princi-
ples of area classification. Appropriate refresher training
shall be given on a regular basis (See EN 60079-17).
The installation, use and maintenance of this equipment
must comply with the appropriate European, national and
local regulations, which may include reference to the IEC
standards IEC60079-14, IEC60079-17 and IEC60079-19.
In addition, particular industries or end users may have
specific requirements relating to the safety (or health)
and these requirements should also be met. Instructions
and specifications issued by the manufacturer must be
followed.
In case of doubt, the local management should be con-
sulted. SPM Instrument will not be responsible for any
accident caused by persons not observing these Safety
Precautions.
The explosion-proof Intellinova
used for stationary installation in hazardous areas classi-
fied to EN 60079-10 as Zone 2 or Zone 22.
Do not leave this manual or any other object inside the
enclosure when the unit is in service.
Operate the explosion-proof Intellinova
units only for their intended purpose when in an undam-
aged and clean condition, and only where the material of
the enclosure is compatible with the environment.
If assembly is not carried out correctly, it cannot be ensured
that the cabinet is a restricted breathing enclosure EPL "Ex
nR" and dust ignition protection by enclosure EPL "Ex tc".
No modifications that are not expressly specified in this
Manual are allowed to the Intellinova
Whenever work is done on the Intellinova
units, the national safety and accident prevention regula-
tions and the safety instructions given in this Manual must
always be observed!
Disconnection
Before starting installation work on machines, make sure
that main power is off and will stay off until the work is
done. Do not simply pull the switch - remove the fuses,
lock the fuse box, put up warning signs. Check all termi-
nals to ensure that the equipment is voltage-free by using
a Ex-certified voltage tester.
Safety Arrangements
Compact Ex units are
®
Compact Ex
®
Compact Ex units.
®
Compact Ex
®
– 2 –
Risk for electric Caution
shock
Protective
earth
ATEX and UKEX certified
electrical equipment for
explosive atmospheres.
Electrical Installation
Always read the instructions delivered with the equip-
ment before performing installation or service on elec-
tric equipment. If you are in doubt, please contact your
local SPM Instrument representative before installing
the equipment. Damage of the equipment caused by
incorrect installation is not covered by product warranty.
Before starting installation work, make sure that the
main power switch is in off position and will stay off until
the work is done. Check that all terminals, marked with
protective earth IEC symbol, are properly connected to
the protective earthing conductor of the building instal-
lation wiring. In some countries, the term "protective
grounding" is used instead of "protective earthing".
Earth and ground are used synonymously in this instal-
lation instruction. Choose installation tools that are safe
and suitable for its working environment. Electrical risks
can sometimes be eliminated by using air, hydraulic or
handpowered tools. These are especially useful in harsh
conditions.
System Components
To ensure optimum safety for user and environment,
only original system components available from SPM
Instrument should be used. When using non-original
components, the compliance with EU directive with re-
spect to electric safety, EMC, ATEX and machine safety
is not guaranteed by SPM Instrument.
Reapplying Power
For human safety, ensure that the electrical equipment
or installation is electrically safe. Before starting the
machine, make sure that all protection covers on the
machine are mounted and secured. Perform periodic
pressure testing to ensure enclosure is not leaking.
Rotating
parts
Intrinsic safety
earth
EU certified
equipment

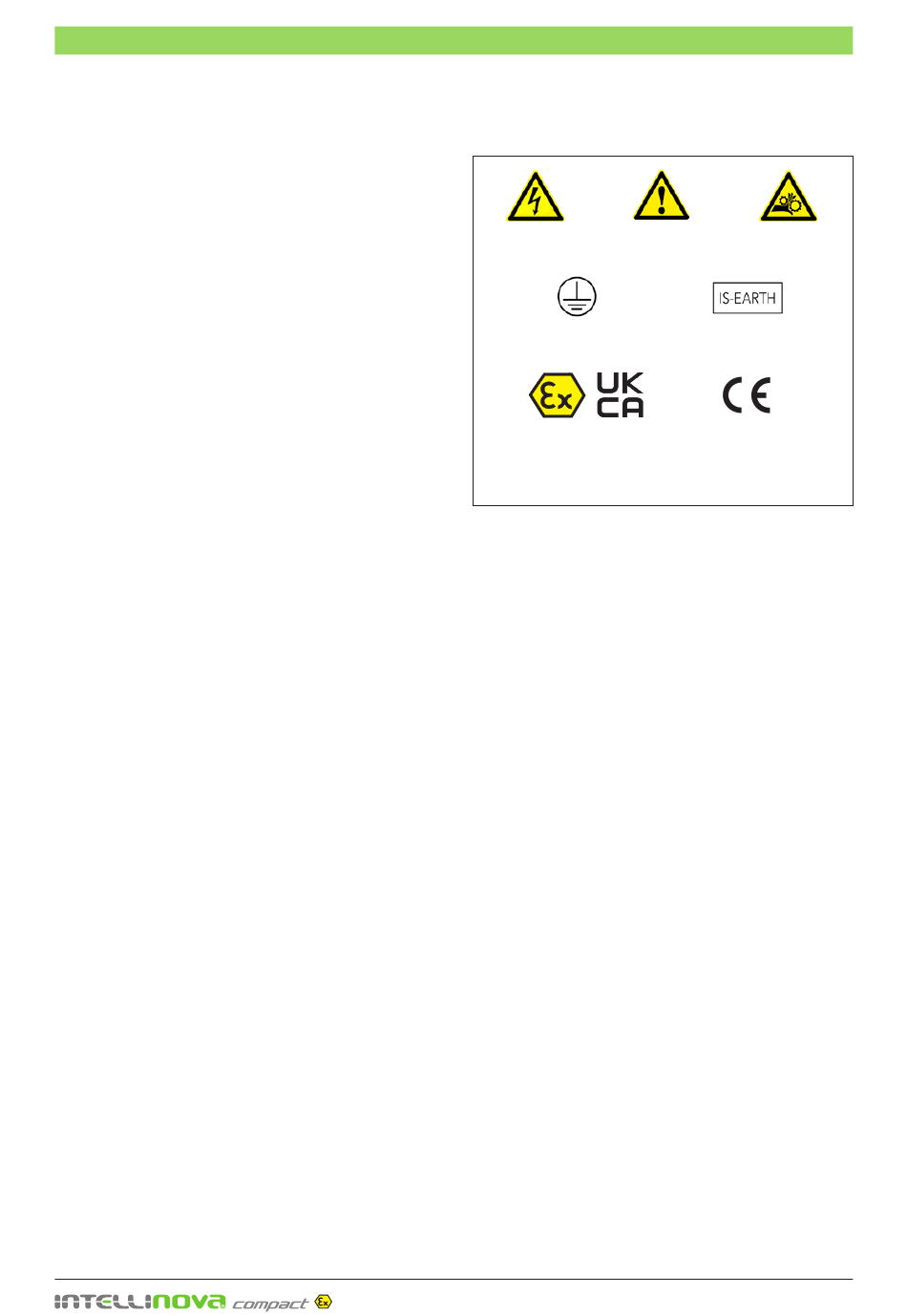

Symbols
