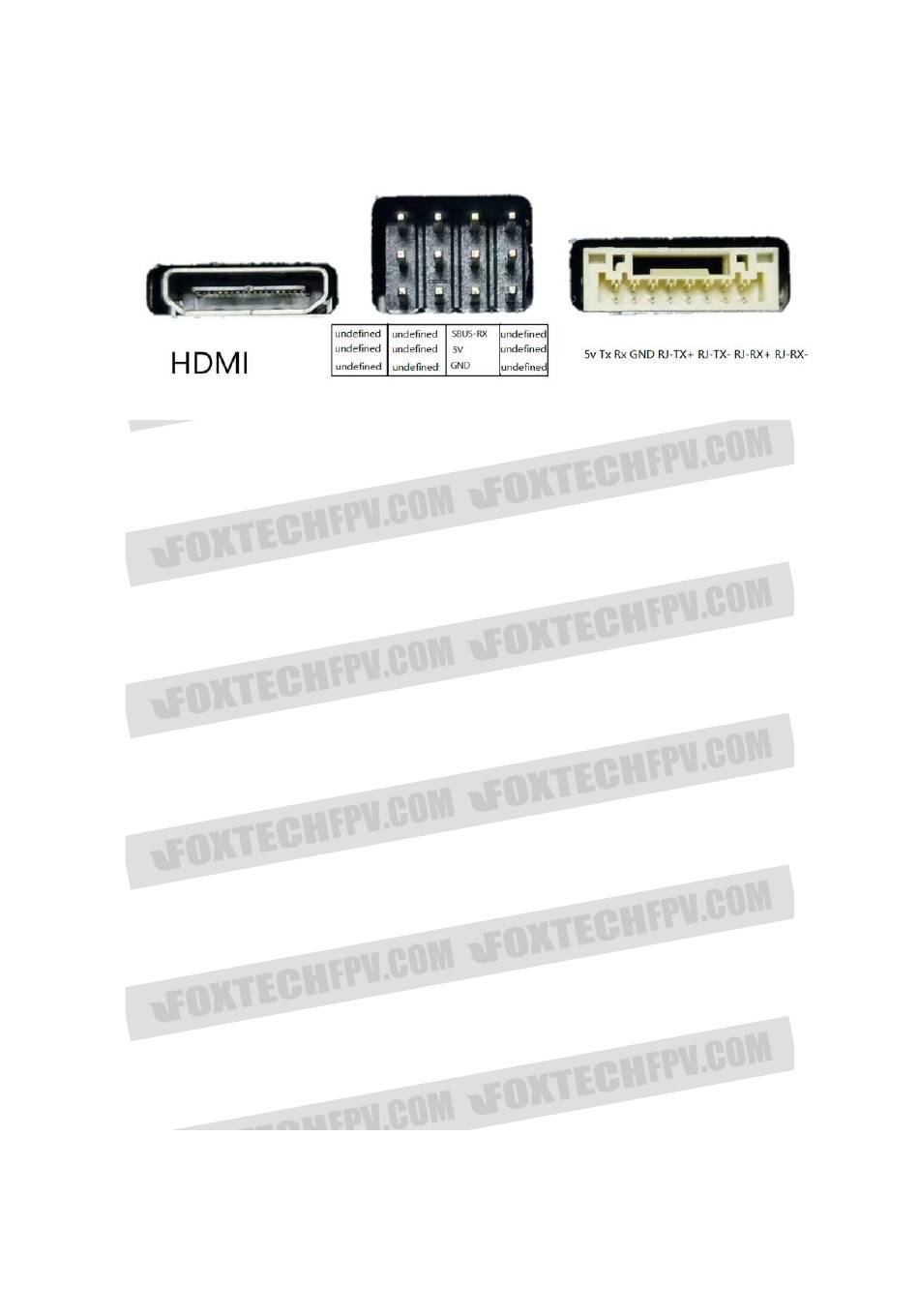

Connection Pin Description
1）RJ-TX+、RJ-TX- 、RJ-RX+ 、RJ-RX- for Ethernet，RJ-TX+ and RJ-TX- are pairs，
RJ-RX and RJ-RX- are pairs.
2）undefined for undefined pin.
3）GND for ground.
4）TX and RX for Serial command control.
5）SBUS for connection with SBUS signal receiver.
6）5V for out DC5v signal, use together with GND，for SUBUS receiver power.
7）Mini HDMI interface for output video.
