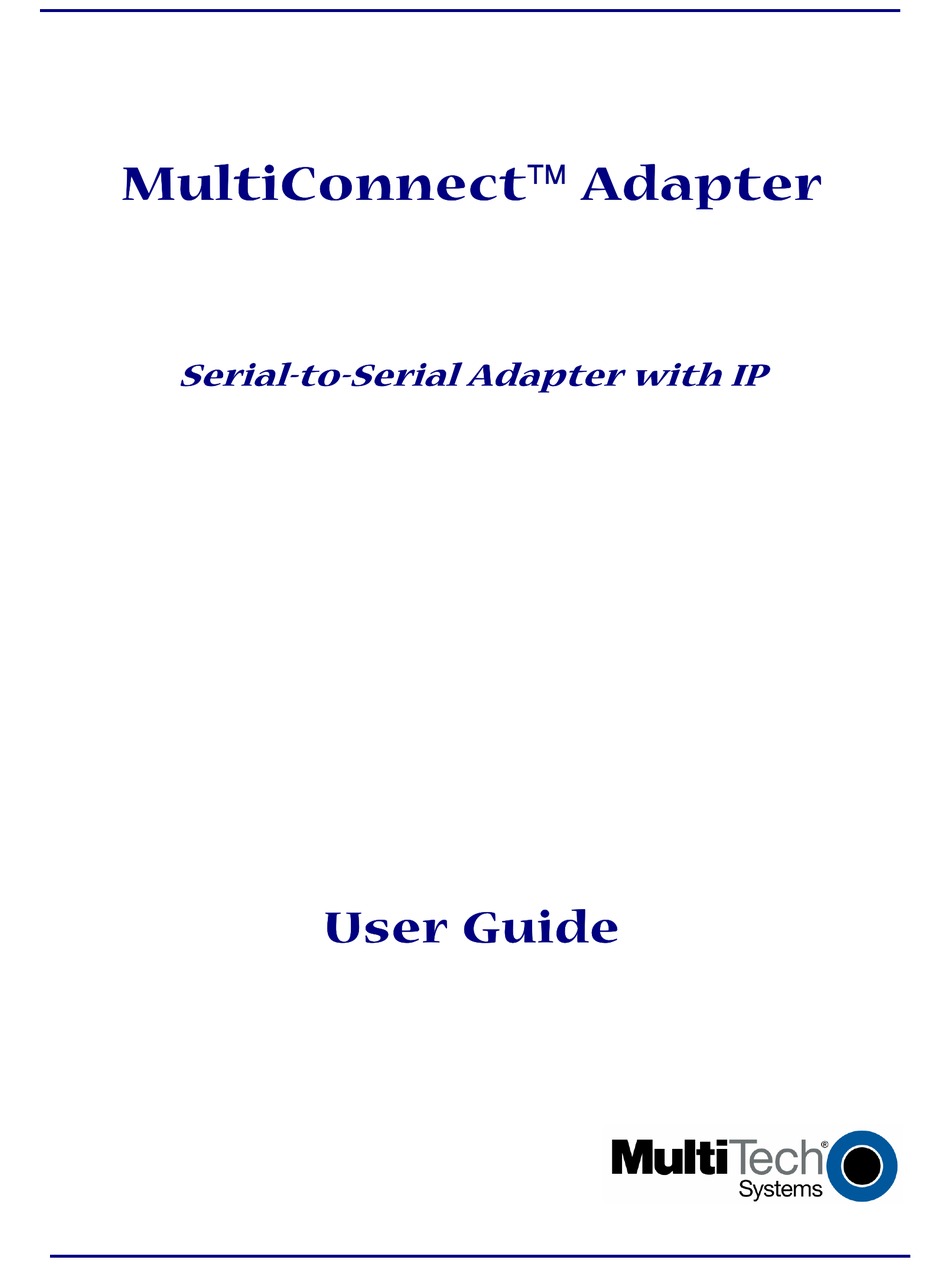

- Page 1 MultiConnect Adapter Serial-to-Serial Adapter with IP User Guide...
- Page 2 Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions or changes. Revisions...
-
Page 3: Table Of Contents
Chapter 2 – Installation...8 Attaching the MultiConnect to a Fixed Location ...8 Serial-to-Serial Adapter Installation...9 Connecting the Cables...9 Chapter 3 – Managing and Configuring the MultiConnect Adapter...11 Two Ways to Login...11 Login Using TTY ...11 Login Using Telnet through the PPP Interface ...11 About Command Mode and Data Mode...11... -
Page 4: Chapter 1 - Product Description & Specifications
MultiConnect actually provides faster time-to-market because it relieves the burden and expense of writing and maintaining Internet applications. The complete, ready-to-integrate MultiConnect adapter allows you to enhance your product while you focus on developing its core features. Management and Configuration. -
Page 5: Types Of Adapters Available
Although input protection circuitry has been incorporated into the devices to minimize the effect of this static buildup, proper precautions should be taken to avoid exposure to electrostatic discharge during handling and mounting. Multi-Tech Systems, Inc. MultiConnect Serial-to-Serial Adapter User Guide (S000354B) Chapter 1 – Product Description and Specifications... -
Page 6: Specifications
Flash memory to update firmware with the latest enhancements Flexible IP protocol stack Compact, rugged industrial chassis design Desktop or panel mounting Two-year warranty Multi-Tech Systems, Inc. MultiConnect Serial-to-Serial Adapter User Guide (S000354B) Chapter 1 – Product Description and Specifications @ 9V DC: Typical 240mA @ 5V DC:... -
Page 7: Led Indicators
Description Activity – Lit when data is being transmitted or received. Status – Blinks to indicate that the unit is functioning. Multi-Tech Systems, Inc. MultiConnect Serial-to-Serial Adapter User Guide (S000354B) Chapter 1 – Product Description and Specifications DHCP Client: Request IP address for Ethernet Interfaces... -
Page 8: Chapter 2 - Installation
Attaching the MultiConnect to a Fixed Location The MultiConnect adapter is design to be used on the desktop or to be panel-mounted. To attach the bracket for panel-mounting, following these steps: Typically, the MultiConnect adapter is mounted against a flat surface with two mounting screws. Drill the mounting holes at the desired location. -
Page 9: Serial-To-Serial Adapter Installation
Powered in one of two ways: Powered by External Power Supply Powered through RS-232 Cable (Pin 6) MTS2SA-T MTS2SA-T-R Adapter RS-232 Connector Adapter RS-232 Connector Adapter RS-232 & External Power Connectors Adapter RS-232 Power Pin Connector Multi-Tech Systems, Inc. MultiConnect Serial-to-Serial Adapter User Guide (S000354B) - Page 10 Pin 3 TX Pin 4 DTR Pin 5 GND Pin 6 DSR Pin 7 RTS Pin 8 CTS Pin 9 RI Multi-Tech Systems, Inc. MultiConnect Serial-to-Serial Adapter User Guide (S000354B) Multi-Tech Adapter Female Connector Typical 190mA Maximum 245mA Typical 100mA...
-
Page 11: Chapter 3 - Managing And Configuring The Multiconnect Adapter
To leave Command Mode, exit your terminal or Telnet session or type the word Exit at the command prompt. Note: See the Restore command and IP Escape String command. Multi-Tech Systems, Inc. MultiConnect Serial-to-Serial Adapter User Guide (S000354B) Chapter 3 – Managing and Configuring the MultiConnect Adapter Adapter... -
Page 12: Chapter 4 - Command Line Interface And Application Examples
Application Examples See the separate Command Line Interface and Application Examples guide. The guide includes the commands and examples for managing and configuring your MultiConnect Adapter. For your convenience, we have also provided a reference guide of modem AT commands. -
Page 13: Chapter 5 - Setting Country Or Region Codes Using The Cli
Tech currently supports is available on the Multi-Tech Web site at: http://www.multitech.com/PRODUCTS/Categories/External_Device_Networking/global_modems/configuration.asp #chart Multi-Tech Systems, Inc. MultiConnect Serial-to-Serial Adapter User Guide (S000354B) Chapter 5 – Setting Country or Region Codes Using the CLI There is no validation on the country/region code value. -
Page 14: Chapter 6 - Flash Upgrade
Chapter 6 – Flash Upgrade Introduction The MultiConnect Adapter contains a 2 MB flash wherein the boot image, the firmware and configuration files are stored in a compressed format. Serial Flash Upgrade Scenario Following steps explain the procedure to upgrade a flash using the serial COM port (serial flash upgrade). -
Page 15: Appendix A - Regulatory Information
Council Directive 73/23/EEC of 19 February 1973 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits. Multi-Tech Systems, Inc. MultiConnect Serial-to-Serial Adapter User Guide (S000354B) Information Appendix A – Regulatory Information... -
Page 16: Appendix B - Warranty And Service
Multi-Tech Warranty Statement Multi-Tech Systems, Inc., (hereafter “MTS”) warrants that its products will be free from defects in material or workmanship for a period of two, five, or ten years (depending on model) from date of purchase, or if proof of purchase is not provided, two, five, or ten years (depending on model) from date of shipment. -
Page 17: Repair Procedures For International Distributors
You can place an order with SupplyNet via mail, phone, fax or the Internet at the following addresses: Mail: SupplyNet, Inc. 614 Corporate Way Valley Cottage, NY 10989 Phone: 800 826-0279 Fax: 914 267-2420 Email: info@thesupplynet.com Internet: http://www.thesupplynet.com Multi-Tech Systems, Inc. MultiConnect Serial-to-Serial Adapter User Guide (S000354B) Appendix B – Warranty and Service... -
Page 18: Index
EMC, Safety, and Directive Compliance ...15 Flash Upgrade Scenario 1 ...14 Handling Precautions ...5 Installation ...8 Internet Applications...7 Multi-Tech Systems, Inc. MultiConnect Serial-to-Serial Adapter User Guide (S000354B) Index IP Serial Setup Commands set serial modem country code value...13 show serial modem country code...13 Login using Telnet...11...
