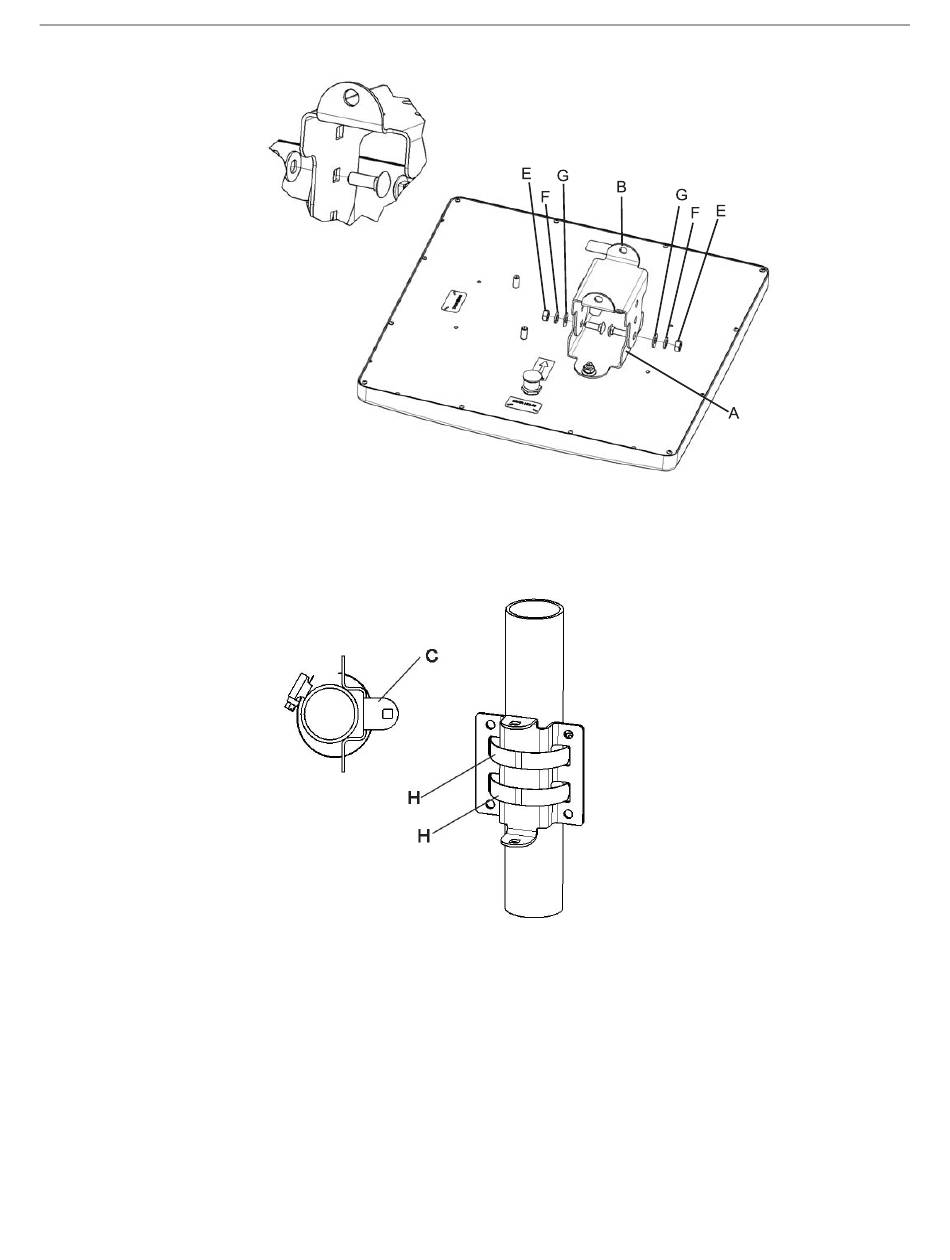

Figure 3-63

Attaching Elevation Bracket

5. Attach the azimuth adjustable bracket (C) to the pipe, using the routing band clamps (H) as
shown in Figure 3-64. Pipe clamp recommended torque is 43 – 51 in-lbf (4.9 – 5.8 Nm).
Figure 3-64

Attaching Azimuth Bracket to Pipe

6. Attach the antenna assembly to the azimuth bracket on the pipe as shown in
page 3-54.
Enterasys Wireless External Antenna Site Preparation and Installation Guide 3-53
Mounting the Antenna
Figure 3-65 on
