Mounting The Antenna On A Wall - Enterasys AP2620 Site Preparation And Installation Manual

1. Connect the base bracket as shown in
2. Connect the arm bracket (item 5) to the antenna base bracket (item 1) (mate-knurled surfaces)
using items 6, 7, 8, and 9. Position the bolt head in the socket of the base bracket (item 1). See
Figure 3-42 on page 3-37.
3. Mount the wall/pole bracket (item 10) on the wall in the desired position, noting the azimuth
axis orientation.
4. Attach the arm bracket (item 5) to the wall/pole bracket (item 10) (mate the knurled surfaces)
using items 6, 7, 8, and 9 as shown.
5. Position the bolt in the socket of the arm bracket (item 5).
6. Use a tightening torque of 24 N/m to the azimuth and elevation hardware.

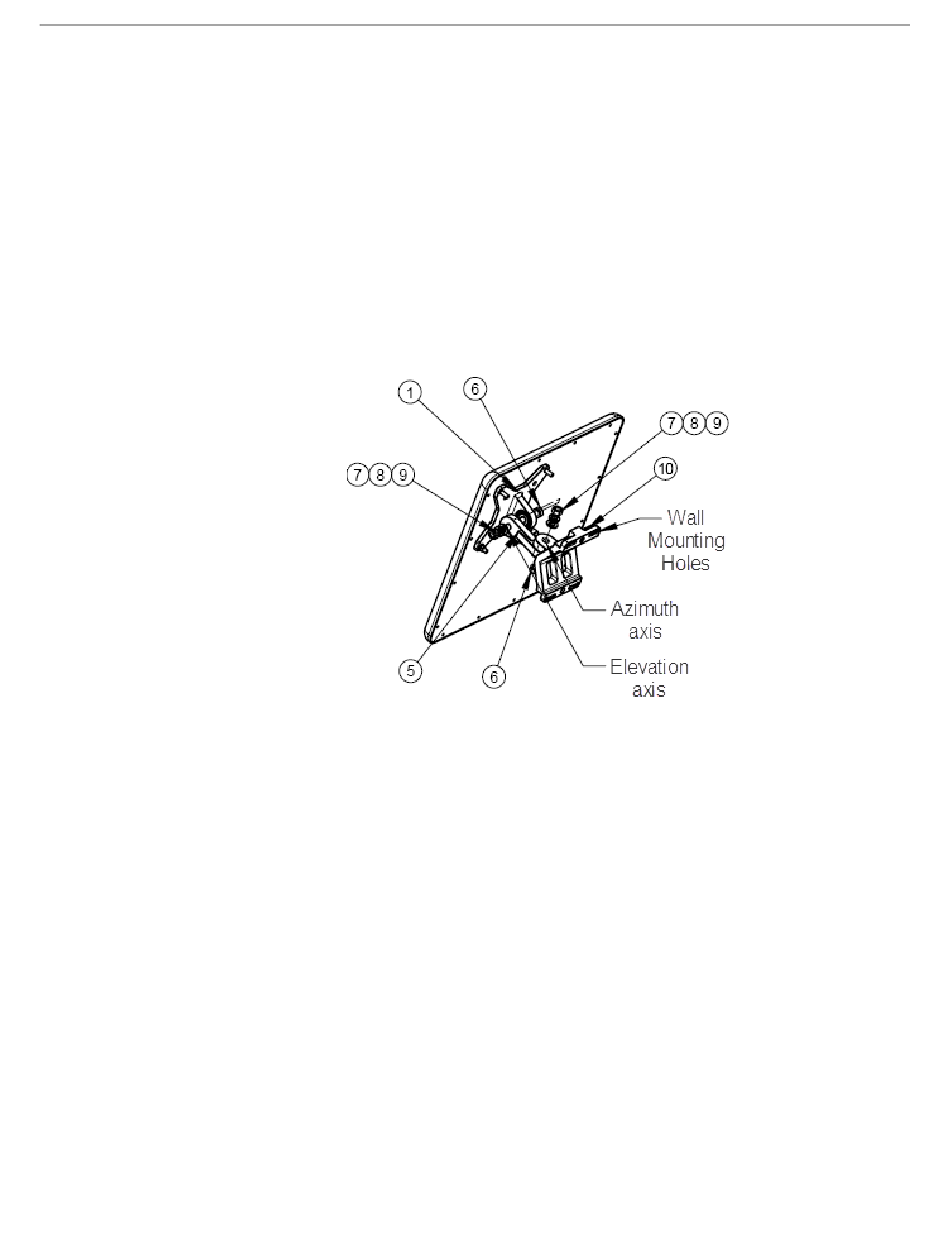

Figure 3-42

Mounting the Antenna on a Wall

Figure 3-38 on page 3-34.
Enterasys Wireless External Antenna Site Preparation and Installation Guide 3-37
Mounting the Antenna
