WS-AIO-5S17017

Specifications

Table A-16 WS-AIO-5S17017 Specifications
Specification
Frequency
Gain
VSWR
Polarization
Azimuth (3 dB beamwidth)
Elevation (3 dB beamwidth)
Mounting Style
Power
Dimensions

Radiation Patterns

In Figure A-36, the E-plane pattern is blue and the H-plane pattern is red.
Figure A-36
Value
5.47–5.85 GHz
17 dBi (nominal)
1.5:1
Linear Vertical
17°
17°
Wall/Mast
10 watts
6.7 in x 6.7 in x 1.9 in (171 mm x 171mm x 48 mm)

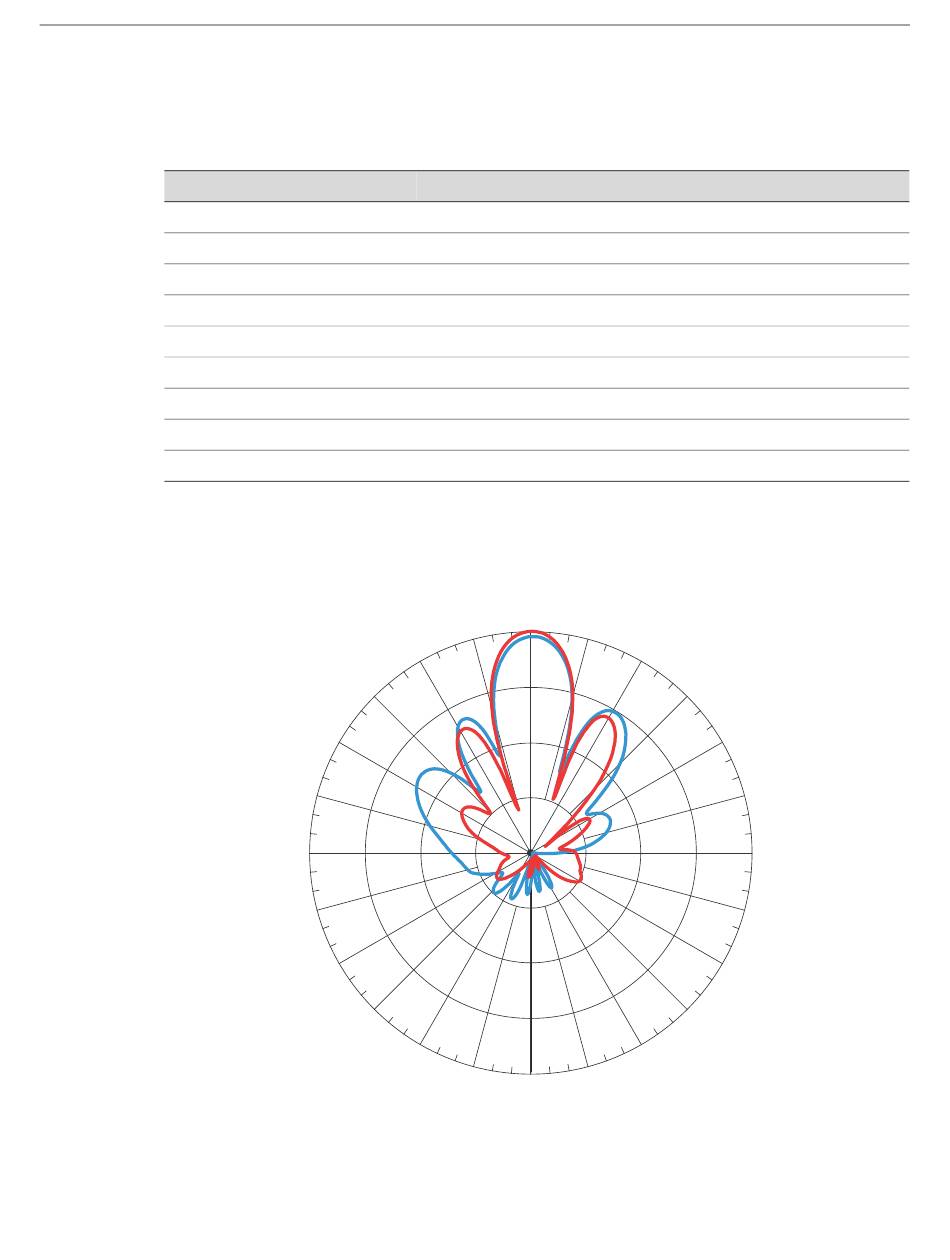

WS-AIO-5S17017 5.66 GHz E-Plane and H-Plane Radiation Patterns
