2. Install the antenna on the tile support rail as shown in

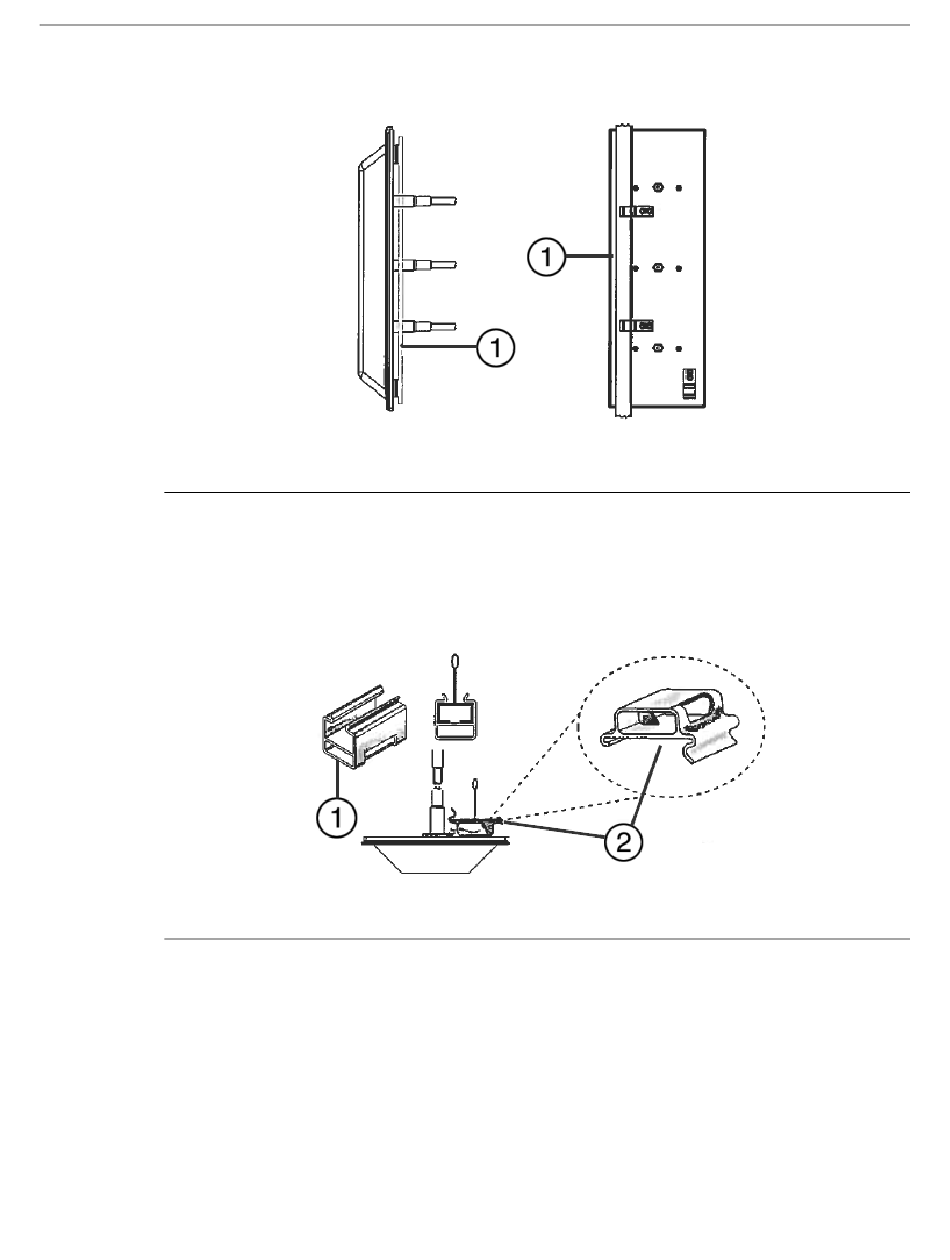

Figure 3-44

Installing on Ceiling Support Rails

1 Ceiling grid I-beam
For installations using recessed edge tiles:
1. Use the supplied plastic recessed tile adapter clips. Snap the clips onto the ceiling tile grid.
2. Mount the antenna to the clips as shown in
Figure 3-45

Mounting the Antenna Clips

1 Rectangular profile clip
For 9/16" rectangular profile grid, install the supplied clips in the same manner.
Figure
2 Recessed tile grid clip
Enterasys Wireless External Antenna Site Preparation and Installation Guide 3-39
Figure 3-44.
3-45.
Mounting the Antenna
