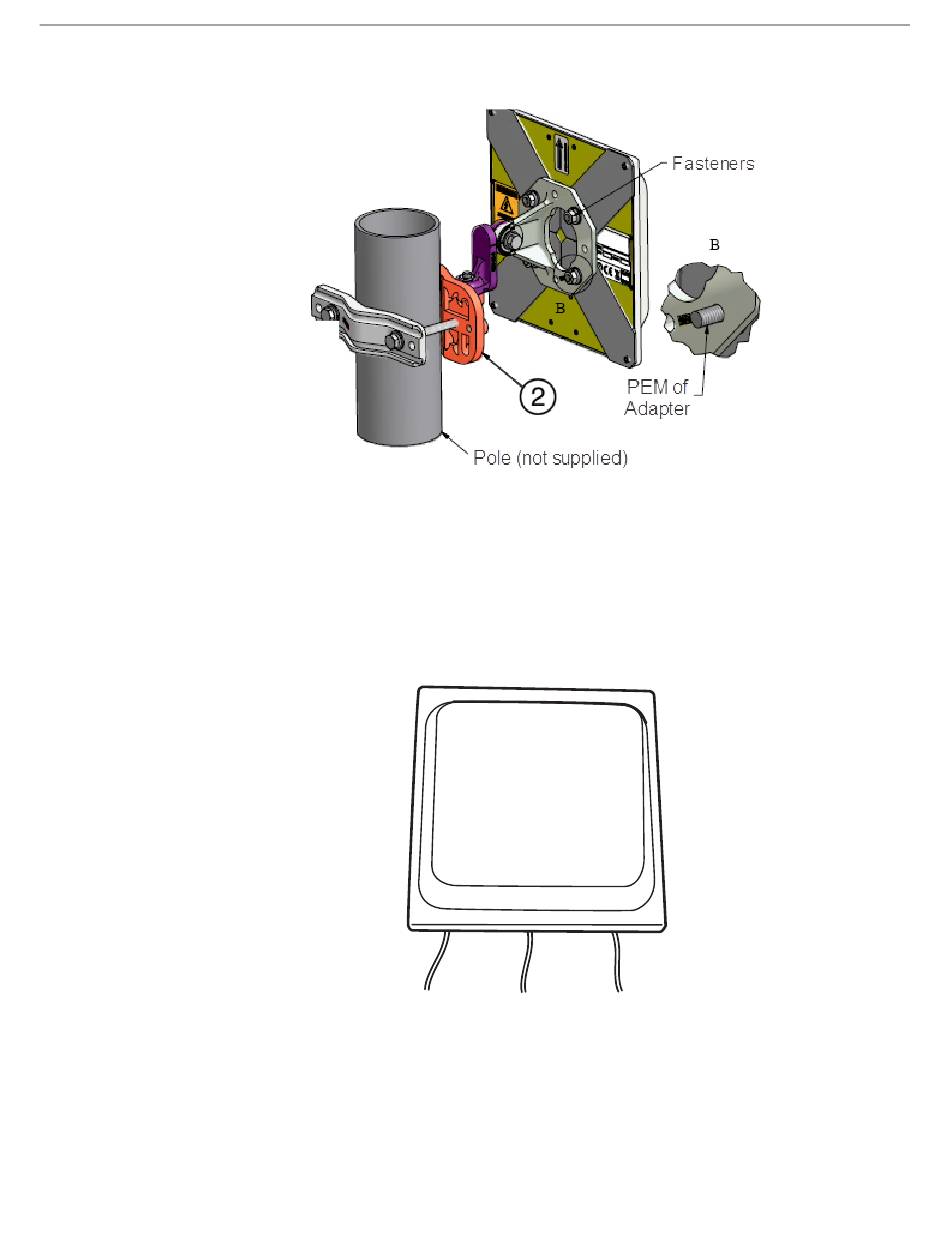

Figure 3-50
Mounting the WS-AI-DT05120 Antenna on a Pole
Mounting Antenna Model WS-AO-DT05120 and WS-AO-DT05120-1
The WS-AO-DT05120 and WS-AO-DT05120-1 are 2.4 and 5 GHz dual-band sector antennas that
can be mounted in an outdoor location. Each has three connectors and is especially designed for
MIMO APs.
Figure 3-51
DT05120 and WS-AO-DT05120-1 antennas can also be mounted on a wall or on a pole.
Figure 3-51
WS-AO-DT05120 and WS-AO-DT05120-1 Antennas
Mounting the WS-AO-DT05120 and WS-AO-DT05120-1 Antennas on a Wall
Figure 3-52
on page 3-44 shows how to mount the WS-AO-DT05120 and WS-AO-DT05120-1
antennas on a
wall.Table 3-8
WS-AO-DT05120-1 antennas.
shows a WS-AO-DT05120 and WS-AO-DT05120-1 antenna.The WS-AO-
on page 3-44 shows the mounting kit for the WS-AO-DT05120 and
Enterasys Wireless External Antenna Site Preparation and Installation Guide 3-43
