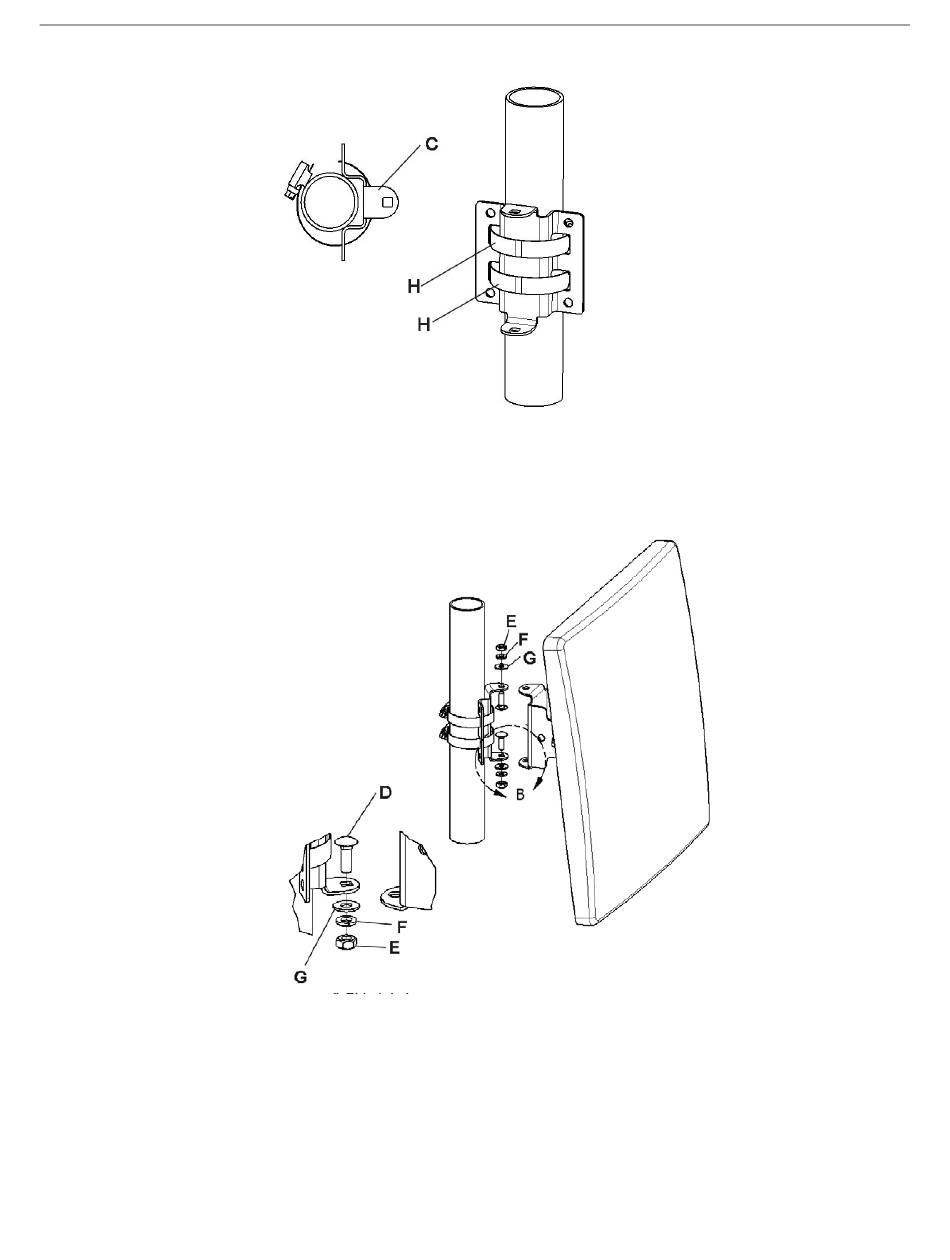

Figure 3-73

Attaching Azimuth Bracket to Pipe

6. Attach the antenna assembly to the azimuth bracket on the pipe as shown in
page 3-59.
Figure 3-74

Attaching Antenna Assembly to Azimuth Bracket

7. Adjust to the desired azimuth and elevation angles and tighten all pivot hardware (4 places).
The bracket is adjustable for lower profiles off the pipe, as shown in
Enterasys Wireless External Antenna Site Preparation and Installation Guide 3-59
Mounting the Antenna
Figure 3-74 on
Figure 3-75.
