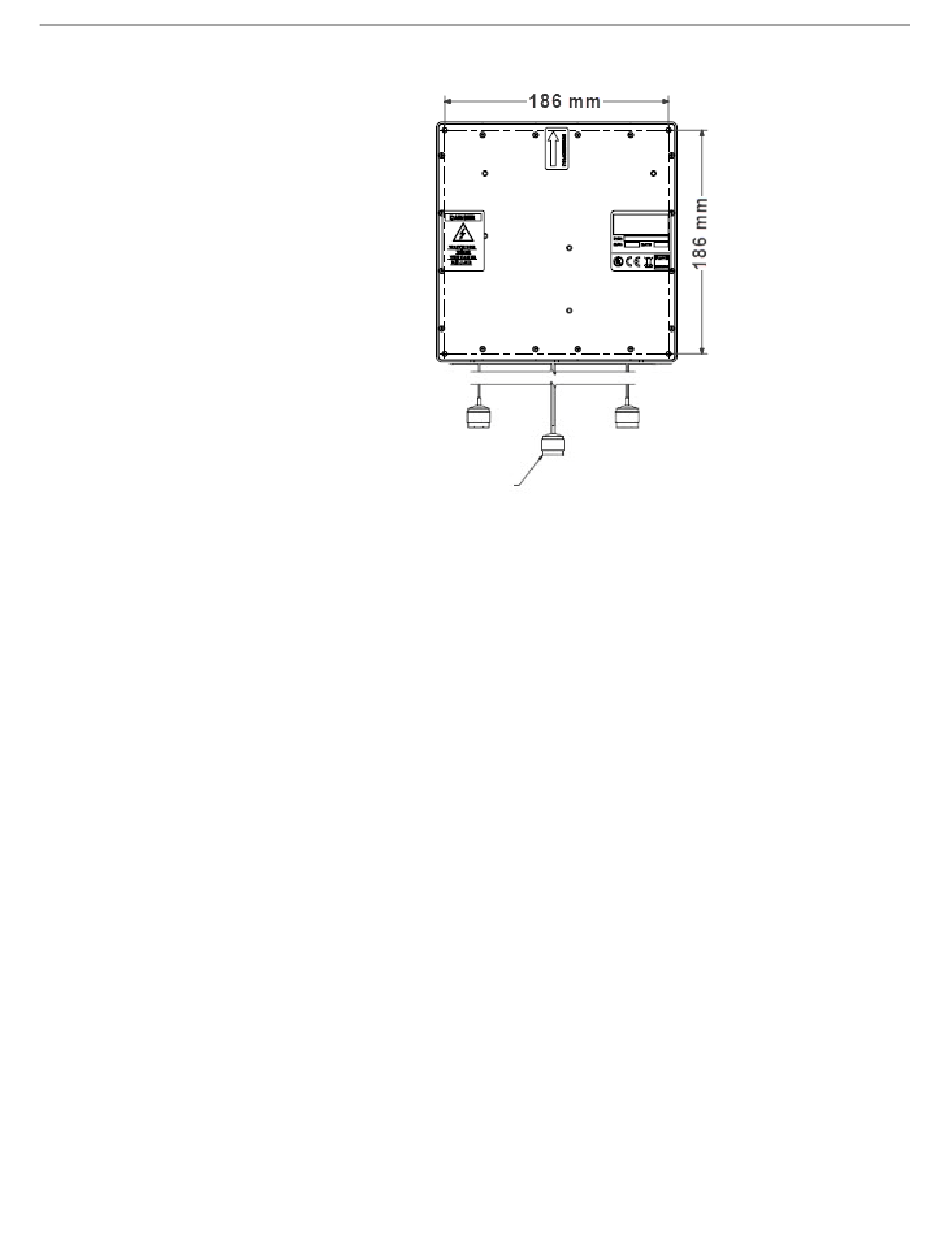

Figure 3-53
WS-AO-DT05120 and WS-AO-DT05120-1 Antenna Drilling Template
Cables RG316 L=32 inches
with connectors (Type-N plug RP)
2.
Put plastic inserts (item 2) into the holes in the wall.
3.
With the antenna polarization arrow directed up, fit the bracing holes of the antenna (item 1)
to the holes in the plastic inserts.
4.
Secure the antennas in the plastic wall inserts with items 3 and 4.
Mounting the WS-AO-DT05120 and WS-AO-DT05120-1 Antennas on a Pole
Figure 3-54
shows how to mount the adapters on the WS-AO-DT05120 and WS-AO-DT05120-1
antennas.
Table 3-9
lists the parts provided with the WS-AO-DT05120 and WS-AO-DT05120-1
antennas.
Figure 3-55
on page 3-47 shows how to mount the WS-AO-DT05120 and WS-AO-
DT05120-1 antennas on a pole.
Enterasys Wireless External Antenna Site Preparation and Installation Guide 3-45
Mounting the Antenna
