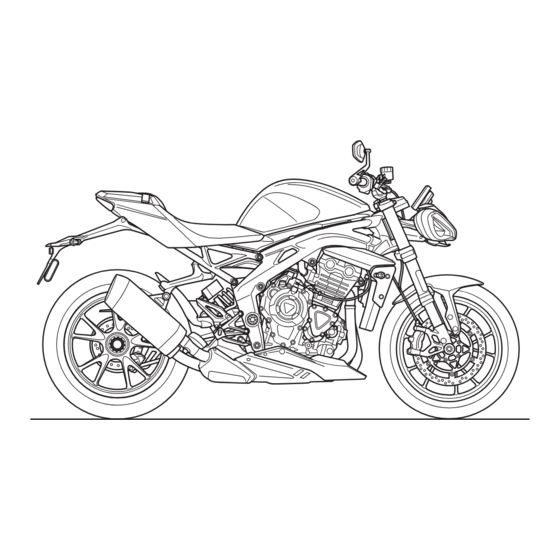

OWNER'S HANDBOOK
01
Speed Triple 1200 RR and Speed Triple 1200 RS
This handbook contains information on the Triumph Speed Triple 1200 RR and Speed Triple 1200 RS motorcycles.
Always store this Owner's Handbook with the motorcycle and refer to it for information whenever necessary.
The information contained in this publication is based on the latest information available at the time of printing.
Triumph reserves the right to make changes at any time without prior notice, or obligation.
Not to be reproduced wholly or in part without the written permission of Triumph Motorcycles Limited.
© Copyright 02.2022 Triumph Motorcycles Limited, Hinckley, Leicestershire, England.
Publication part number 3850194-US-EN issue 1

Advertisement

Table of Contents
loading

Related Manuals for Triumph Speed Triple 1200 RR 2022

Summary of Contents for Triumph Speed Triple 1200 RR 2022

  • Page 1 Speed Triple 1200 RR and Speed Triple 1200 RS This handbook contains information on the Triumph Speed Triple 1200 RR and Speed Triple 1200 RS motorcycles. Always store this Owner’s Handbook with the motorcycle and refer to it for information whenever necessary.
  • Page 2 CONTENTS This handbook contains a number of different sections. The table of contents below will help you find the beginning of each section where, in the case of the major sections, a further table of contents will help you find the specific subject required. FOREWORD SAFETY FIRST WARNING LABELS...
  • Page 3 Triumph motorcycle correctly. locate your nearest authorized Triumph dealer, visit the Triumph web site at www. triumph. co. uk or telephone authorized distributor your country. Their address is given in the service record book that accompanies this handbook.
  • Page 4 Removal puncturing ▼ muffler, baffles, header pipes or any other component which conducts Thank you for choosing a Triumph exhaust gases. motorcycle. This motorcycle Removal of or puncturing of any ▼ product of Triumph's use of proven part of the intake system.
  • Page 5 Talk to Triumph This Owner's Handbook is available from your local dealer in: Our relationship with you does not end English with the purchase of your Triumph. Your ▼ feedback on the buying and ownership US English ▼ experience is very important in helping Arabic ▼...
  • Page 6 FOREWORD This page intentionally left blank...
  • Page 7 SAFETY FIRST The Motorcycle Warning Warning This motorcycle is designed for use as a two-wheeled vehicle capable of This motorcycle is designed for on- carrying a rider on their own. road use only. It is not suitable for off- total weight rider, road use.
  • Page 8 SAFETY FIRST Fuel and Exhaust Fumes Helmet and Clothing Warning GASOLINE IS HIGHLY FLAMMABLE: Always turn off the engine when refueling. Warning Do not refuel or open the fuel filler cap while smoking or in the vicinity of any When riding the motorcycle, both open (naked) flame.
  • Page 9 SAFETY FIRST Parking Warning Warning A helmet is one of the most important pieces of riding gear as it offers Always switch off the engine and protection against head injuries. You remove ignition before and your passenger's helmet should leaving the motorcycle unattended. be carefully chosen and should fit you By removing the key, the risk of use or your passenger's head comfortably...
  • Page 10 Incorrect or improper modification may adversely affect the handling, stability or other aspect of the motorcycle Triumph does not accept any liability operation, which may result in an whatsoever for defects caused by the accident causing injury or death.
  • Page 11 SAFETY FIRST Riding Warning Warning This Triumph motorcycle should be operated within the legal speed limits Never ride motorcycle when for the particular road traveled. fatigued or under the influence of Operating a motorcycle at high speeds alcohol or other drugs.
  • Page 12 SAFETY FIRST Handlebars and Footrests Wobble/Weave A weave is a relatively slow oscillation of the rear of the motorcycle, while Warning a wobble is a rapid, possibly strong The rider must maintain control of the shaking of the handlebar. These are motorcycle by keeping hands on the related but distinct stability problems handlebars at all times.
  • Page 13 SAFETY FIRST Warning Warning Always make sure that the passenger Always replace bank angle footrests are fully extended when indicators before they are worn to carrying a passenger. their maximum limit. Never carry a passenger without them Use of a motorcycle with bank angle using the fully extended passenger indicators worn beyond the maximum footrests.
  • Page 14 WARNING LABELS Warning Label Locations The labels detailed on this and the following pages draw your attention to important safety information in this handbook. Before riding, make sure that all riders have understood and complied with all the information to which these labels relate. For illustration purposes, Speed Triple 1200 RR is shown.
  • Page 15 WARNING LABELS Warning Label Locations (continued) Caution All warning labels and decals, with the exception of the Breaking-in label, are mounted on the motorcycle using a strong adhesive. In some cases, labels are installed prior to an application of paint lacquer. Therefore, any attempt to remove the warning labels will cause damage to the paintwork or bodywork.
  • Page 16 PARTS IDENTIFICATION For illustration purposes, Speed Triple 1200 RS is shown. Drive chain Headlight Front turn signal 10. Side stand Fuel filler cap Gear shift pedal Fuel tank 12. Oil filter Rear suspension unit 13. Coolant expansion tank (tools attached to cover) Tail light 14.
  • Page 17 PARTS IDENTIFICATION Parts Identification - Continued Rear seat/seat cowl fastener Clutch cable Battery (under seat) Oil filler cap Main and rear fuse boxes (under seat) 10. Rear brake pedal Front fuse box (under fuel tank) Muffler Accessory socket 12. Rear brake caliper Front brake fluid reservoir 13.
  • Page 18 RIDER VIEW PARTS IDENTIFICATION For illustration purposes, Speed Triple 1200 RS is shown. Clutch lever Hazard warning lights switch High beam/pass button Front brake lever 10. Engine start/stop switch Daytime Running Lights (DRL) switch Cruise control adjust button Home button Mode button 12.
  • Page 19 SERIAL NUMBERS Vehicle Identification Number (VIN) Engine Serial Number Vehicle identification number Engine serial number The Vehicle Identification Number (VIN) The engine serial number is stamped is stamped into the right hand side of on the engine crankcase, immediately the steering head area of the frame. above the clutch cover.
  • Page 20 SERIAL NUMBERS This page intentionally left blank...

  • Page 21: Table Of Contents

    GENERAL INFORMATION Table of Contents Keys Smart Key Smart Key Battery Replacement Keyless Ignition Master Ignition Switch (if equipped) Instruments Instrument Panel Layout Warning Lights Warning and Information Messages Odometer and Speedometer Tachometer Fuel Gauge Coolant Temperature Gage Ambient Air Temperature Gear Position Display Display Navigation Riding Modes...
  • Page 22 GENERAL INFORMATION Cruise Control Activating Cruise Control Adjusting the Set Speed While in Cruise Control Deactivating Cruise Control Resuming the Cruise Control Set Speed Traction Control (TC) Traction Control Settings Tire Pressure Monitoring System (TPMS) (if equipped) Tire Pressures Tire Pressure Sensor Batteries Tire Pressure Sensor Serial Number Replacement Tires Fuel...

  • Page 23: Keys

    Smart key The smart key operates the keyless ignition system. An additional smart key can be purchased from your Triumph dealer. However, only three keys can be programmed to the motorcycle. This can be a combination of smart keys and...

  • Page 24: Smart Key Battery Replacement

    To replace the smart key battery: the smart key battery is flat then take Make sure that the smart key is in ▼ the smart key to the nearest Triumph passive mode (red LED). dealer to rectify. Remove the battery cover fastener ▼...

  • Page 25: Keyless Ignition

    GENERAL INFORMATION Keyless Ignition Press the ON/OFF button on the ▼ smart key to turn the key on. The The keyless ignition system allows the status symbol light shows green motorcycle to be started without the briefly to indicate that the smart use of a mechanical key.

  • Page 26: Master Ignition Switch (If Equipped)

    GENERAL INFORMATION Master Ignition Switch The key needs to be held within ▼ +/-0.39 in (10 mm) of the system (if equipped) sensor. Take care not to damage the motorcycle paint work. 10 mm 10 mm Master Ignition Switch Right hand rear panel The master ignition switch is only System sensor mounted to motorcycles in the United...

  • Page 27: Instruments

    GENERAL INFORMATION Instruments Table of Contents Instrument Panel Layout Warning Lights Warning and Information Messages Odometer and Speedometer Tachometer Fuel Gauge Coolant Temperature Gage Ambient Air Temperature Gear Position Display Display Navigation Riding Modes Main Menu...

  • Page 28: Instrument Panel Layout

    GENERAL INFORMATION Instrument Panel Layout The motorcycle is installed with a full color Thin Film Transistor (TFT) instrument display with a 5 inch (12.7 cm) screen. Some items and symbols may move location depending on the screen layout for different scenarios. 9 10 12:34 Clock...

  • Page 29: Warning Lights

    GENERAL INFORMATION Warning Lights If the MIL flashes when the ignition is switched ON contact an authorized Triumph dealer as soon as possible to Caution have the situation rectified. In these If a red warning light is shown then circumstances the engine will not start.
  • Page 30 GENERAL INFORMATION Immobilizer/Alarm Indicator Light If the ABS warning light is constantly illuminated it indicates that the ABS This Triumph motorcycle is equipped function is not available because: with an engine immobilizer which is The ABS has been disabled by the activated when the ignition switch is ▼...
  • Page 31 Indicator Light (MIL) and traction control warning lights illuminated. Hazard Warning Lights Contact an authorized Triumph dealer as soon as possible to have the fault To turn the hazard warning lights on checked. or off, press and release the hazard warning light switch.
  • Page 32 GENERAL INFORMATION If daytime running lights are installed on Warning the motorcycle, the high beam button has additional functionality. Do not ride for longer than necessary If the DRL switch is in the daytime in poor ambient light conditions with running lights position, then press and the Daytime Running Lights (DRL) in hold the high beam button to turn the...

  • Page 33: Warning And Information Messages

    GENERAL INFORMATION Warning and Information Messages The tire pressure warning light works with the Tire It is possible for multiple warning and Pressure Monitoring System information messages to be shown (TPMS), see page 71. when a fault occurs. Where this is the case, warning messages will take The warning light will illuminate when priority over information messages and...

  • Page 34: Odometer And Speedometer

    GENERAL INFORMATION Odometer and Speedometer The following warning and information messages may be shown if a fault is The speedometer indicates the road detected on the motorcycle. speed of the motorcycle. Symbol Warning Message 12:34 °C LOW OIL PRESSURE - CHECK MANUAL (red indicator) STARTER MOTOR DISABLED - CONTACT DEALER (red indicator)

  • Page 35: Tachometer

    GENERAL INFORMATION Tachometer With the ignition switched on, the fuel remaining in the fuel tank is indicated The tachometer shows the engine by the amount of gage segments that speed in revolutions per minute - rpm are shown full. (r/min). At the end of the tachometer When the fuel tank is full, all gage range there is the red zone.

  • Page 36: Ambient Air Temperature

    GENERAL INFORMATION normal temperature range Once the motorcycle starts moving the between the Low and High on the display will return to normal after a coolant temperature gage. short time. With engine running, 12:34 °C engine coolant temperature becomes dangerously high, the high coolant temperature warning light will illuminate in the warning light location and a warning message will be shown.

  • Page 37: Gear Position Display

    GENERAL INFORMATION Display Navigation frost symbol will table below describes illuminate if the ambient air instrument icons and buttons used to temperature is 39°F (4°C) or navigate through the instrument menus lower. described in this handbook. The frost symbol will remain illuminated until the temperature rises to 42°F (6°C).
  • Page 38 GENERAL INFORMATION Riding Mode Selection If a riding mode is edited (other than the RIDER mode), the icon will change as shown below. Warning Rider Edited The selection of riding modes while the Description Default Icon Icon motorcycle is in motion requires the rider to allow the motorcycle to coast RAIN (motorcycle moving, engine running,...
  • Page 39 GENERAL INFORMATION Note Warning The riding mode will default to ROAD when the ignition is switched ON, if the After selecting a riding mode, operate RIDER mode was active the last time the the motorcycle in an area free from ignition was switched OFF with TC set to traffic to gain familiarity with the new OFF in the required mode.
  • Page 40 GENERAL INFORMATION To change the selected riding mode: riding mode change completed, the riding mode icon will Press the joystick down or up, or ▼ alternate between the previous riding repeatedly press the MODE button mode and the newly selected riding until the required riding mode is mode until the change is complete or it highlighted in the center of the...
  • Page 41 GENERAL INFORMATION Riding Mode Configuration Riding Mode Configuration Options RIDER TRACK RAIN ROAD SPORT ON ROAD TRACK Anti-lock Braking System (ABS) Road Track MAP (Throttle Response) Rain Road Sport Traction Control (TC) Rain Road Sport Track Suspension (Speed Triple 1200 RR Only) Comfort Normal Dynamic...
  • Page 42 GENERAL INFORMATION ABS Settings Warning If the ABS is disabled, the brake system will function as a non-ABS braking system. In this situation braking too hard will cause the wheels to lock, and may result in loss of motorcycle control and an accident. ABS Settings Descriptions Optimal ABS setting for road use.
  • Page 43 GENERAL INFORMATION Traction Control Settings Warning If the traction control is disabled, the motorcycle will handle as normal but without traction control. In this situation accelerating too hard on wet/slippery road surfaces may cause the rear wheel to slip which may result in loss of motorcycle control and an accident. Traction Control Settings Descriptions ROAD Optimal traction control setting for road use.

  • Page 44: Main Menu

    Bluetooth® (if equipped) This menu allows configuration of the Bluetooth® connectivity. For more information, see the My Triumph Connectivity Handbook. The My Triumph Connectivity Handbook is also available on the Internet at: https:// www. triumphinstructions. com/ Enter the part number 'A9820200' into the search field to access the handbook.
  • Page 45 GENERAL INFORMATION Display Menu To adjust the brightness of the display screen: The Display menu allows configuration Push joystick down/up of the different display screen options. ▼ decrease/increase level brightness. 12:34 °C Display When the brightness level is set to ▼...
  • Page 46 GENERAL INFORMATION Display - Language Display - Units Language menu allows The Units menu allows the selection of a preferred language to be shown as the preferred unit of measurement. instrument display language. 12:34 °C 12:34 °C English (UK) Distance Miles Francais Economy...
  • Page 47 GENERAL INFORMATION Display - Date and Time Display - Shift Indicator The Date and Time option allows the The Shift Indicator menu allows the date and time to be adjusted. adjustment of the gear shift indicator. 12:34 12:34 °C °C 25 06 2021 Disabled Date Format...
  • Page 48 GENERAL INFORMATION Display - Rider Name Bike Menu The Rider Name display allows the The Bike menu allows configuration of rider name to be entered in to the the different features of the motorcycle. instrument panel system and shown in 12:34 the welcome/start up display screen.
  • Page 49 GENERAL INFORMATION Bike - Riding Aids Bike - TPMS (if equipped) Riding Aids menu allows Warning configuration of the current riding mode while the motorcycle is in motion. Stop motorcycle tire For information on the available options pressure warning light illuminates. for each riding mode, see page 41.
  • Page 50 GENERAL INFORMATION Bike - Suspension Adaptive Settings The following screen is shown if an The Suspension menu option is only adaptive suspension setting is selected; available on the Speed Triple 1200 RR Comfort, Normal or Dynamic. motorcycle. more information 12:34 Speed Triple 1200 RR suspension, see °C page 134.
  • Page 51 GENERAL INFORMATION Bike - Warnings Fixed Settings The following screen is shown if a fixed warnings information suspension setting is selected; Fixed 1, messages are shown in the main Fixed 2 or Fixed 3. display. An example is shown below. 12:34 12:34 °C...
  • Page 52 ▼ On-Road and Track by enabling the Suspension required option. All other riding Traction Control modes will automatically show a list Triumph Shift Assist of specified riding mode settings to Turn signals Manual select from. Factory Reset Scroll down/up the specific riding ▼...
  • Page 53 GENERAL INFORMATION Settings - Suspension Press the joystick center to confirm. ▼ The specific suspension parameters The suspension settings option is only for the selected suspension setting available on Speed Triple 1200 RR. are then shown. suspension settings option allows the adjustment of suspension parameters to suit rider preferences 12:34 °C...
  • Page 54 ▼ other suspension parameters. and pulling away. Push the joystick left to return to Triumph Shift Assist will not operate if ▼ the previous menu. the clutch is applied or if an up-shift is attempted by mistake when in 6th gear.
  • Page 55 GENERAL INFORMATION Settings - Turn Signals Journey Menu turn signals setting The Journey menu allows configuration changed. of the motorcycle journey information. To change the turn signals setting: 12:34 °C From the Settings menu, push the Journey ▼ joystick down/up to select the Turn Trip Signals option.
  • Page 56 GENERAL INFORMATION Journey - Trip Meter Journey - Trip Settings There are two trip meters that can be The Trip Settings menu allows the accessed and reset in the information trip meters to be reset manually or tray. automatically. 12:34 12:34 °C °C...
  • Page 57 GENERAL INFORMATION Journey - Lap Timer Journey - Lap Timer Review The Lap Timer menu allows a certain The Lap Timer Review menu shows any distance/lap to be timed and compared stored sessions and lap times. against a previously timed lap. Up to ten sessions and up to 24 laps per session can be stored.
  • Page 58 GENERAL INFORMATION All lap times for the selected session are Push the joystick left to move the ▼ shown in the order they were recorded. slider dot to the left to disable the Top Speed option. The top speed The top speed information is only information is then no longer shown shown if the top speed setting has been in the Lap Timer screens.

  • Page 59: Right Handlebar Switches

    Bluetooth® Menu more information Bluetooth® features, My Triumph Connectivity Handbook. The My Triumph Connectivity Handbook is also available on the Internet at: https://www. triumphinstructions. com/ Enter the part number 'A9820200' into Hazard warning lights switch Steering lock button the search field to access the handbook.

  • Page 60: Steering Lock Button

    GENERAL INFORMATION Steering Lock Button RUN Position The engine start/stop switch must be in Warning the RUN position for the motorcycle to operate. For reasons of security and safety, always make sure the steering lock START Position is on when leaving the motorcycle The START position operates the electric unattended.

  • Page 61: Left Handlebar Switches

    GENERAL INFORMATION Left Handlebar Switches The daytime running lights and low beam headlights are operated manually using the DRL switch. Push the switch forward to the top for DRL mode, and push the switch rearward to the bottom for low beam headlight mode. Warning Do not ride for longer than necessary in poor ambient light conditions with...

  • Page 62: Mode Button

    GENERAL INFORMATION MODE Button Joystick Button When the MODE button is pressed and The Joystick is used to operate the released it will activate the Riding Mode following functions of the instruments: Selection Menu in the display screen. Up - scroll the menu from the ▼...

  • Page 63: Brake And Clutch Lever Adjusters

    GENERAL INFORMATION Brake and Clutch Lever A lighting on/off switch is not installed on this model. The tail light and license Adjusters plate light all function automatically when the ignition is turned on. The Warning headlight will function when the ignition is turned on and the engine is running.

  • Page 64: Front Brake Lever

    GENERAL INFORMATION Front Brake Lever Ratio Adjuster The ratio adjuster moves the brake Two adjusters are mounted to the master cylinder push rod to the left or brake lever; a span adjuster and a ratio right in 0.04 in (1 mm) increments from adjuster.

  • Page 65: Clutch Lever

    MIL illuminated, limp-home mode ▼ with the engine at a fast idle condition only MIL illuminated, engine will not start. ▼ For all of the conditions mentioned contact an authorized Triumph dealer as soon as possible to have the fault checked and rectified.

  • Page 66: Cruise Control

    Warning This Triumph motorcycle should be operated within the legal speed limits for the particular road traveled. Operating a motorcycle at high speeds can be potentially dangerous since the...

  • Page 67: Activating Cruise Control

    The cruise control buttons are located Warning on the left hand switch housing and can be operated with minimum movement Only operate this Triumph motorcycle by the rider. at high speed in closed-course, on- road competition or on closed-course racetracks.

  • Page 68: Adjusting The Set Speed While In Cruise Control

    GENERAL INFORMATION Adjusting the Set Speed While in Once these conditions have been ▼ met, press the SET/- button to Cruise Control activate cruise control. The cruise To adjust the set speed while in cruise control symbol will be shown in a control, press and release the: green light in the TFT display to RES/+ button to increase the speed...

  • Page 69: Deactivating Cruise Control

    GENERAL INFORMATION Deactivating Cruise Control Cruise control will be deactivated if one of the following actions has been taken: The cruise control can be deactivated Roll the throttle twist grip fully by one of the following methods: ▼ forward. Roll the throttle twist grip fully ▼...

  • Page 70: Traction Control (Tc)

    GENERAL INFORMATION Traction Control (TC) Traction Control Settings Warning Warning Do not attempt to adjust the traction The traction control and optimized control settings while the motorcycle cornering traction control systems is in motion as this may lead to loss of substitute riding motorcycle control and an accident.

  • Page 71: Tire Pressure Monitoring System (Tpms) (If Equipped)

    The Tire Pressure Monitoring System Front tire pressure indicator (TPMS) is available as an accessory kit. It must be installed by your authorized Tire Pressures Triumph dealer. The TPMS display on the instruments Warning will only be activated when the system has been installed.

  • Page 72: Tire Pressure Sensor Batteries

    Always have your tires mounted your authorized Triumph dealer to have by your authorized Triumph dealer the sensor replaced and the new serial and inform them that tire pressure number recorded in the spaces provided sensors are installed on the wheels.

  • Page 73: Tire Pressure Sensor Serial Number

    Motor Octane Number (MON). Replacement Tires Ethanol When replacing tyres, always have an authorized Triumph dealer fit your tyres In Europe, Triumph motorcycles are and make sure they are aware that compatible with Ethanol E5 and E10 (5% tyre pressure sensors are fitted to the and 10% Ethanol) unleaded fuel.
  • Page 74 Caution under the names 'gasohol', 'Ethanol enhanced', or 'contains Ethanol'. This exhaust system this fuel may be used in your Triumph motorcycle is equipped with a catalytic motorcycle. converter to help reduce exhaust MTBE (Methyl Tertiary Butyl Ether) emission levels.

  • Page 75: Fuel Tank Cap

    If the fuel tank cap still doesn't open, flammable, any fuel leak or spillage, take your motorcycle to the nearest or any failure to observe the safety Triumph dealer. If this is not possible advice given above will lead to a fire then follow...

  • Page 76: Emergency Access

    GENERAL INFORMATION Emergency Access There is a cable attached to the fuel ▼ tank cap. Carefully remove the fuel tank cap and seal, tilting the whole Warning component towards the front of the Make sure the motorcycle is stabilized motorcycle. and adequately supported.

  • Page 77: Filling The Fuel Tank

    Avoid filling the tank in rainy or dusty conditions where airborne material can contaminate the fuel. Contaminated fuel may cause damage to fuel system components. Tightening Sequence Take the motorcycle to the nearest ▼ Triumph dealer to check and rectify.

  • Page 78: Seats

    GENERAL INFORMATION Seats Fill the fuel tank slowly to help prevent spillage. Do not fill the tank to a level above the bottom of the filler neck. Warning This will make sure there is enough air space to allow for fuel expansion if the Make sure the motorcycle is stabilized fuel inside the tank expands through and adequately supported.

  • Page 79: Passenger Seat/Seat Cowl Removal

    GENERAL INFORMATION Passenger Seat/Seat Cowl Removal Passenger Seat/Seat Cowl Installation To remove the passenger seat or seat cowl (referred to as passenger seat for Warning this procedure): Release the passenger seat cap. ▼ Never ride the motorcycle with the Remove the passenger seat cap seat fasteners loose or removed, as ▼...

  • Page 80: Rider's Seat Removal

    GENERAL INFORMATION Install and tighten the passenger Remove rider's seat ▼ ▼ seat fastener to 44 lbf in (5 Nm). fasteners at the rear of the seat. B01234 B01238 Passenger seat fastener (passenger seat Rider's seat fasteners cap installs on top) Rider's seat Passenger seat Lift the seat up from the back...

  • Page 81: Rider's Seat Installation

    GENERAL INFORMATION Rider's Seat Installation Install the two rider's seat fixings to ▼ the rear of the seat and tighten to 44 lbf in (5 Nm). Warning Never ride the motorcycle with the seat fasteners loose or removed, as both seats will not be secure and may move.

  • Page 82: Side Stand

    GENERAL INFORMATION Side Stand When using the side stand, always turn the handlebars fully to the left and leave the motorcycle in first gear. Warning Whenever the side stand is used, before The motorcycle is equipped with an riding, always make sure that the side interlock system to prevent it from stand is fully up after first sitting on the being ridden with the side stand in the...

  • Page 83: Tool Kit

    GENERAL INFORMATION Tool Kit Windshield (if equipped) The tool kit includes a C-spanner Warning and two adjustment tools. The two adjustment tools are located on the Never attempt to clean the windshield underside of the coolant expansion while riding the motorcycle. tank cover.

  • Page 84: Breaking-In

    GENERAL INFORMATION Breaking-In Both during and after breaking-in has been completed: Do not overrev the engine when ▼ cold; R.P.M. Do not lug the engine. Always ▼ Breaking-in is the name given to the downshift before the engine begins process that occurs during the first to 'struggle';...

  • Page 85: Daily Safety Checks

    Maintenance grip returns to the idle position without and Adjustment section or see your sticking (page 65). authorized Triumph dealer for the action Clutch: Smooth operation and correct required to return the motorcycle to a cable free play (page 120).
  • Page 86 GENERAL INFORMATION This page intentionally left blank...

  • Page 87: How To Ride The Motorcycle

    HOW TO RIDE THE MOTORCYCLE Table of Contents Stopping the Engine Starting the Engine Moving Off Shifting Gears Triumph Shift Assist (TSA) (if equipped) Braking Anti-lock Braking System (ABS) Optimized Cornering ABS Parking Considerations for High Speed Operation...

  • Page 88: Stopping The Engine

    HOW TO RIDE THE MOTORCYCLE Stopping the Engine Starting the Engine Caution Warning engine should normally Never start the engine or run the stopped by turning the ignition switch engine in a confined area. to the OFF position. Exhaust fumes are poisonous and can engine stop switch...
  • Page 89 Consult your motorcycle. Having two ignition keys authorized Triumph dealer. near the motorcycle may interrupt the Continued attempts at starting the signal between the transponder and engine will cause serious damage to the engine immobilizer.

  • Page 90: Moving Off

    HOW TO RIDE THE MOTORCYCLE Moving Off Shifting Gears To move the motorcycle: Warning Pull in the clutch lever and select ▼ first gear. Take care to avoid opening the throttle Open the throttle a little and let out too far or too fast in any of the lower ▼...

  • Page 91: Triumph Shift Assist (Tsa) (If Equipped)

    Use the clutch to shift gears in the normal way otherwise damage to the engine or gear box may occur. Contact a Triumph dealer as soon as possible to have the fault checked and rectified. Caution Shifting gears must be completed with...

  • Page 92: Braking

    When the rider applies the front brake, selecting neutral from any other gear. a small amount of rear brake is also Triumph Shift Assist will not operate if: applied, allowing for balancing braking. The clutch is applied. ▼...
  • Page 93 Riders should practice emergency braking in a traffic-free area. Triumph strongly recommends that all riders take a course of instruction, which includes advice on safe brake operation. Incorrect brake technique could result in loss of control and an accident.
  • Page 94 HOW TO RIDE THE MOTORCYCLE Warning Warning your safety, always exercise Riding with your foot on the brake extreme caution when braking, pedal or your hands on the brake lever accelerating turning may actuate the brake light, giving a improper action can cause loss of false indication to other road users.

  • Page 95: Anti-Lock Braking System (Abs)

    This can result in loss of control and Contact an authorized Triumph dealer an accident. as soon as possible to have the fault Under some circumstances checked and rectified.

  • Page 96: Optimized Cornering Abs

    HOW TO RIDE THE MOTORCYCLE Warning Warning Continued operates comparing The potential increased control that relative speed of the front and rear optimized cornering braking wheels. system allows under certain conditions is not a substitute for good riding Use of non-recommended tires can practice.

  • Page 97: Parking

    Do not continue to ride for longer than is necessary with the warning light Warning illuminated. In the event of a fault, contact an authorized Triumph dealer Gasoline extremely flammable as soon as possible to have the fault and can be explosive under certain checked and rectified.
  • Page 98 HOW TO RIDE THE MOTORCYCLE Do not park on a lateral (sideways) ▼ Warning incline of greater than 6° and never park facing downhill. Do not park on a soft or steeply Do not leave the switch in the inclined surface. ▼...

  • Page 99: Considerations For High Speed Operation

    Warning from those you are familiar with at legal road speeds. This Triumph motorcycle should be operated within the legal speed limits Do not attempt high speed operation for the particular road traveled. unless you have received sufficient...
  • Page 100 HOW TO RIDE THE MOTORCYCLE Electrical Equipment Luggage Make sure that all electrical equipment Make sure that any luggage containers such as the headlight, rear/brake light, are closed, locked and securely installed turn signals and horn all work correctly. on the motorcycle. Engine Oil Miscellaneous Check that the engine oil level is correct.
  • Page 101 Triumph accessory. Make sure the Triumph motorcycle model that the Triumph accessory is to be Warning installed on, is listed as approved for the genuine Triumph accessory. For Owners should be aware that the all Triumph Fitting Instructions, see...
  • Page 102 ACCESSORIES, LOADING AND PASSENGERS Loading Warning Warning Never ride an accessory equipped motorcycle, or a motorcycle carrying a Always make sure that any loads payload of any kind, at speeds above carried are evenly distributed on both 80 mph (130 km/h). In either/both of sides of the motorcycle.
  • Page 103 ACCESSORIES, LOADING AND PASSENGERS Speed Triple 1200 RS Only Warning Warning Never attempt to store any items between the frame and the fuel tank. If the passenger seat is used to carry small objects, they must not exceed This can restrict the steering and will 6.5 lbs (3 kg) in weight, must not cause loss of control leading to an impair control of the motorcycle, must...
  • Page 104 ACCESSORIES, LOADING AND PASSENGERS Passengers Warning Warning Your passenger should be instructed that they can cause loss of motorcycle The handling and braking capabilities control by making sudden movements of a motorcycle will be affected by the or by adopting an incorrect seated presence of a passenger.

  • Page 105: Maintenance

    MAINTENANCE Table of Contents Scheduled Maintenance Scheduled Maintenance Table Engine Oil Engine Oil Level Inspection Engine Oil and Filter Change Disposal of Used Engine Oil and Oil Filters Engine Oil Specification and Grade (10W/40 & 10W/50) Cooling System Coolant Level Inspection Coolant Level Adjustment Coolant Change Clutch...
  • Page 106 MAINTENANCE Speed Triple 1200 RS Suspension Front Suspension Settings Spring Preload Adjustment Compression Damping Adjustment Rebound Damping Adjustment Rear Suspension Settings Compression Damping Adjustment Rebound Damping Adjustment Bank Angle Indicators Tires Tire Inflation Pressures Tire Pressure Monitoring System (TPMS) (if equipped) Tire Wear Minimum Recommended Tread Depth Tire Replacement...

  • Page 107: Scheduled Maintenance

    Special tools, knowledge and training are required in order to correctly carry out the maintenance items listed in scheduled maintenance chart. Only an authorized Triumph dealer will have this knowledge and equipment. Incorrect or neglected maintenance lead dangerous riding condition. Always have an authorized...
  • Page 108 ABS and/or MIL warning lights 10,000 miles (16,000 km) per year are illuminated. Contact an authorized must have the annual maintenance Triumph dealer as soon as possible to and the specified mileage based have the fault checked and rectified. items carried out together.

  • Page 109: Scheduled Maintenance Table

    MAINTENANCE Scheduled Maintenance Table Odometer Reading in Miles (km) or Time Period, whichever comes first First Annual Mileage Based Service Service Service Operation description 10,000 and 600 Mile 30,000 Mile 20,000 Mile 40,000 Mile (1,000 Km) Daily Year (16,000 and (32,000 Km) (64,000 Km) or 6 Month...
  • Page 110 ECM - check for latest calibration download using the Triumph diagnostic tool Autoscan - carry out a full Autoscan using the • • • • • Triumph diagnostic tool (print a customer copy) Carry out all outstanding Service Bulletin and • • • • • warranty work •...

  • Page 111: Engine Oil

    MAINTENANCE Engine Oil Warning If the engine has recently been running, the exhaust components may be hot to the touch. Contact with the hot components may cause damage to exposed skin. Warning To avoid skin damage, always allow the hot parts to cool before touching the Motorcycle operation with insufficient, exhaust system.

  • Page 112: Engine Oil And Filter Change

    MAINTENANCE To inspect the engine oil level: Warning Start the engine and run at idle for ▼ approximately five minutes. The engine oil may be hot. Stop the engine, then wait for at Avoid contact with the hot engine ▼ least five minutes to allow the oil to oil by wearing suitable protective settle.
  • Page 113 Engine oil filter ▼ connector from the oil filter cover. Unscrew and remove the engine ▼ filter using Triumph service tool T3880313 - Oil Filter Wrench. Dispose of the old engine oil filter in an environmentally friendly way.
  • Page 114 18 lbf ft Install the new engine oil filter and ▼ (25 Nm). tighten to 89 lbf in (10 Nm) using Triumph service tool T3880313. Caution Install the engine oil filter cover ▼ with the wire guide in the same...

  • Page 115: Disposal Of Used Engine Oil And Oil Filters

    MAINTENANCE Note the lower left hand fastener ▼ Caution also secures the oil filter cover between the sprocket cover and Raising the engine speed above idle crankcase. before the oil reaches all parts of the Install and tighten the fastener to engine can cause engine damage or ▼...

  • Page 116: Engine Oil Specification And Grade (10W/40 & 10W/50)

    Ambient Temperature (°C) when it leaves the factory. It is colored (°C) orange, and contains a 50% solution of monoethylene glycol based antifreeze. SAE 10W/50 D2053 coolant, as supplied by Triumph, SAE 10W/40 provides freeze protection to -40°C (-40°F). 86 104 (°F) Ambient Temperature (°F)

  • Page 117: Coolant Level Inspection

    SEEK MEDICAL ATTENTION IMMEDIATELY. KEEP COOLANT OUT OF THE REACH OF CHILDREN. Note D2053 OAT coolant, as supplied by Triumph, is premixed and does not need to be diluted prior to filling or topping off the cooling system.

  • Page 118: Coolant Level Adjustment

    MAINTENANCE Coolant Level Adjustment Note If the coolant level is being checked Warning because the coolant has overheated, also check the level in the radiator and Do not remove the expansion tank or top off if necessary. radiator pressure cap when the engine In an emergency, distilled water can be is hot.

  • Page 119: Coolant Change

    Coolant Change maintenance requirements. Have your It is recommended that the coolant authorized Triumph dealer replace any is changed by an authorized Triumph defective items. dealer in accordance with scheduled Check the radiator grille and fins for maintenance requirements.

  • Page 120: Clutch

    MAINTENANCE Clutch If there is an incorrect amount of ▼ free play, adjustments must be The motorcycle is equipped with a made. cable-operated clutch. correct adjustment cannot ▼ Clutch Lever Adjustment be made using the clutch lever If the clutch lever has excessive free adjuster, clutch cable...

  • Page 121: Drive Chain

    If the chain is badly worn or incorrectly adjusted (either too loose or too tight) the chain could jump off the sprockets or break. Therefore, always replace worn or damaged chains using genuine Triumph parts supplied by an authorized Triumph dealer.

  • Page 122: Drive Chain Lubrication

    MAINTENANCE Drive Chain Lubrication Drive Chain Free Movement Inspection Lubrication is necessary every 200 miles (300 km) and also after riding in wet Warning weather, on wet roads, or any time that the chain appears dry. Make sure the motorcycle is stabilized To lubricate the drive chain: and adequately supported.

  • Page 123: Drive Chain Free Movement Adjustment

    Readjust if necessary. Warning dangerous operate motorcycle with defective brakes; you must have your authorized Triumph dealer take remedial action before you attempt to ride the motorcycle again. Failure to take remedial action may reduce braking efficiency leading to loss of control or an accident.

  • Page 124: Drive Chain And Sprocket Wear Inspection

    Use a genuine Triumph supplied drive pin center of the 1st pin to the pin chain as specified in the Triumph Parts center of the 21st pin. Since the Catalog. chain may wear unevenly, take The use of non-approved drive chains measurements in several places.

  • Page 125: Brakes

    Replacing individual pads will reduce braking efficiency and may cause an Brake pads for this model supplied by accident. Triumph will have the carrier plate at least 0.18 in (4.5 mm) thick. After replacement brake pads have been installed, ride with extreme caution until the new pads have 'broken in'.

  • Page 126: Brake Pad Wear Compensation

    Triumph dealer must Because of this, always replace brake rectify the fault before riding. fluid in accordance with scheduled Riding with defective brakes may lead maintenance requirements.

  • Page 127: Front Brake Fluid Level Inspection And Adjustment

    Triumph dealer for advice before riding. Reduce speed and do not continue to Riding with depleted brake fluid levels, ride for longer than is necessary with or with a brake fluid leak is dangerous the indicator light illuminated.
  • Page 128 MAINTENANCE To adjust the front brake fluid level: Hold assembly together ▼ and position the reservoir cap, Loosen the reservoir cap retaining ▼ diaphragm seal and reservoir cap screws and remove the reservoir retaining screws onto the reservoir. cap and the diaphragm seal. Fill the reservoir to the MAX level ▼...

  • Page 129: Rear Brake Fluid Level Inspection And Adjustment

    Brake Light Switches Triumph dealer for advice before riding. Riding with depleted brake fluid levels, Warning or with a brake fluid leak is dangerous will cause reduced...

  • Page 130: Mirrors

    MAINTENANCE Mirrors Warning Warning Incorrect adjustment of the bar end mirrors may cause the mirror arm Operation of the motorcycle with to contact the fuel tank, brake or incorrectly adjusted mirrors clutch levers or other parts of the dangerous. motorcycle. Operation of the motorcycle with This will restrict brake or clutch incorrectly adjusted mirrors will result...

  • Page 131: Steering/Wheel Bearings

    MAINTENANCE Steering/Wheel Bearings The bar end mirrors will be set by your authorized Triumph dealer and will not normally require any adjustment. Should Caution adjustment be necessary, do not rotate the mirror beyond 75°, measured from prevent risk injury from the vertical section of the mirror arm.

  • Page 132: Wheel Bearings Inspection

    If in doubt, have the motorcycle inspected by an authorized Triumph dealer before riding. If the wheel bearings in the front or rear wheel allow play in the wheel hub,...

  • Page 133: Front Fork Inspection

    MAINTENANCE Front Fork Inspection If any free play can be detected, ask ▼ your authorized Triumph dealer to inspect and rectify any faults before riding. Reposition the lifting device and ▼ repeat the procedure for the rear wheel. Remove the support and place the ▼...

  • Page 134: Speed Triple 1200 Rr Suspension

    MAINTENANCE Speed Triple 1200 RR fixed settings operate like conventional, manually adjustable Suspension suspension. The level of compression and rebound damping can be set by the Warning rider and this preset level is maintained until the rider changes it. Fixed settings After selecting and/or...

  • Page 135: Adaptive Settings

    MAINTENANCE Adaptive Settings Within the adaptive settings, there are different options that can be adjusted in the Suspension section of the instruments. For more information, see page 48 and page 50. This allows the suspension to be adapted to the rider's preference. Each option has an adjustment range of -5 to +5, with the default position at 0.
  • Page 136 MAINTENANCE Suspension Setting Options Descriptions Allows adjustment of the overall firmness (compression and rebound FRONT FIRMNESS damping levels) of the front fork. Allows adjustment of the overall firmness (compression and rebound REAR FIRMNESS damping levels) of the rear shock absorber. Allows adjustment of the amount of support provided by the front fork during braking.

  • Page 137: Fixed Settings

    MAINTENANCE Fixed Settings Fixed settings are only available after selecting the Advanced suspension option, refer to page 53. The three fixed settings can be adjusted as required. The damping adjustment is similar to the manual suspension 'clicks' where 1 represents maximum damping and 23 minimum damping.

  • Page 138: Spring Preload Settings

    Refer tables further information or consult your authorized Triumph dealer. Speed Triple 1200 RR is delivered from the factory with the front suspension set at the Solo (normal) riding setting, as shown in the relevant front suspension setting chart.

  • Page 139: Maintenance

    Solo Riding - Refer tables further Sport (Firmer) information or consult your authorized Solo Riding - Triumph dealer. Track Rider and Passenger Speed Triple 1200 RS is delivered from the factory with the front suspension Number of clicks counterclockwise from the...

  • Page 140: Spring Preload Adjustment

    MAINTENANCE Spring Preload Adjustment Compression Damping Adjustment The Speed Triple 1200 RS spring preload The Speed Triple 1200 RS compression adjusters are located at the top of each damping adjuster is located at the top fork. of the left hand fork. Spring preload adjusters Compression damping adjuster To change the spring preload:...

  • Page 141: Rebound Damping Adjustment

    Refer tables further information or consult your authorized Triumph dealer. The Speed Triple 1200 RS is delivered Rebound damping adjuster from factory with rear To change the rebound damping force: suspension set at the Solo (normal) Using a 0.12 in (3 mm) Allen key,...

  • Page 142: Compression Damping Adjustment

    MAINTENANCE Compression Damping Adjustment suspension settings charts show suggested settings for the rear The Speed Triple 1200 RS compression suspension and are only a guide. Setting damping adjuster is accessible from the requirements may vary for rider weight rear of the motorcycle. It is situated and personal preferences.

  • Page 143: Rebound Damping Adjustment

    MAINTENANCE Bank Angle Indicators Rebound Damping Adjustment Speed Triple 1200 RS rebound Warning damping adjuster is accessible from the rear of the motorcycle. It is situated Always replace bank angle close to the rear suspension reservoir. indicators before they are worn to their maximum limit.

  • Page 144: Tires

    MAINTENANCE Tires Tire Inflation Pressures Warning Incorrect tire inflation will cause abnormal tread wear and instability problems that may lead to loss of control and an accident. This motorcycle equipped with tubeless tires, valves and wheel rims. Under inflation may result in the tire only tires marked...

  • Page 145: Tire Pressure Monitoring System (Tpms) (If Equipped)

    The cold inflation pressures Care must be taken when replacing specified by Triumph take account of the tires to prevent any damage to this. the tire pressure sensors. Only...

  • Page 146: Minimum Recommended Tread Depth

    Triumph dealer, or depth specified in the table below: on the Internet at www. triumph. co. uk. Always have tires and inner tubes Under 80 mph mounted...
  • Page 147 MAINTENANCE When replacement tires or inner tubes Warning are required, consult your authorized Triumph dealer who will arrange for the Inner tubes must only be used on tires and inner tubes to be selected, motorcycles equipped with spoked in a correct combination, from the...
  • Page 148 If tire damage is suspected, such any wheel balance weights. Incorrect as after striking the curb, ask your wheel balance may cause instability authorized Triumph dealer to inspect leading to loss of control and an the tire both internally and externally. accident.

  • Page 149: Battery

    MAINTENANCE Battery Warning This motorcycle contains If the battery is in use or being LiFePO lithium-ion battery. recharged and it gives off an odor, generates heat, becomes deformed, Warning discolored or appears abnormal in any way, immediately switch off the lithium-ion battery contains...
  • Page 150 MAINTENANCE Disconnect negative (black) ▼ Warning battery lead. Before disconnecting the battery or removing a fuse, note and record the rider mode settings. Once battery been reconnected or the fuse reinstalled then the rider mode settings should be reset as noted. Failure reset rider...
  • Page 151 MAINTENANCE Loosen the positive (red) lead busbar Remove the two fasteners and ▼ ▼ cover cap clip and open the cap. remove the front brace. B01221 B01219 Battery positive lead busbar cover cap Fasteners Battery positive lead cover clip Front brace Disconnect the positive (red) battery Loosen the battery strap from ▼...

  • Page 152: Battery Charging

    For help with selecting battery 12.4 Volts, additional charging is charger, checking the battery voltage necessary. or battery charging, contact your local authorized Triumph dealer. The lithium-ion battery can be quickly charged long charge Lithium-ion batteries are pre-charged voltage remains below 14.7...

  • Page 153: Battery Maintenance

    MAINTENANCE Battery Storage A battery charger will limit the voltage between 14.0-14.7 Volts when charging. To store a lithium-ion battery correctly, The battery cannot be fully charged do the following: if the charging voltage is less than Always store battery ▼...

  • Page 154: Battery Installation

    MAINTENANCE Warning Warning Lithium-ion batteries are regarded as Never attempt to open, disassemble, or Class 9 hazardous products. pierce a lithium-ion battery. incinerate lithium-ion Never strike, throw, or subject the battery. battery to severe physical shock. DO NOT crush a lithium-ion battery. These actions may cause a lithium- ion battery to vent gas at a very high DO NOT break open a lithium-ion...
  • Page 155 MAINTENANCE Apply a light coat of grease to the ▼ Warning terminal to prevent corrosion. Make sure the battery busbar, positive and negative terminals do not come into contact with each other. Do not reverse the positive (+) or negative (-) terminals. Shorting the positive and negative terminals, may cause the battery to vent gas at a very high temperature.

  • Page 156: Fuel Tank

    MAINTENANCE Fuel Tank Install the front brace, secure with ▼ the two fixings and tighten to The fuel tank must be carefully raised 71 lbf in (8 Nm). to access the front fuse box. Complete the following procedures for raising and reinstalling the fuel tank safely.
  • Page 157 MAINTENANCE Loosen but do not fully remove the ▼ Warning rear fasteners from both sides of the rear bracket. Draining or extraction of fuel from a fuel tank must be carried out in a well ventilated area. The receptacle used to contain the fuel must be more than adequate for the full amount of fuel to be extracted or drained.

  • Page 158: Reinstalling The Fuel Tank

    MAINTENANCE With the aid of an assistant, tilt the To reinstall the fuel tank: ▼ fuel tank rearward to gain access Lower the front of the fuel tank. ▼ to the underside and the front fuse Install fuel tank bracket ▼...

  • Page 159: Fuse Boxes

    MAINTENANCE Fuse Boxes Warning Warning To help reduce hazards associated with refueling, always observe the Always replace blown fuses with new following fuel safety instructions: ones of the correct rating (as specified - Gasoline (fuel) is highly flammable on the fuse box cover). and can be explosive under certain Never replace a blown fuse with a fuse conditions.

  • Page 160: Front Fuse Box

    MAINTENANCE Front Fuse Box Rating Position Circuits Protected (Amps) The front fuse box is located under the fuel tank. Chassis ECM, Horn, License Plate Light Chassis ECM, Brake/ Tail Light, Front Position Light DRL Control Logic, Instrument Wake, Front Turn Signals, Heated Grips Chassis ECM, Dip Beam Headlight, Main Beam...

  • Page 161: Rear Fuse Box

    MAINTENANCE Rear Fuse Box Main Fuse Box The rear fuse box is located under the The 40 Amp main fuse is located under rider's seat. the rider's seat. B01348 Rear fuse box Main fuse Battery lead Main fuse electrical connector Rear Fuse Box Cover Rating Position...

  • Page 162: Headlights

    MAINTENANCE Headlights Caution Do not cover the headlight or lens with any item likely to obstruct air flow to, or prevent heat escaping from, the headlight lens. Covering the headlight lens during Warning operation with items clothing, luggage, adhesive tape, devices Adjust road speed to suit the visibility intended...

  • Page 163: Headlight Adjustment

    MAINTENANCE Headlight Adjustment Tighten headlight bracket ▼ fasteners to 35 lbf in (4 Nm). Speed Triple 1200 RR Only Recheck headlight beam ▼ The headlight unit can only be adjusted settings. vertically. Before adjusting Switch the headlights off when the ▼...

  • Page 164: Headlight Replacement

    MAINTENANCE Brake/Tail Light Moving the bracket forwards will ▼ move the headlight upwards. Moving tail light unit sealed, the bracket rearwards will move the maintenance free LED unit. The tail light headlight downwards. unit must be replaced in the event of Tighten headlight bracket...

  • Page 165: Cleaning And Storage

    CLEANING AND STORAGE Table of Contents Cleaning Preparation for Washing Where to be Careful Washing After Washing Gloss Paintwork Care Matt Paintwork Care Aluminum Items - not Lacquered or Painted Chrome and Stainless Steel Care Black Chrome Care Exhaust System Care Seat Care Pannier Care (if equipped) Windshield Care (if equipped)

  • Page 166: Cleaning

    CLEANING AND STORAGE Cleaning Preparation for Washing Frequent, regular cleaning Before washing, precautions must be essential part of the maintenance of taken to keep water off the following your motorcycle. If regularly cleaned, places. the appearance will be preserved for Rear opening of the exhausts: Cover many years.

  • Page 167: Where To Be Careful

    CLEANING AND STORAGE Where to be Careful Washing wash motorcycle, Caution following: Make sure that the motorcycle ▼ Do not use high pressure spray engine is cold. washers or steam cleaners. Prepare a mixture of clean, cold ▼ Use of high pressure spray washers water and mild automotive cleaner and steam cleaners may damage or low alkaline soap.

  • Page 168: After Washing

    CLEANING AND STORAGE After Washing Gloss Paintwork Care Gloss paintwork should be washed Warning dried described previously, then protected using a high quality Never wax or lubricate the brake discs. automotive polish. Always follow the manufacturer’s instructions and repeat Always clean the brake disc with a proprietary brand of oil-free brake disc regularly to maintain your motorcycle’s cleaner.

  • Page 169: Aluminum Items - Not Lacquered Or Painted

    CLEANING AND STORAGE Aluminum Items - not Chrome and Stainless Steel Lacquered or Painted Care Items such as brake and clutch levers, All chrome and stainless steel parts wheels, engine covers, engine cooling of your motorcycle must be cleaned fins, upper lower yokes...

  • Page 170: Black Chrome Care

    CLEANING AND STORAGE Black Chrome Care Exhaust System Care Items such as headlight bowls and All parts of the exhaust system of your mirrors on some models must be motorcycle must be cleaned regularly to correctly cleaned to preserve their avoid a deterioration of its appearance.

  • Page 171: Seat Care

    CLEANING AND STORAGE Seat Care Protecting Caution Caution products containing Do not use chemicals or high pressure silicone will cause discoloration of the spray washers to clean the seat. chrome and stainless steel parts and Using chemicals or high pressure must not be used.

  • Page 172: Pannier Care (If Equipped)

    CLEANING AND STORAGE Pannier Care (if equipped) Windshield Care (if equipped) Caution Use of chemicals or high pressure spray washers is not recommended for Warning cleaning the panniers. Using chemicals or high pressure Never attempt to clean the windshield spray washers damage while the motorcycle is in motion as...

  • Page 173: Leather Products Care

    The Triumph leather product is a natural be replaced. product and lack of care can result in damage and permanent wear.

  • Page 174: Storage

    CLEANING AND STORAGE Storage If exposure to salt is unavoidable, ▼ clean leather product Preparation for Storage immediately after each exposure using a damp cloth then leave the To prepare the motorcycle for storage, leather product to dry naturally at do the following: room temperature.
  • Page 175 9 lbf ft (12 Nm), and start the (noting that HD4X Hybrid engine. coolant, as supplied by Triumph, is Check and if necessary correct the pre-mixed and requires no dilution) ▼ tire pressures (see the relevant and distilled water solution (see Specification section).
  • Page 176 CLEANING AND STORAGE This page intentionally left blank...
  • Page 177 WARRANTY Table of Contents Triumph Warranty Terms and Conditions Conditions and Exclusions Noise Control System Warranty Tampering With The Noise Control System Prohibited Emission Control System Warranty California Emissions Control Warranty Statement Manufacturers Warranty Coverage Owners Warranty Responsibility What is Covered by this Emission Warranty...

  • Page 178: Triumph Warranty Terms And Conditions

    LIMITED will bear labor charges for work change of ownership by completing the carried out under the warranty. form found on the Triumph web site at The warranty may be transferred to www. triumphmotorcycles. com. subsequent owners for the balance of...

  • Page 179: Conditions And Exclusions

    TRIUMPH MOTORCYCLES than as authorized by TRIUMPH AMERICA LIMITED. MOTORCYCLES AMERICA LIMITED. Normal servicing and normal service ▼ The motorcycle battery is warranted items, such as spark plugs, oil and...

  • Page 180: Noise Control System Warranty

    The following warranty applies to the LIMITED reserve the right to make noise control system and is in addition alterations or improvements without to the general Triumph warranty and notification to any model or motorcycle the emission control warranty. without obligation motorcycles already sold.

  • Page 181: Tampering With The Noise Control System Prohibited

    WARRANTY Tampering With The Noise Triumph Motorcycles America Limited warrants first, each Control System Prohibited subsequent owner, that the vehicle was Owners warned that designed and built so as to conform, at prohibits: the time of sale, with the regulations of the U.S.

  • Page 182: Emission Control System Warranty

    2. Replacing, removing, in addition to the general Triumph modifications of any part of the warranty and the noise control system noise control system (consisting of warranty. the exhaust system and air intake...

  • Page 183: California Emissions Control Warranty Statement

    Your warranty rights and obligations alterations, accident damage The California Air Resources Board and failure to carry out maintenance as Triumph Motorcycles America Limited described in the owner's manual. are pleased to explain the emission 2. The replacement parts control system on your motorcycle.

  • Page 184: Manufacturers Warranty Coverage

    Parkway, motorcycle is defective, the parts will Suite 200, Atlanta, 30354, be repaired or replaced by Triumph the California Air Resources Board Motorcycles America Limited. This is at 9528 Telstar Avenue, El Monte, your emission control system DEFECTS California 91731.
  • Page 185 Triumph parts are used for all failed parts and original receipts, maintenance, replacement or repair of marked "paid," so you can present them components affecting emission control, to an authorized Triumph dealer for you should obtain written assurances their inspection.

  • Page 186: What Is Covered By This Emission Warranty

    ▼ Damage resulting from accident, acts Spark advance/retard system ▼ of nature or other events beyond the Spark plugs (first 10,000 miles) control of Triumph Motorcycles America ▼ Limited. Ignition coils ▼ The repair or replacement of "warranted Charcoal canister ▼...

  • Page 187: Caring For Your Motorcycle

    Caring for your Motorcycle Triumph Overseas Triumph Motorcycles have taken great If you are traveling abroad and require care in the selection of materials, assistance or advice from a Triumph plating and painting techniques so as dealer, contact subsidiary to provide its customers with a quality importer for the country which you are cosmetic appearance allied to durability.
  • Page 188 Tel: +33 1 64 62 3838 Tel: +44 1455 45 5012 Fax: +33 1 64 80 5828 Fax: +44 1455 45 2211 Germany Triumph Motorrad Deutschland GmbH Triumph Motorcycles (America) Ltd Tel: +49 6003 829090 Tel: +1 678 854 2010 Fax: +49 6003 8290927...
  • Page 189 SPECIFICATIONS Dimensions, Weights and Performance A list of model specific dimensions, weights and performance figures is available from your authorized Triumph dealer, or on the Internet at www. triumph. co. uk. Payload Speed Triple 1200 RR Speed Triple 1200 RS...
  • Page 190 SPECIFICATIONS Fuel System Speed Triple 1200 RR Speed Triple 1200 RS Type Electronic fuel injection Electronic fuel injection Injectors Solenoid operated Solenoid operated Fuel Pump Submerged electric Submerged electric Fuel Pressure (nominal) 51 lb/in² (3.5 bar) 51 lb/in² (3.5 bar) Fuel Speed Triple 1200 RR Speed Triple 1200 RS...
  • Page 191 Approved Tires A list of approved tires specific to these models is available from your authorized Triumph dealer, or on the Internet at www. triumph. co. uk. Tires Speed Triple 1200 RR Speed Triple 1200 RS...
  • Page 192 SPECIFICATIONS Electrical Equipment Speed Triple 1200 RR Speed Triple 1200 RS Tail/Brake Light License Plate Light Turn Signal Lights Frame Speed Triple 1200 RR Speed Triple 1200 RS Rake 23.6° 23.6° Trail 4.03 in (102.4 mm) 4.03 in (102.4 mm) Tightening Torques Speed Triple 1200 RR Speed Triple 1200 RS...
  • Page 193 Bearings and Pivots Grease to NLGI 2 specification Brake Fluid DOT 4 brake fluid Coolant Triumph D2053 OAT coolant (premixed) Drive Chain Chain spray suitable for XW-ring chains Semi or fully synthetic 10W/40 or 10W/50 motorcycle engine oil which meets specification...
  • Page 194 SPECIFICATIONS This page intentionally left blank...
  • Page 195 INDEX Preparation for Washing Seat Care Accessories Washing Anti-lock Braking System (ABS) Where to be Careful Optimized Cornering ABS Windshield Warning Light Clutch Adjustment Bank Angle Indicators Lever Adjustment Battery Cooling System Charging Coolant Change Disposal Coolant Level Adjustment Installation Coolant Level Inspection Maintenance Corrosion Inhibitors...
  • Page 196 Panel Layout Rider Name Display Riding Aids Gears Riding Mode Selection Shift Indicator Display Riding Modes 37, 52 Shifting Gears Service Triumph Shift Assist (TSA) Settings Shift Indicator Speedometer Hazards Suspension Warning Lights Suspension Settings Headlight 163, 163, 163, 164...
  • Page 197 INDEX Themes Tire Pressure Monitoring System Maintenance (TPMS) Scheduled Maintenance Trip Meters Master Ignition Switch (if equipped) Trip Settings Mirrors Units Bar End Mirrors Warning and Information Messages 29, 33 Warnings Panniers Parking Joystick Button Parts Identification Left Hand Side Rider View Keyless Ignition Right Hand Side...
  • Page 198 Tire Pressures 72, 145 Tires Minimum Tread Depth Replacement 73, 146 Specifications Tire Inflation Pressures Tire Wear Tool Kit Torque Specifications Traction Control (TC) Disabled Warning Light Indicator Light Settings Transmission Specifications Trip Meters Trip Settings Triumph Shift Assist (TSA)
  • Page 199 APPROVAL INFORMATION This section contains approval information that is required to be included in this Owner’s Handbook. FCC Statement This device complies with part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: This device may not cause harmful interference.
  • Page 200 APPROVAL INFORMATION Smart Keyless System Approval Addendum Smart Keyless System Approval The Smart Keyless system complies with IC-RSS-210 Industry Canada. Operation is subject to the following conditions: This device may not cause harmful interference. 2. This device must accept interference received, including interference that may cause undesired operation.

This manual is also suitable for:

Speed triple 1200 rs 2022

Table of Contents
