Hardware Installation
Installing the Chassis
Preparations
Confirming the Cabinet Specifications
 The cabinet depth (distance between the front
and rear doors) must be large than 1200 mm.
 There must be a distance of more than 180 mm
between the front mounting rails and front door of
the cabinet, and the thickness of the front door
must be smaller than 25 mm, so that more than

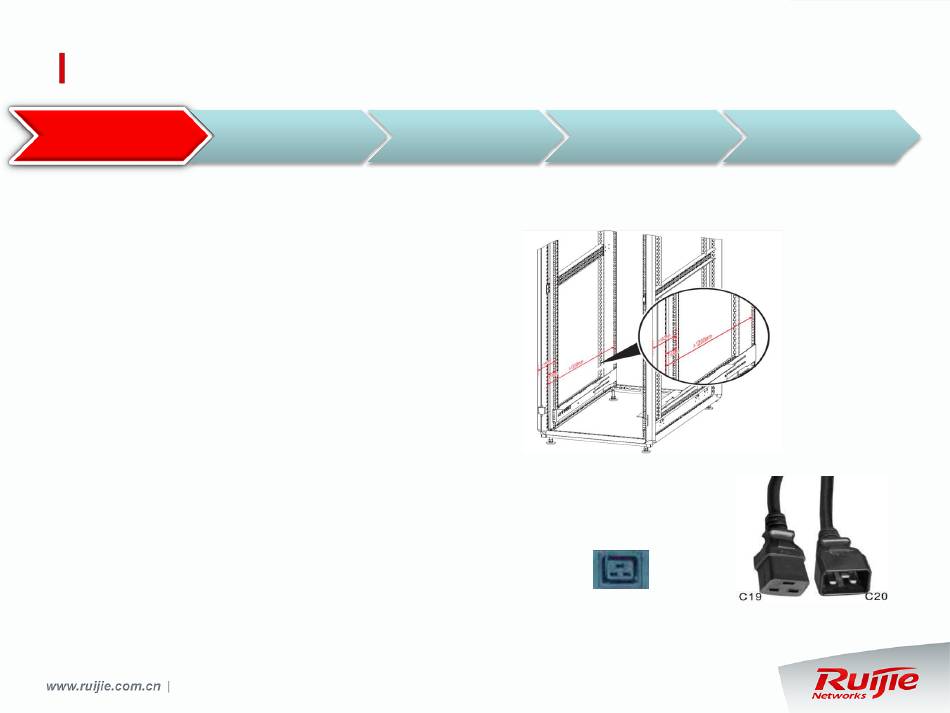

155 mm space is available. See Figure 1.
 The load capacity of the cabinet must be large
than 400 kg.
 If the N18000-X switch uses RG-PA2700I power
modules, check whether the cabinet is an IEC
cabinet, in which the PDU provides power outlets
as shown in Figure 2. In this case, use C19-C20
power cables as shown in Figure 3.
to a Specified
Position
Installing Power
Grounding
Modules or Cards
Figure 2
Checking
Figure 1
Figure 3
