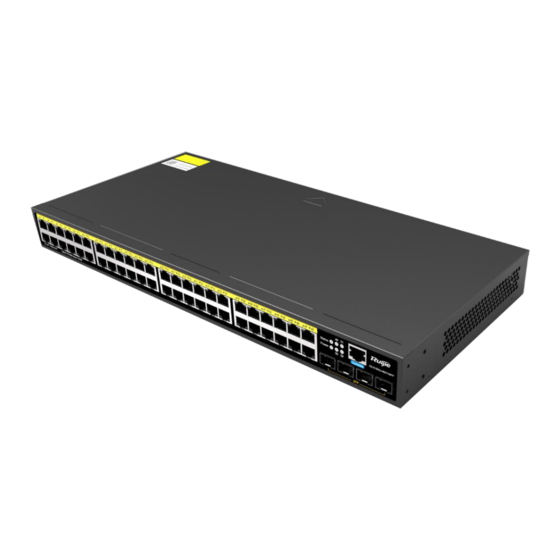

Ruijie XS-S1930J Series Switches
Hardware Installation and Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XS-S1930J Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ruijie XS-S1930J Series

Summary of Contents for Ruijie XS-S1930J Series

  • Page 1 Ruijie XS-S1930J Series Switches Hardware Installation and Reference Guide...

  • Page 2: Copyright Statement

    This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.

  • Page 3: Obtaining Technical Assistance

    It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance ⚫ Ruijie Networks Website: https://ruijie.co.jp/ ⚫ Technical Support Website: https://ruijienetworks.com/support...

  • Page 4: Product Overview

    Product Overview 1 Product Overview XS-S1930J series switches process different service flows based on various applications to ensure no latency for key data transmission, mainly used in medium and small-sized enterprises. XS-S1930J series switches provide flexible media interfaces to cater to diverse requirements.

  • Page 5: Product Appearance

    Hardware Installation and Reference Guide Product Overview Input Leakage ≤ 3.5 mA Current Support Not support Max Power Consumption 40 W (220 VAC) Operating -10° C to 50° C (14° F to 122° F) Temperature Storage -40° C to 70° C (-40° F to 158° F) Temperature Operating Humidity 10% to 90% RH...

  • Page 6: Front Panel

    Hardware Installation and Reference Guide Product Overview Front Panel Figure 1-2 Front Panel of XS-S1930J-48GT4SFP Note 1. 10/100/1000Base-T Ethernet port 4. Console port 2. System status LED 5. SFP port 3. Power status LED Back Panel Figure 1-3 Back Panel of XS-S1930J-48GT4SFP Grounding pole Three-pin AC power socket Note...

  • Page 7: Heat Dissipation

    Hardware Installation and Reference Guide Product Overview Frequency: 50/60 Hz Rated current: 0.5 A Power cord: 10 A Heat Dissipation The XS-S1930J-48GT4SFP is designed to be fanless and provides natural heat dissipation, thereby ensuring normal function of the device in the specified environment. Maintain a minimum clearance of 10cm around the device to allow air circulation.
  • Page 8 Hardware Installation and Reference Guide Product Overview Rate voltage range: 100 to 240 VAC Maximum voltage range: 90 to 264 VAC Frequency: 50/60 Hz Rated current: 0.5 A Input Leakage ≤ 3.5 mA Current Support Not support Max Power Consumption 17 W (220 VAC) Operating...
  • Page 9 Hardware Installation and Reference Guide Product Overview Front Panel Figure 1-5 Front Panel of XS-S1930J-24GT4SFP/2GT Note 1. System status LED 4. 100/1000Base-T combo port 2. Console port 5. SFP port 3. 10/100/1000Base-T Ethernet port Ports 25 and 26 are copper ports by default. Back Panel Figure 1-6 Back Panel of XS-S1930J-24GT4SFP/2GT Note...
  • Page 10 Hardware Installation and Reference Guide Product Overview Frequency: 50/60 Hz Rated Current: 0.5 A Power Cord: 10 A Heat Dissipation The XS-S1930J-24GT4SFP/2GT is designed to be fanless and provides natural heat dissipation, thereby ensuring normal function of the device in the specified environment. Maintain a minimum clearance of 10cm around the device to allow air circulation.
  • Page 11 Hardware Installation and Reference Guide Product Overview Support Not support Max Power Consumption 17 W (220 VAC) Operating -5° C to 55° C (23° F to 131° F) Temperature Storage -40° C to 70° C (-40° F to 158° F) Temperature Operating Humidity 10% to 90% RH...
  • Page 12 Hardware Installation and Reference Guide Product Overview Front Panel Figure 1-8 Front Panel of XS-S1930J-18GT2SFP Note 1. 10/100/1000Base-T Ethernet port 3. Console port 2. System status LED 4. SFP port Back Panel Figure 1-9 Back Panel of XS-S1930J-18GT2SFP Grounding pole Note Three-pin AC power socket Power cord retention clip...
  • Page 13 Hardware Installation and Reference Guide Product Overview The XS-S1930J-18GT2SFP is designed to be fanless and provides natural heat dissipation, thereby ensuring normal function of the device in the specified environment. Maintain a minimum clearance of 10cm around the device to allow air circulation.
  • Page 14 Hardware Installation and Reference Guide Product Overview (220 VAC) Operating -5° C to 50° C (23° F to 122° F) Temperature Storage -40° C to 70° C (-40° F to 158° F) Temperature Operating Humidity 10% to 90% RH Storage Humidity 5% to 95% RH Fanless Temperature...
  • Page 15 Hardware Installation and Reference Guide Product Overview Figure 1-11 XS-S1930J-18GT2SFP-P Appearance Front Panel Figure 1-12 Front Panel of XS-S1930J-18GT2SFP-P...
  • Page 16 Hardware Installation and Reference Guide Product Overview Note 1. 10/100/1000Base-T Ethernet port 5. SFP port 2. System status LED 6. External heatsink 3. PoE status LED 7. PoE mode switch-over button 4. Console port Back Panel Figure 1-13 Back Panel of XS-S1930J-18GT2SFP-P Grounding pole Note Three-pin AC power socket...
  • Page 17 Hardware Installation and Reference Guide Product Overview port status LED Solid green The port is connected at 10/100/1000 Mbps. The port is receiving or transmitting data at Blinking green 10/100/1000 Mbps. The port is not connected. 1000 Mbps SFP port Solid green The port is connected at 100/1000 Mbps.
  • Page 18 Hardware Installation and Reference Guide Product Overview Operating Humidity 10% to 90% RH Storage Humidity 5% to 95% RH Fanless Temperature Not supported Warning EMC Standards EN55032, EN55035, VCCI-A Security Standards GB4943-2011, EN62368 Dimensions 220 mm x 150 mm x 44 mm (8.66 in. x 5.90 in. x 1.73 in.) (W x D x H) Weight 1.1 kg...
  • Page 19 Hardware Installation and Reference Guide Product Overview Note 1. 10/100/1000Base-T Ethernet port 3. Console port 2. System status indicator 4. SFP port Back Panel Figure 1-16 Back Panel of XS-S1930J-8GT2SFP Grounding pole Note Three-pin AC power socket Power cord retention clip Power Supply ◼...
  • Page 20 Hardware Installation and Reference Guide Product Overview Panel Identification State Meaning The switch is powered off. The switch is being initialized. System status LED Status Blinking green Continuous blinking indicates errors. Solid green The switch is operational. The port is not connected. 1000 Mbps RJ-45...
  • Page 21 Hardware Installation and Reference Guide Product Overview Fanless Temperature Not support Warning EMC Standards EN55032, EN55035, VCCI-A Security Standards GB4943-2011, EN62368 Dimensions 280 mm x 180 mm x 44 mm (11.02 in. x 7.09 in. x 1.73 in.) (W x D x H) Weight 1.7 kg The XS-S1930J-8GT2SFP-P switch is a class A product.
  • Page 22 Hardware Installation and Reference Guide Product Overview Note 1. 10/100/1000Base-T Ethernet port 4. Console port 2. System status LED 5. SFP port 3. PoE status LED 6. PoE mode switch-over button Back Panel Figure 1-19 Back Panel of XS-S1930J-8GT2SFP-P Grounding pole Note Three-pin AC power socket Power cord retention clip...
  • Page 23 Hardware Installation and Reference Guide Product Overview The XS-S1930J-8GT2SFP-P switch is designed to be fanless and provides natural heat dissipation, thereby ensuring normal function of the device in the specified environment. Maintain a minimum clearance of 10cm around the device to allow air circulation.

  • Page 24: Preparation Before Installation

    2 Preparation Before Installation 2.1 Safety Suggestions To avoid personal injury and equipment damage, please carefully read the safety suggestions before you install the XS-S1930J series switch. The following safety suggestions do not cover all possible dangers. 2.1.1 Installation ⚫...

  • Page 25: Static Discharge Damage Prevention

    Wear anti-static wrist strap before installation. 2.1.5 Laser The XS-S1930J series switch supports varying models of optical modules sold on the market which are Class I laser products. Improper use of optical modules may cause damage. Therefore, pay attention to the following when you use them: ⚫...

  • Page 26: Installation Site Requirements

    2.2.2 Temperature and Humidity To ensure the normal operation and prolong the service life of XS-S1930J series switch, you should keep proper temperature and humidity in the equipment room. If the equipment room has temperature and humidity that do not meet the requirements for a long time, the equipment may be damaged.

  • Page 27: Safety Grounding

    2.2.4 Grounding A good grounding system is the basis for the stable and reliable operation of the XS-S1930J series switch. It is the chief condition to prevent lightning stroke and resist interference. Please carefully check the grounding conditions on the installation site according to the grounding requirements, and perform grounding operations properly as required.

  • Page 28: Lightning Grounding

    All the above constitute the comprehensive grounding requirements. The resistance of earth wires should be less than 1 Ω. The XS-S1930J series switch back plane is reserved with one grounding pole, as shown in Figure 2-1. Figure 2-1 Grounding Pole 2.2.5 Lightning Resistance...

  • Page 29: Requirements Of Installation Tools

    Hardware Installation and Reference Guide Preparation Before Installation ⚫ For the AC power supply system TN, single-phase three-core power socket with protective earthing conductors (PE) should be adopted to effectively filter out interference from the power grid through the filtering circuit. ⚫...

  • Page 30: Product Installation

    Hardware Installation and Reference Guide Product Installation 3 Product Installation Please ensure that you have carefully read Chapter 2. Make sure that the requirements set forth in Chapter 2 have been met. Installation Flowchart Confirmations before Installation Before installation, please confirm the following points: ⚫...
  • Page 31 3.3.1 Mounting the Switch to a Standard 19-inch Rack The XS-S1930J series switches follow the EIA standard dimensions and can be installed in a 19-inch distribution cabinet. Attach the mounting brackets to the switch with the supplied screws, as shown in 错误!未找到引用源。 .

  • Page 32: Mounting The Switch On The Wall

    Figure 3-3 Attaching the Mounting Brackets to the Rack 3.3.2 Mounting the Switch on the Wall The XS-S1930J series switch can be mounted on the wall, as shown in the following figures. Attach the mounting brackets to the switch with the supplied screws, as shown in 错误!未找到引用源。4.

  • Page 33: Mounting The Switch On A Table

    Hardware Installation and Reference Guide Product Installation Use the expansion screws to secure the mounting brackets on the wall, as shown in 错误!未找到引用源。5. Figure 3-5 Attaching the Switch on the Wall SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE ONLY. 3.3.3 Mounting the Switch on a Table Attach the four rubber feet to the recessed areas on the bottom of the switch, as shown in Figure 3-6.

  • Page 34: Grounding The Switch

    Hardware Installation and Reference Guide Product Installation Place the switch on the table, as shown in Figure 3-7. Figure 3-7 Mounting the Switch on the Table The device must be installed and operated in the place that can restrict its movement. Grounding the Switch The switch has a PGND on the back panel.

  • Page 35: Connecting The External Port Cables

    Hardware Installation and Reference Guide Product Installation To guarantee the security of the body and the device, the switch must be well-grounded. The grounding resistance for combined grounding should be less than 1 Ω. The maintenance personnel shall check whether or not the AC socket powering the switch is well connected to the building protective earth (PE).

  • Page 36: Checking After Installation

    Hardware Installation and Reference Guide Product Installation Checking after Installation Before checking the installation, switch off the power supply so as to avoid any personal injury or damage to the component due to connection errors. ◼ Check that the ground line is connected. ◼...

  • Page 37: System Debugging

    Hardware Installation and Reference Guide System Debugging 4 System Debugging Establishing the Environment Establishing Environment Connect the PC to the Ethernet port of the switch through the cable, as shown in Figure 4-1. Figure 4-1 Configuration Environment Connecting the Cable ⚫...

  • Page 38: Startup Check

    Hardware Installation and Reference Guide System Debugging ⚫ Open a browser and enter 192.168.1.200 into the address bar of the browser. Press Enter to navigate to the login page. Enter username admin and password admin. Click Sign In. Startup Check 4.2.1 Checking before the Device is Powered on ⚫...

  • Page 39: Web Configuration

    Hardware Installation and Reference Guide WEB Configuration 5 WEB Configuration Connect the PC to the switch. Configure the PC with an IP address 192.168.1.xxx. Please note that 192.168.1.200 is in use by the switch. Open a command window by entering cmd in the Windows Start menu and then enter ping 192.168.1.200. Open a browser, enter 192.168.1.200 into the address bar of the browser and press Enter.

  • Page 40: Maintenance And Troubleshooting

    Troubleshooting Common Faults Symptom Possible Causes Solution Forgetting the A password is manually configured but Please contact Ruijie Networks Customer Service management interface it is forgotten. Department for technical support. login password The status indicator is The power supply module does not...
  • Page 41 Hardware Installation and Reference Guide Maintenance and Troubleshooting has no common working mode with the connected switch. The Rx and Tx ends are connected Switch the Rx and Tx ends of the optical fiber. reversely. Replace the optical module with one of the The interconnected optical module type matched type.

  • Page 42: Appendix A Connectors And Connection Media

    Hardware Installation and Reference Guide Appendix A Connectors and Connection Media Appendix A Connectors and Connection Media 1000BASE-T/100BASE-TX/10BASE-T Ports The 1000BASE-T/100BASE-TX/10BASE-T is a port that supports adaptation of three rates, and automatic MDI/MDIX Crossover at these three rates. The 1000BASE-T complies with IEEE 802.3ab, and uses the cable of 100-ohm Category-5 or Supper Category-5 UTP or STP, which can be up to 100 m.

  • Page 43: Optical Fiber Connection

    Hardware Installation and Reference Guide Appendix A Connectors and Connection Media Optical Fiber Connection For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection according to the fiber module connected. The connection schematic diagram is shown in Figure A-4: Figure A-4 Optical Fiber Connections...

  • Page 44: Appendix B Mini-Gbic Module

    You can select the Mini-GBIC module to suit your specific needs. The models and technical specifications of some Mini-GBIC modules are listed below. For details, see Ruijie Transceiver Installation and Reference Guide. Table B-1 Models and Technical Specifications of the 1000M Mini-GBIC(SFP) Module...
  • Page 45 Hardware Installation and Reference Guide Appendix B Mini-GBIC Module Mini-GBIC-ZX80 1550 Mini-GBIC-ZX100 1550 SDH155-SFP-SX-MM850 SDH155-SFP-SX-MM1310 1310 SDH155-SFP-LH15-SM1310 1310 SDH155-SFP-LH40-SM1310 1310 SDH155-SFP-LH80-SM1550 1550 GE-SFP-SX -9.5 GE-SFP-LX 1310 -9.5 Table B-2 Models of 1000M SFP Copper Module Standard Model DDM (Yes/No) 1000Base-T Mini-GBIC-GT Table B-3 Module Cabling Specification Model...
  • Page 46 Hardware Installation and Reference Guide Appendix B Mini-GBIC Module Mini-GBIC-GT RJ45 Category 5 (or above ) UTP or STP 100m For the optical module with transmission distance exceeding 40 km and more, one on-line optical attenuator should be added on the link to avoid the overload of the optical receiver when short single-mode optical fibers are used. Optical modules generate laser.

  • Page 47: Appendix C Lightning Protection

    Hardware Installation and Reference Guide Appendix C Lightning Protection Appendix C Lightning Protection Installing AC Power Arrester (lightning protection cable row) The external lightning protection cable row shall be used on the AC power port to prevent the switch from being struck by lightning when the AC power cable is introduced from the outdoor and directly connected to the power port of the switch.
  • Page 48 Hardware Installation and Reference Guide Appendix C Lightning Protection During the switch usage, the Ethernet port arrester shall be connected to the switch to prevent the switch damage by lightning before the outdoor network cable connects to the switch. Tools: Cross or straight screwdriver, Multimeter, Diagonal pliers Installation Steps: Tear one side of the protection paper for the double-sided adhesive tape and paste the tape to the framework of the Ethernet port arrester.
  • Page 49 Hardware Installation and Reference Guide Appendix C Lightning Protection ⚫ Reversed direction of the arrester installation. You shall connect the external network cable to the “IN” end and connect the switch Ethernet port to the “OUT” end. ⚫ Poor arrester grounding. The length of the grounding line should be as short as possible to ensure that it is in good contact with the switch grounding terminal.

  • Page 50: Appendix D Cabling Recommendations In Installation

    Appendix D Cabling Recommendations in Installation When XS-S1930J series switches are installed in standard 19-inch cabinets, the cables are tied in the binding rack on the cabinet by the cabling rack, and top cabling or bottom cabling is adopted according to the actual situation in the equipment room.
  • Page 51 Hardware Installation and Reference Guide Appendix D Cabling Recommendations in Installation ⚫ Cables of different types (such as power cords, signal cables, and grounding cables) should be separated in cabling and bundling. When they are close, crossover cabling can be adopted. In the case of parallel cabling, power cords and signal cables should maintain a space equal to or greater than 30 mm.
  • Page 52 Hardware Installation and Reference Guide Appendix D Cabling Recommendations in Installation ⚫ When cables need to bend, you should first bundle them up. However, the buckle cannot be bundled within the bend area. Otherwise, significant stress may be generated in cables, breaking cable cores. As shown in Figure D-3. Figure D-3 Bundling Up Cables (3) ⚫...
  • Page 53 Hardware Installation and Reference Guide Appendix D Cabling Recommendations in Installation ⚫ The hard power cable should be fastened by the terminal connection area to prevent stress. ⚫ Do not use self-tapping screws to fasten terminals. ⚫ Power cables of the same type and in the same cabling direction should be bundled up into cable bunches, with cables in cable bunches clean and straight.

  • Page 54: Appendix E Site Selection

    Hardware Installation and Reference Guide Appendix E Site Selection Appendix E Site Selection ⚫ The machine room should be at least 5km away from the heavy pollution source such as the smelter, coal mine and thermal power plant, 3.7km away from the medium pollution source such as the chemical industry, rubber industry and electroplating industry, and 2km away from the light pollution source such as the food manufacturer and leather plant.
