US Robotics USR5462 User Manual

802.11g 54mbps router
Hide thumbs Also See for USR5462:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual

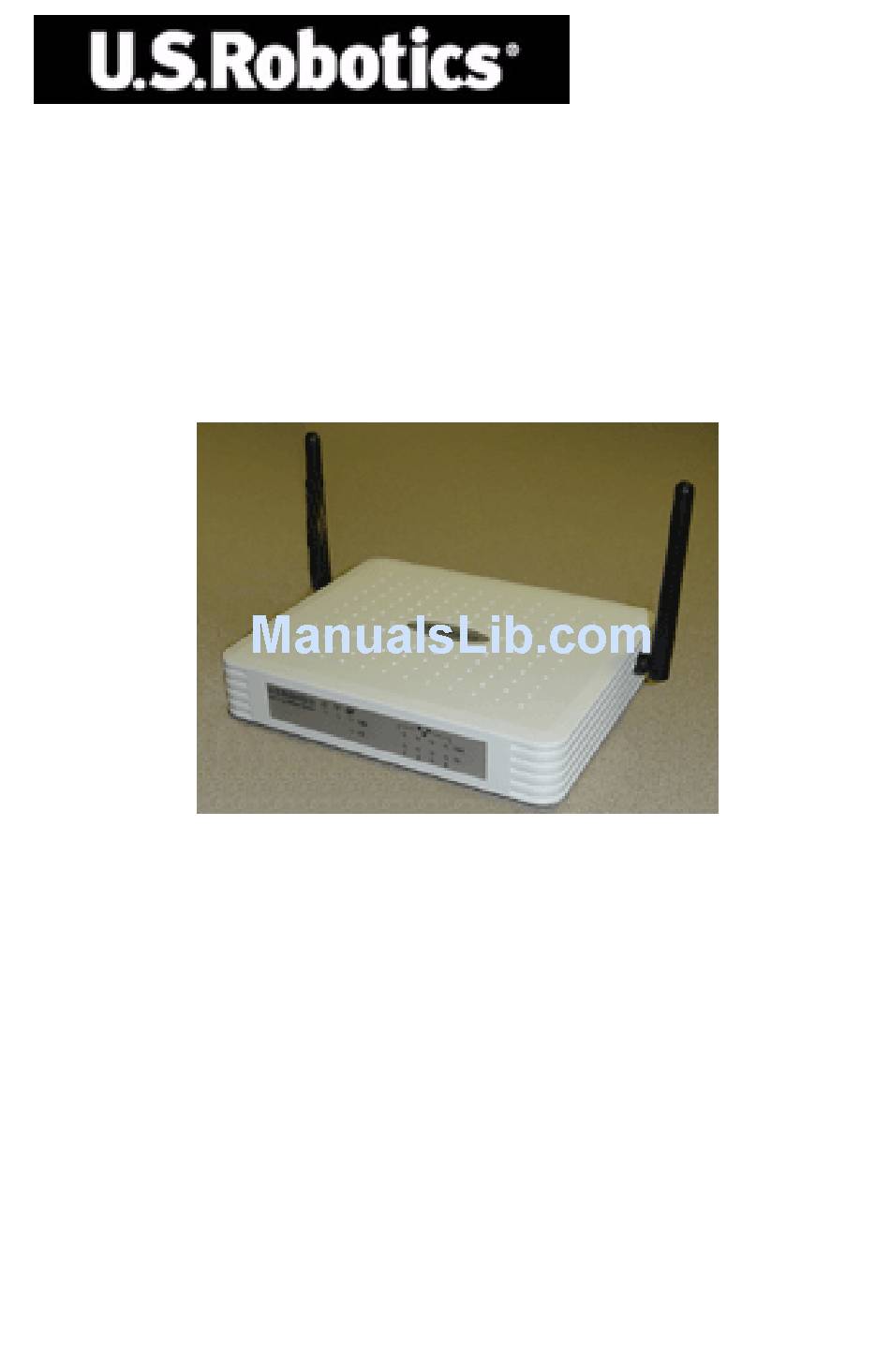

U.S. Robotics 802.11g 54Mbps Router
USER GUIDE
rev 1.0
9-04
9
R24.0769.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USR5462 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for US Robotics USR5462

Summary of Contents for US Robotics USR5462

  • Page 1 U.S. Robotics 802.11g 54Mbps Router USER GUIDE rev 1.0 9-04 R24.0769.00...
  • Page 2 Trademarks: Other product and company names are trademarks or registered trademarks of their respective holders.

  • Page 3: Table Of Contents

    ABLE OF About the 802.11g 54Mbps Router ... . 1 LED Indicators ........1 Front and Rear Panels .

  • Page 5: Led Indicators

    BOUT THE Congratulations on your purchase of the 802.11g 54Mbps Router. U.S. Robotics is proud to provide you with a powerful yet simple communication device for connecting your home network or local area network (LAN) to the Internet. LED Indicators The 802.11g 54Mbps Router includes status LED indicators, as described in the following figure and table.

  • Page 6: About The 802.11G 54Mbps Router

    About the 802.11g 54Mbps Router Status Flashing LAN1-4 Front and Rear Panels The following figure shows the components of the 802.11g 54Mbps Router: Figure 1. Front and Rear Panels 802.11g 54Mbps Router Item Description LEDs Power, WLAN, WAN and LAN port status indicators. (See “LED Indicators”...

  • Page 7: System Requirements

    Item Description Reset Button Use this button to reset the power and restore the default factory settings. Fast Ethernet ports (RJ-45). Connect devices (such as a PC, hub or switch) on your local area network to these ports. (LAN) Ports System Requirements You must have an ISP that meets the following minimum requirements:...

  • Page 8: Installing The 802.11G 54Mbps Router

    Technical Support department, you will need this number to receive assis- tance. Model Number USR5462 Note: Be sure to find out what letter your CD-ROM drive uses before you begin installing your new product. You will need to know this to properly install your software.
  • Page 9 Installing the 802.11g 54Mbps Router Note: Some cable or DSL modems can be connected using either a USB cable or an Ethernet cable. To connect your cable or DSL modem to the 802.11g 54Mbps Router, you must use an Ethernet cable. Step Two: Connect your 802.11g 54Mbps Router to your computer and con- nect the power supply Connect one end of the supplied Ethernet cable to your computer’s Ether-...
  • Page 10 Installing the 802.11g 54Mbps Router Turn on your cable or DSL modem. Connect the included power adapter to the power socket on the 802.11g 54Mbps Router. Plug the power adapter into a standard power outlet. Turn on your computer. Step Three: Configure the basic connection settings Note: You will also need to verify that the HTTP Proxy feature of your web browser is disabled.
  • Page 11 Launch a Web browser. In the location or address line of your Web browser, type http://192.168.2.1 to access the Web User Interface. After the connection is established, you will see the Web User Interface. The default password is admin. Click Login. When you access the Web User Interface, click the Setup Wizard.
  • Page 12 Installing the 802.11g 54Mbps Router When you are finished configuring the basic connection settings, you should now have Internet access. Launch a Web browser and register your product at www.usr.com/productreg If the page loads, you are finished with the installation procedure. If the page does not load, refer to the Trou- bleshooting section.

  • Page 13: Configuring The 802.11G 54Mbps Router

    ONFIGURING THE The 802.11g 54Mbps Router can be configured by Windows Internet Explorer 5.5 or above. Using the Web User Interface, you can configure the 802.11g 54Mbps Router and view statistics to monitor network activity. Before you attempt to log into the web-based administration, please verify the following.

  • Page 14: Making Configuration Changes

    Configuring the 802.11g 54Mbps Router The home page displays the Setup Wizard and Advanced Setup options. The 802.11g 54Mbps Router’s user interface features a Setup Wizard and an Advanced Setup section. Use the Setup Wizard if you want to quickly set up the 802.11g 54Mbps Router for use with a cable modem or DSL modem.

  • Page 15: Setup Wizard

    Setup Wizard Time Zone Click on the Setup Wizard picture. The first item in the Setup Wizard is Time Zone setup. For accurate timing of client filtering and log events, you need to set the time zone. Select your time zone from the drop-down list, and click NEXT.

  • Page 16: Broadband Type

    Broadband Type Select the type of broadband connection you have. If you have any questions regarding what type of service Note: you have, check with your Internet Service Provider for more information. For a cable modem connection see the following page. For a Fixed-IP xDSL connection see “Fixed-IP xDSL”...
  • Page 17 Cable Modem or xDSL Router Your Internet Service Provider may have given you a host name. If so, enter it into the field. Your connection may require you to clone your MAC address. If required, enter the MAC address of the network adapter that was used to setup your cable connection.
  • Page 18 Configuring the 802.11g 54Mbps Router PPPoE xDSL Enter the PPPoE User Name and Password assigned by your Service Provider. The Service Name is normally optional, but may be required by some service providers. Leave the Maximum Transmission Unit (MTU) at the default value (1454) unless your service provider has specified otherwise.
  • Page 19 Setup Wizard Point-to-Point Tunneling Protocol (PPTP) Point-to-Point Tunneling Protocol is a connection method used for xDSL connections in Europe. It can be used to join different physical networks using the Internet as an intermediary. If you have been provided with the information as shown on the screen, enter the PPTP Account name and password, Host Name, Service IP Address, the assigned IP Address, and Subnet Mask.
  • Page 20 Configuring the 802.11g 54Mbps Router BigPond If you use the BigPond Internet Service which is available in Australia, enter the User Name, Password and Authentication Service Name for BigPond authentication. Click Finish to complete the setup.

  • Page 21: Advanced Setup

    Advanced Setup Use the Web User Interface to define system parameters, manage and control the 802.11g 54Mbps Router and its ports, or monitor network conditions. The following table outlines the selections available from this program. Menu System Wireless Firewall DDNS UPnP Tools Status...

  • Page 22: System

    Configuring the 802.11g 54Mbps Router System Time Zone Set the time zone and time server for the 802.11g 54Mbps Router. This information is used for log entries and client access control. • Set your local time zone settings Select your time zone from the drop-down list, and set the start and end dates if your area requires daylight savings.
  • Page 23 Advanced Setup Set date and time manually • For manually setting the date and time, configure the date by selecting the options from the drop-down list, and enter the digits for the time.
  • Page 24 Configuring the 802.11g 54Mbps Router Password Settings Use this menu to restrict access based on a password. For security you should assign your own password before exposing the 802.11g 54Mbps Router to the Internet. (Default: admin) Passwords can contain from 3 to 12 alphanumeric characters and are case sensitive.
  • Page 25 Remote Management Remote Management allows a remote PC to configure, manage, and monitor the 802.11g 54Mbps Router using a standard web browser. Check Enable and set the IP address or IP address range of the remote host. Click APPLY. (Default: Disable) If you select Any IP Address in the Allow Access to field, Note: any host can manage the 802.11g 54Mbps Router.

  • Page 26: Wan

    Configuring the 802.11g 54Mbps Router Specify the WAN connection type provided by your Internet Service Provider, then click More Configuration to enter detailed configuration parameters for the selected connection type. Dynamic IP The Host Name is optional, but may be required by some ISPs. The default MAC address is set to the WAN’s physical interface on the 802.11g 54Mbps Router.
  • Page 27 Advanced Setup Point-to-Point Over Ethernet (PPPoE) Enter the PPPoE User Name and Password assigned by your Service Provider. The Service Name is normally optional, but may be required by some service providers. The MTU (Maximum Transmission Unit) governs the maximum size of the data packets.
  • Page 28 Configuring the 802.11g 54Mbps Router Point-to-Point Tunneling Protocol (PPTP) Point-to-Point Tunneling Protocol (PPTP) can be used to join different physical networks using the Internet as an intermediary. Using the above screen allows client PCs to establish a normal PPTP session and provides hassle-free configuration of the PPTP client on each client PC.
  • Page 29 Advanced Setup Idle Time, it will be dropped. (Default: 0 minutes) Static IP If your Internet Service Provider has assigned a fixed IP address, enter the assigned address and subnet mask for the 802.11g 54Mbps Router, then enter the gateway address of your ISP. You may need a fixed address if you want to provide Internet services, such as a web server or FTP server.
  • Page 30 BigPond BigPond is a service provider in Australia that uses a heartbeat system to maintain the Internet connection. Configure the built-in client with your user name, password and service name to get on line.
  • Page 31 Domain Name Servers map numerical IP addresses to the equivalent domain name (e.g., www.usr.com). Your ISP should provide the IP address of one or more domain name servers. Enter those addresses in this screen.

  • Page 32: Lan

    Configuring the 802.11g 54Mbps Router LAN IP – Use the LAN menu to configure the LAN IP address for the • 802.11g 54Mbps Router and to enable the DHCP server for dynamic client address allocation. • Set a period for the lease time if required. For home networks this may be set to Forever, which means there is no time limit on the IP address lease.

  • Page 33: Wireless

    Be sure you configure all of your clients to the same values. Network Name (SSID) same value as the other wireless devices in your network. (Default: USR5462) The SSID is case sensitive and can consist of up to 32 Note: alphanumeric characters.
  • Page 34 Configuring the 802.11g 54Mbps Router SSID Broadcast: easy connection with client PCs. For security reasons, disable SSID broadcast. (Default: Enable) Note: If you disable SSID, it will not show up in your site survey and in order to connect to it, a manual profile will have to be created.
  • Page 35 The available channel settings are limited by local Note: regulations. Security If you are transmitting sensitive data across wireless channels, you should enable Wi-Fi Protected Access (WPA) or Wired Equivalent Privacy (WEP) encryption. Encryption security requires you to use the same protocol set (WPA or WEP) and encryption/decryption keys for the 802.11g 54Mbps Router and all of your wireless clients.
  • Page 36 Configuring the 802.11g 54Mbps Router summary of wireless security considerations is listed in the following table. Security Client Mechanism Support Built-in support on all 802.11b and 802.11g devices WPA mode Requires WPA-enabled system and protocol driver for network adapter (native support provided in Windows XP) 802.1x mode Requires WPA-enabled...
  • Page 37 WPA Encryption Type WPA is a stronger wireless security solution than WEP. It uses a combination of 802.1x authentication and broadcast/session keys. • Pre-Shared Key/Passphrase If there is no authentication server on your SOHO network, you can issue the Pre-Shared Key to the clients that connect to the 802.11g 54Mbps Router.
  • Page 38 Configuring the 802.11g 54Mbps Router WEP Encryption Type You can choose between standard 40-bit/64-bit or the more robust 128-bit encryption. You may manually enter the keys or automatically generate encryption keys. To manually configure the keys, enter five hexadecimal pairs for each 40/64-bit key, or enter 13 pairs for the single 128-bit key.
  • Page 39 Advanced Setup If you use encryption, configure the same keys used for the 802.11g 54Mbps Router on each of your wireless clients. Note that Wired Equivalent Privacy (WEP) protects data transmitted between wireless nodes, but does not protect any transmissions over your wired network or over the Internet.

  • Page 40: Wds (Wireless Distribution System)

    Configuring the 802.11g 54Mbps Router WDS (Wireless Distribution System) The WDS provides a means to extend the range of a Wireless Local Area Network (WLAN). WDS allows an access point to establish a direct link to other access points, and stations to roam freely within the area covered by the WDS.
  • Page 41 Advanced Setup To establish a WDS connection between access points, follow the steps below. 1. Select Enable Repeater. 2. Enter the MAC Address that you are trying to create a WDS link to. 3. Click Apply.

  • Page 42: Nat - Network Address Translation

    Configuring the 802.11g 54Mbps Router NAT - Network Address Translation From this section you can configure the Address Mapping, Virtual Server, and Special Application features that provide control over the TCP/UDP port openings in the router’s firewall. This section can be used to support several Internet based applications such as web, email, FTP, and Telnet.
  • Page 43 Advanced Setup Virtual Server If you configure the 802.11g 54Mbps Router as a virtual server, remote users accessing services such as web or FTP at your local site via public IP addresses can be automatically redirected to local servers configured with private IP addresses. In other words, depending on the requested service (TCP/UDP port number), the 802.11g 54Mbps Router redirects the external service request to the appropriate server (located at another internal IP address).
  • Page 44 Configuring the 802.11g 54Mbps Router Special Applications Some applications, such as Internet gaming, videoconferencing, Internet telephony and others, require multiple connections. These applications cannot work with Network Address Translation (NAT) enabled. If you need to run applications that require multiple connections, use the following screen to specify the additional public ports to be opened for each application.
  • Page 45 Popular applications requiring multiple ports are listed in the Popular Applications field. From the drop-down list, choose the application and then choose a row number to copy this data into. Note: Choosing a row that already contains data will overwrite the current settings.

  • Page 46: Firewall

    Configuring the 802.11g 54Mbps Router Firewall The 802.11g 54Mbps Router firewall can provide access control of connected client PCs, block common hacker attacks, including IP Spoofing, Land Attack, Ping of Death, IP with zero length, Smurf Attack, UDP port loopback, Snork Attack, TCP null scan, and TCP SYN flooding.
  • Page 47 Click Add PC and define the appropriate settings for client Note: PC services (as shown in the following screen). MAC Filtering Table The MAC Filtering feature of the 802.11g 54Mbps Router allows you to control access to your network for up to 32 clients based on the Advanced Setup...
  • Page 48 Configuring the 802.11g 54Mbps Router MAC (Media Access Control) address of the client machine. This ID is unique to each network adapter. If the MAC address is listed in the table, that client machine will have access to the network. For MAC Address Control, click Yes.
  • Page 49 Advanced Setup URL Blocking To configure the URL Blocking feature, use the table below to specify the web sites (for example, www.somesite.com) and/or keywords you want to filter on your network. To complete this configuration, you will need to create or modify an access rule in “Access Control”...
  • Page 50 Configuring the 802.11g 54Mbps Router Schedule Rule The Schedule Rule feature allows you to configure specific rules based on time and date. These rules can then be used to configure more specific access control. Enable schedule-based Internet access control. 1. Click Add Schedule Rule. 2.
  • Page 51 Advanced Setup...
  • Page 52 Configuring the 802.11g 54Mbps Router Intrusion Detection • SPI and Anti-DoS (Denial-of-Service) firewall protection (Default: Enable) – The Intrusion Detection Feature limits access for incoming traffic at the WAN port. When the SPI (Stateful Packet Inspection) feature is turned on, all incoming packets will be blocked except for those types marked with a check in the Stateful Packet Inspection section.
  • Page 53 Advanced Setup DMZ (Demilitarized Zone) If you have a client PC that cannot run an Internet application properly from behind the firewall, then you can open the client up to unrestricted two-way Internet access. Enter the Public IP address of the DMZ host to this screen.

  • Page 54: Ddns (Dynamic Dns) Settings

    Configuring the 802.11g 54Mbps Router DDNS (Dynamic DNS) Settings Dynamic DNS (DDNS) provides users on the Internet with a method to tie their domain name to the router or server. DDNS allows your domain name to follow your IP address automatically by having your DNS records changed when your IP address changes.

  • Page 55: Upnp (Universal Plug And Play) Setting

    Advanced Setup For using DDNS, click the Enable radio button, select the DDNS Service type, and then enter the user name, pass key (password), host name or server IP, and email address. Mail Exchanger (MX) and Backup MX provides you with flexible email configurations.
  • Page 56 Configuring the 802.11g 54Mbps Router obtain an IP address • • convey its capabilities and learn about the presence and capabilities of other devices.

  • Page 57: Tools

    Tools Use the Tools menu to back up the current configuration, restore a previously saved configuration, restore factory settings, update firmware, and reset the 802.11g 54Mbps Router. Tools - Configuration Tools • Backup Router Settings – Saves the 802.11g 54Mbps Router’s configuration to a file.
  • Page 58 Configuring the 802.11g 54Mbps Router Tools - Firmware Upgrade Use this screen to update the firmware or user interface to the latest version. In the Firmware File field, click Browse to look for the downloaded file. Click APPLY. Check the Status page Information section to confirm that the upgrade process was successful.
  • Page 59 Tools - Reset Click APPLY to reset the 802.11g 54Mbps Router. The reset will be complete when the power LED stops blinking. If you depress the Reset button on the rear panel, the Note: 802.11g 54Mbps Router performs a power reset. If the button is depressed for over five seconds, all the LEDs will illuminate and the factory settings will be restored.

  • Page 60: Status

    Configuring the 802.11g 54Mbps Router Status The Status screen displays WAN/LAN connection status, firmware, and hardware version numbers, illegal attempts to access your network, as well as information on DHCP clients connected to your network. The following items are included on this screen: Section INTERNET Release...

  • Page 61: Troubleshooting

    The information outlined in this section describes some useful steps for getting your computer and the 802.11g 54Mbps Router online. A. Verify your connection to the 802.11g 54Mbps Router. If you are unable to access the 802.11g 54Mbps Router’s web-based administration pages, then you may not be properly connected or configured.
  • Page 62 Troubleshooting If you have an IP address that starts with 169.254.xxx.xxx then see the next section. If you have another IP address configured, then see section C. (Windows 98 and Me)To determine your TCP/IP configuration status please follow the steps below: 1.
  • Page 63 Troubleshooting If you have a green lit LED, open up a DOS window as described in the previous section and type ipconfig/renew. If you are still unable to get an IP address from the 802.11g 54Mbps Router, reinstall your network adapter. Refer to your adapter manual for information on how to do this.
  • Page 64 Troubleshooting 3. Then type ipconfig/renew. D. The 10/100 LED does not light after a connection is made. 1. Check that the host computer and the 802.11g 54Mbps Router are both powered on. 2. Be sure the network cable is connected to both devices. 3.
  • Page 65 3. If authentication is being performed through a RADIUS server, ensure that the clients are properly configured on the RADIUS server. 4. If authentication is being performed through IEEE 802.1x, be sure the wireless users have installed and properly configured 802.1x client software.
  • Page 66 Troubleshooting 1. Open Internet Explorer. Click Tools, and then select Internet Options. 2. In the Internet Options window, click the Connections tab. 3. Click the LAN Settings button. 4. Clear all the check boxes and click OK to save these LAN settings changes.

  • Page 67: Specifications

    Below is an outline of the technical specifications for the USR5462. Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.11b IEEE 802.11g WAN Interface 10BASE-T/100BASE-TX LAN Interfaces 10BASE-T/100BASE-TX 4 RJ-45 ports: LAN data transfer rate is up to 10/20 Mbps (10BASE-T...
  • Page 68 Specifications Indicator Panel Power, WLAN, WAN (Link, Activity), LAN (Link/Activity, Speed - 10/100 Mbps) Dimensions 130 x 85 x 32 mm (5.12 x 3.35 x 1.26 in.) Weight 370 g (13.05 oz.) Input Power 12V DC, 1000 mA Maximum Current 0.04 A max.
  • Page 69 EN 61000-3-2/3 EN 61000-4-2/3/4/5/6/8/11 Safety CSA/NRTL (UL1950, CSA 22.2.950) GS (EN60950) CB (IEC60950) Specifications...
  • Page 70 Specifications...
