WisyCom MTP61 User Manual page 11

MTP61 multi-band miniature transmitter

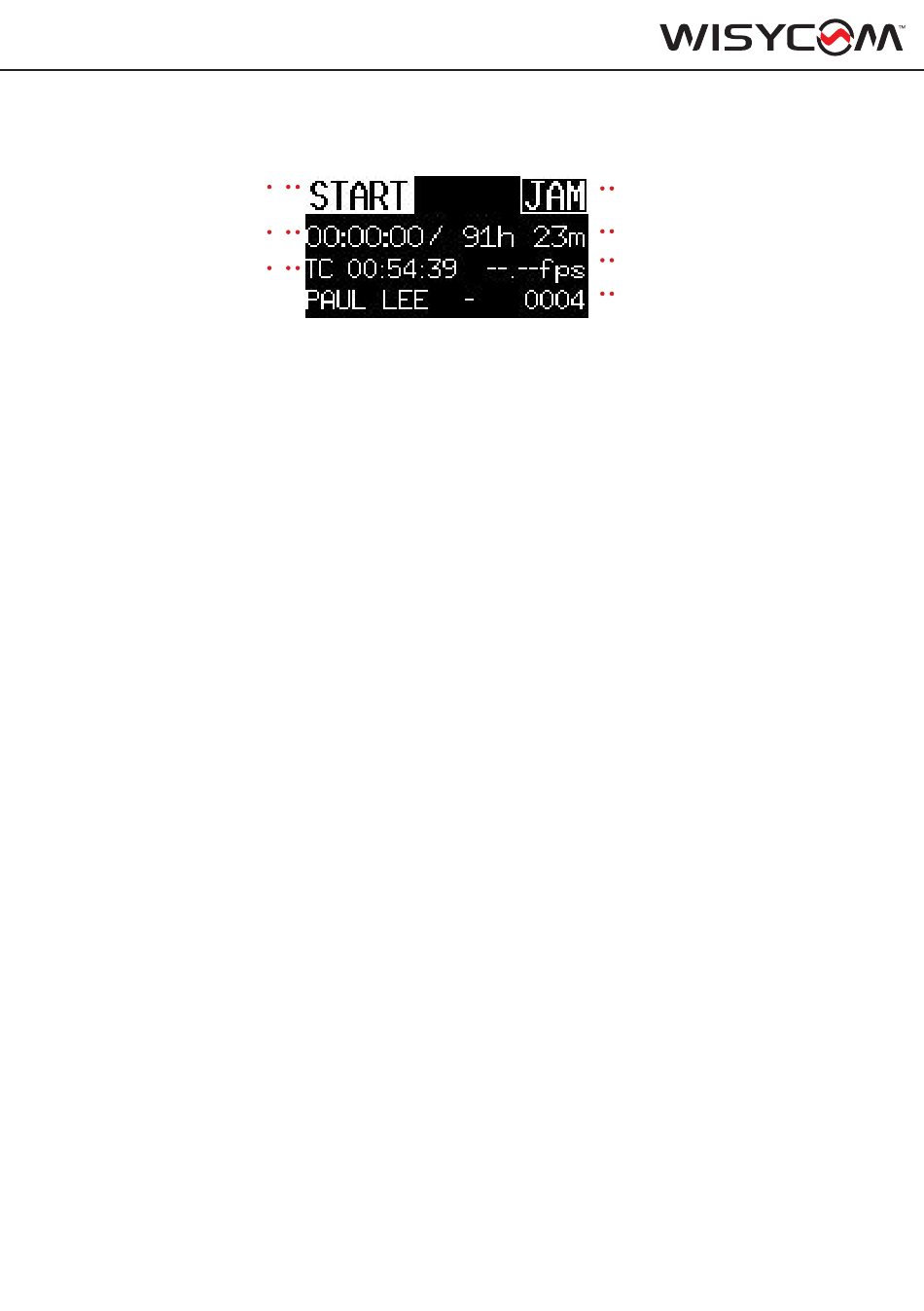

Recording short cut:
Push UP and DOWN arrows together to enter on the quick RECORDING menu.
to start recording
elapsed time
time code
Use arrows to move the cursor between START/STOP and JAM function.
Push SEL button to activate the function.
The MTP61 records 32-bit float RF64 WAV (over 4 GB) files at 48 kHz sampling rates.
Bit Depth can be change to 24 bit using "Recorder > BitDepth" menu.
The file name format is "Transmitter name-<sequential number>.WAV or Transmitter
name_<Trace number><Shot>_<sequence number>.WAV according to the Name setting on Re-
corder>SD Card menu.
All files are recorded in a folder with the tranmsitter name.
example:
Transmitter name: PAUL LEE
Recorder trace 4 is saved in the folder PAUL LEE with the name PAUL LEE_04.wav;
Transmitter name: Transmitter
Recorder trace 4, shot 0, sequence 02 is saved in the folder Transmitter with the name Transmitter_04A_02.wav
Jamming Timecode
The MTP61 accepts timecode from external LTC sources by wire or via Bluetooth with Tentacle
Sync-E. Set the proper way in the "Recorder > TC Setup > Source" menu.
The timecode value and frame rate are taken from incoming LTC source.
Jammed timecode values are held for up to six hours after powering off (with batteries inside),
and up to one hour after the battery has been removed. This allows for time to swap batteries
without having to re-jam timecode.
Wire Jam:
•
connect a valid LTC source to the LEMO audio connector of MTP61
•
enter on the Recorder>TC setup menu and set Jam to ON or use the recording short cut
pushing UP and DOWN arrows together and active JAM funtion.
Pinout for TC audio cable:
Audio cable with LEMO 3pin to Stereo jack connector:
- LEMO pin 3 (AF) to the Left (tip) of Stereo jack
- LEMO pin 1 (GND) to the Ground (sleeve) of Stereo jack
Audio cable with LEMO 3pin to BNC connector:
- LEMO pin 3 (AF) to the BNC center pin
- LEMO pin 1 (GND) to the BNC shell
to activate the JAM
remaining time
Frame rate
recording filename
11
