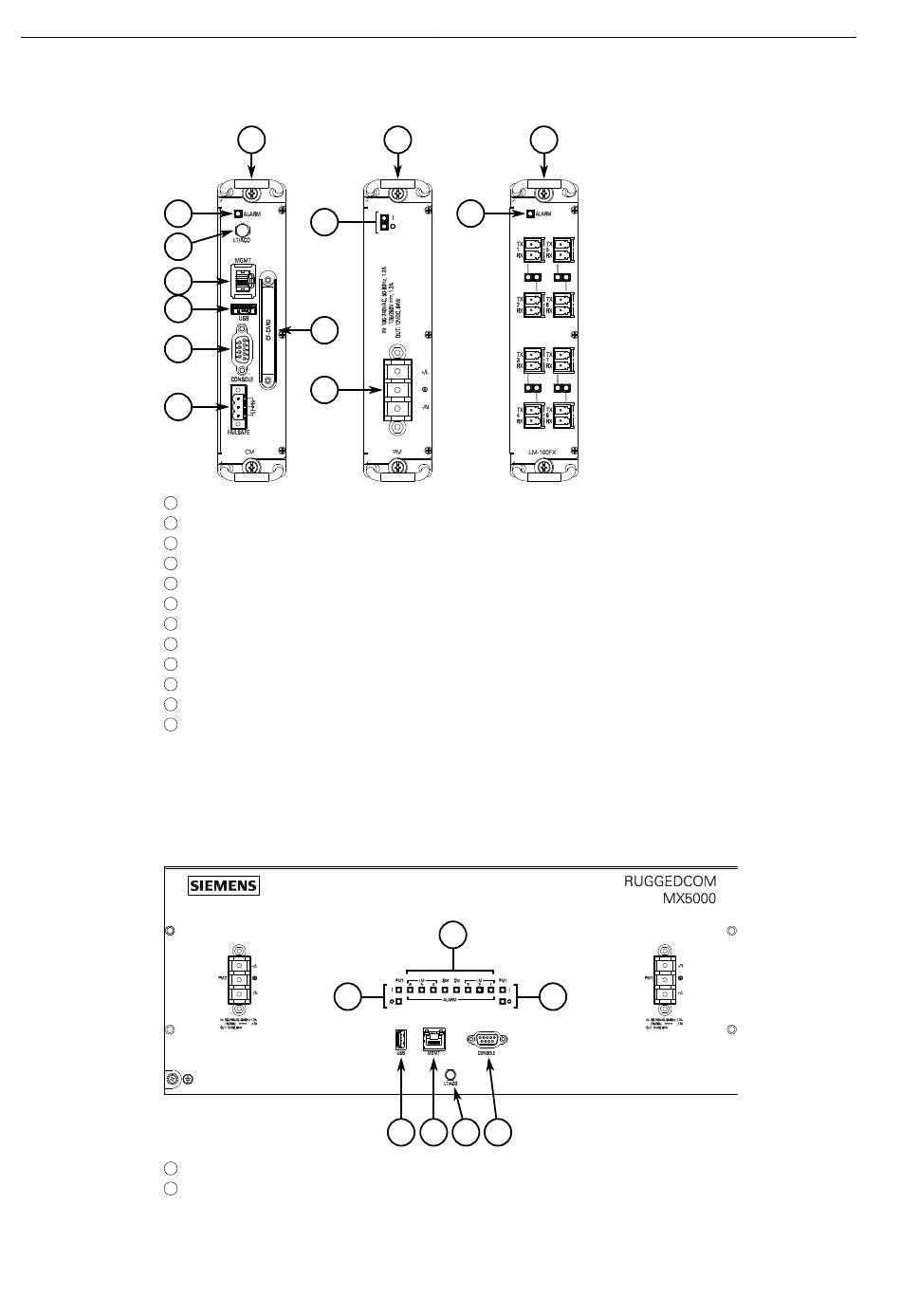

Figure 1.1
When the RUGGEDCOM MX5000RE is configured for rack front mounting, these
ports, controls and LEDs are located on the front panel.
1
2
RUGGEDCOM MX5000RE
Equipment Manual, 11/2023, C79000-G8976-1060-17
1
11
10
12
Control Module
Power Supply Module
Line Module (Typical)
Alarm Indicator LED
Lamp Test/Alarm Cut-Off (LT/ACO) Button
Management Ethernet Port
Utility USB Port
RS232 Serial Console Port (DB9)
Failsafe Alarm Relay
CompactFlash Card Port
Power Supply Module Indicator LEDs
Power Supply Terminal Block
RUGGEDCOM MX5000RE Modules
1
Power Supply Module Indicator LEDs
Alarm Indicator LEDs
2 3
4
2
1
3 4 5 6
Introduction
1.2 Description
