2.15.1 Installing/removing power supply modules
The RUGGEDCOM MX5000 supports dual redundant power supplies that can be
installed in any combination.
1
2

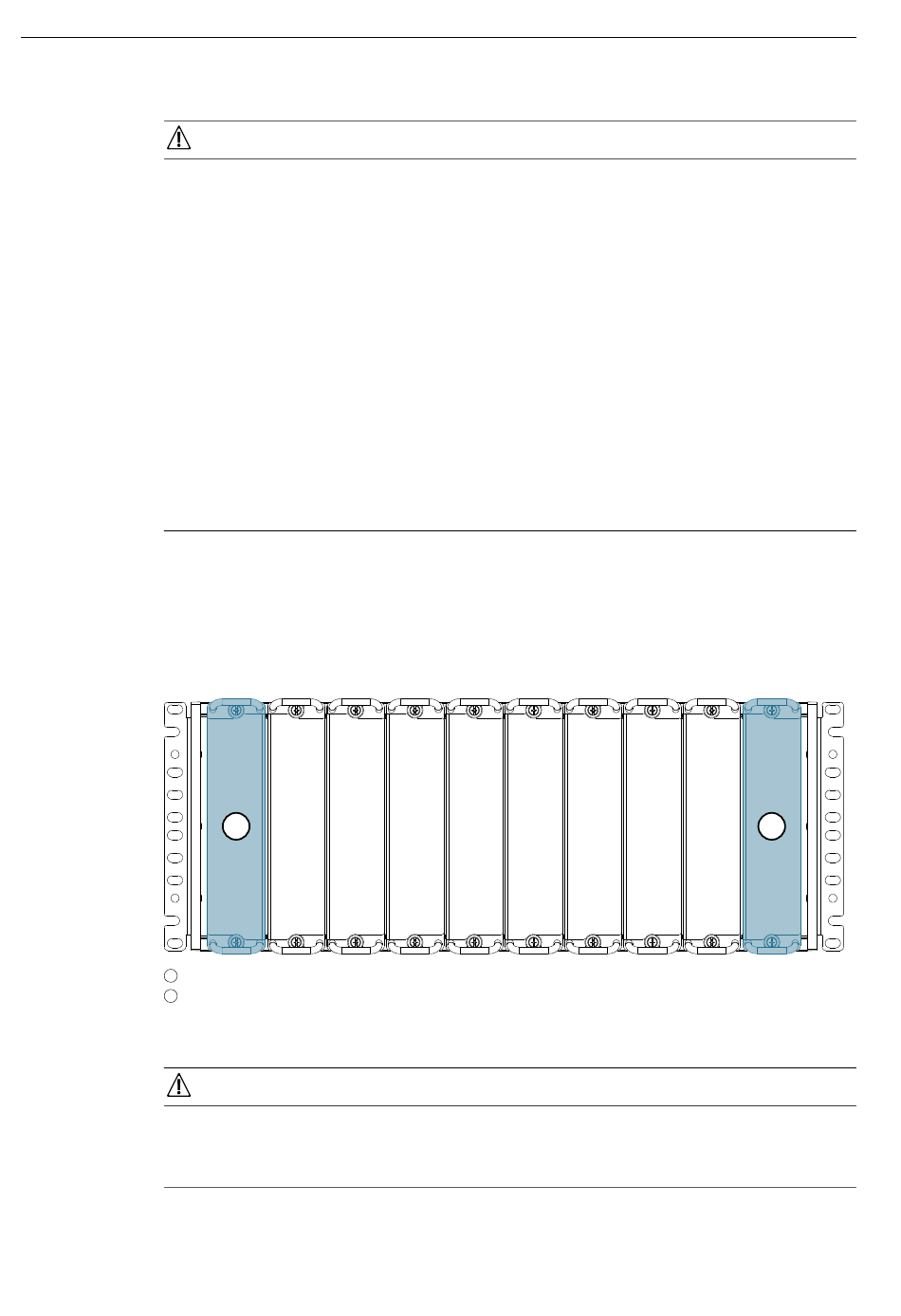

Figure 2.17
Contamination hazard – risk of equipment damage
Prevent the ingress of water, dirts and other debris that may lead to premature
equipment failure. Always make sure slots are not left empty.
RUGGEDCOM MX5000RE
Equipment Manual, 11/2023, C79000-G8976-1060-17
NOTICE
In an AC/DC power arrangement, the placement of the AC and DC power
modules is not slot-dependent. Either power module slot can be used for AC or
DC power.
For maximum redundancy in a dual power module configuration, use two
independent power sources.
Use minimum #16 gage copper wiring when connecting terminal blocks.
For 125/230 VAC rated equipment, an appropriately rated AC circuit breaker
must be installed.
For 125/250 VDC rated equipment, an appropriately rated DC circuit breaker
must be installed.
It is recommended to provide a separate circuit breaker for each power module
module.
Equipment must be installed according to applicable local wiring codes and
standards.
1
Power supply module (PS1)
Power supply module (PS2)
Power supply modules
NOTICE
2.15.1 Installing/removing power supply modules
Installing the Device
2
