Shadowspec SERENITY ROTATING CANTILEVER UMBRELLA Owner's Manual page 25

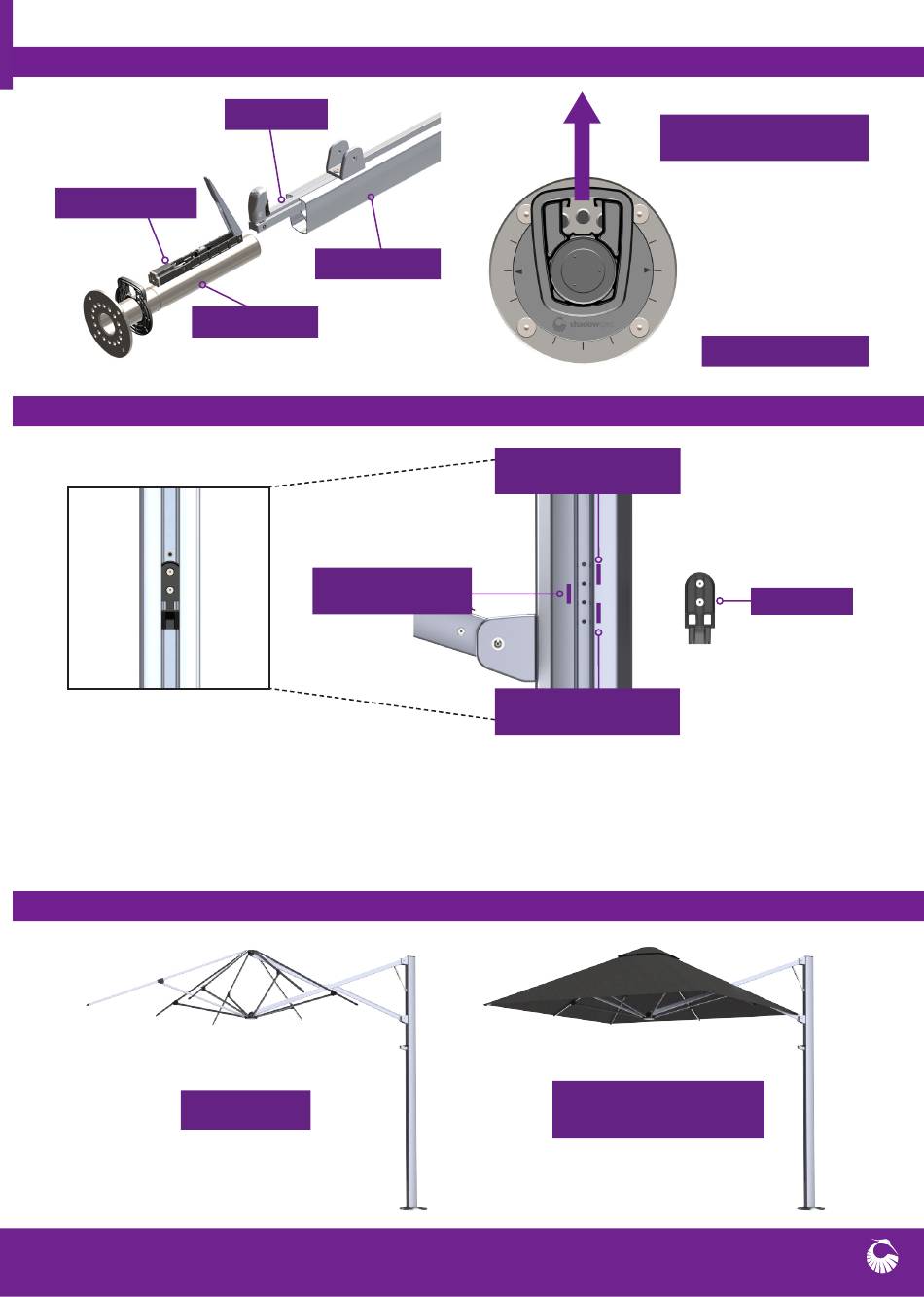

Figure M - Carriage and Rotation Lock Lever Assembly
Rotation Lock Lever
Serenity Spigot
Figure N - Top Catch Permanent Operational Position
Note: The Top Catch can be moved to adjust the tightness of your canopy. The Middle position is the factory default
position, the Upper Position will tighten the canopy and the Bottom position will loosen the Fabric Canopy.
Tip:
Fabrics are malleable and stretch over their life time, you may find that down the line, you may need to adjust
your top catch to maintain taughtness
Figure O - Fabric Canopy Installation - Before and After
Serenity Frame
Carriage
Serenity Mast
Middle Position
(Default)
Serenity Umbrella Frame
Upper Position
(Tighten Fabric Canopy)
Bottom Position
(Loosen Fabric Canopy)
Serenity Frame and Fabric
Canopy installed
will face in this direction
Installation Orientation
Top Catch
25
