Daily Use; Temperatures - Danfoss ECL Comfort 110 Operating Manual

Daily use

Temperatures

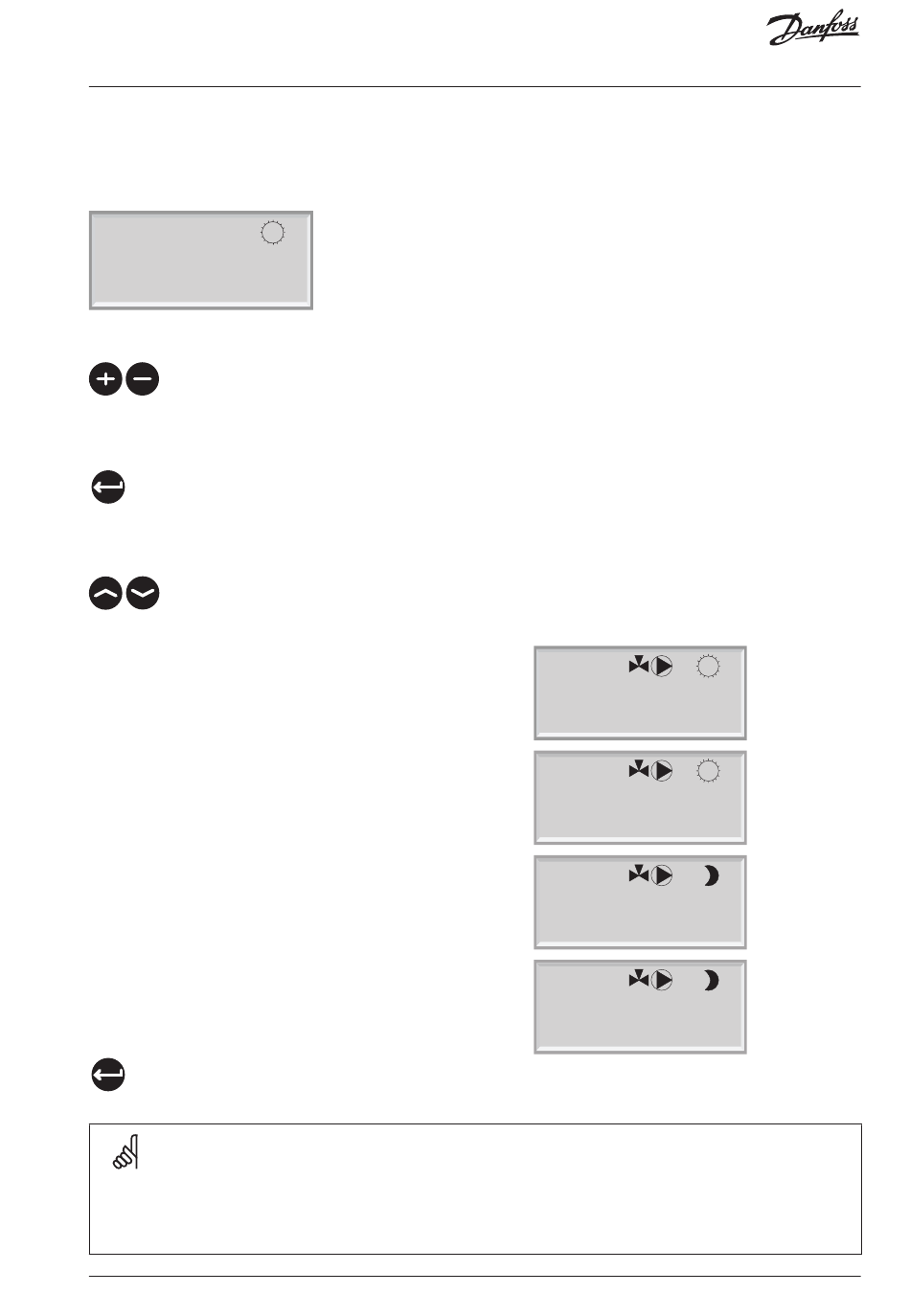

Push any button to switch on the backlight.
Temp. 48@½
Mode COMFORT
Setting the desired DHW temperature
Change the desired temperature.
Temperature overview
2 sec.
Push the button to see the sensor (S3, S4, S2) temperatures, calculated Xp and flow switch
(FS) status.
Change between the temperature displays:
S3:
Actual flow temperature
Desired flow temperature
S4:
Actual return temperature
Desired return temperature limitation
Calculated Xp, based on S2 temperature
Actual supply temperature
Flow switch (FS) not activated = OFF
Flow switch (FS) activated = ON
Push to exit 'Temperature overview'.
If the temperature value is displayed as
"- -" the sensor in question is not connected.
"- - -" the sensor is short-circuited.
