Electrical Connections - 230 V A.c. - In General - Danfoss ECL Comfort 110 Operating Manual

Installation

Electrical connections - 230 V a.c. - in general

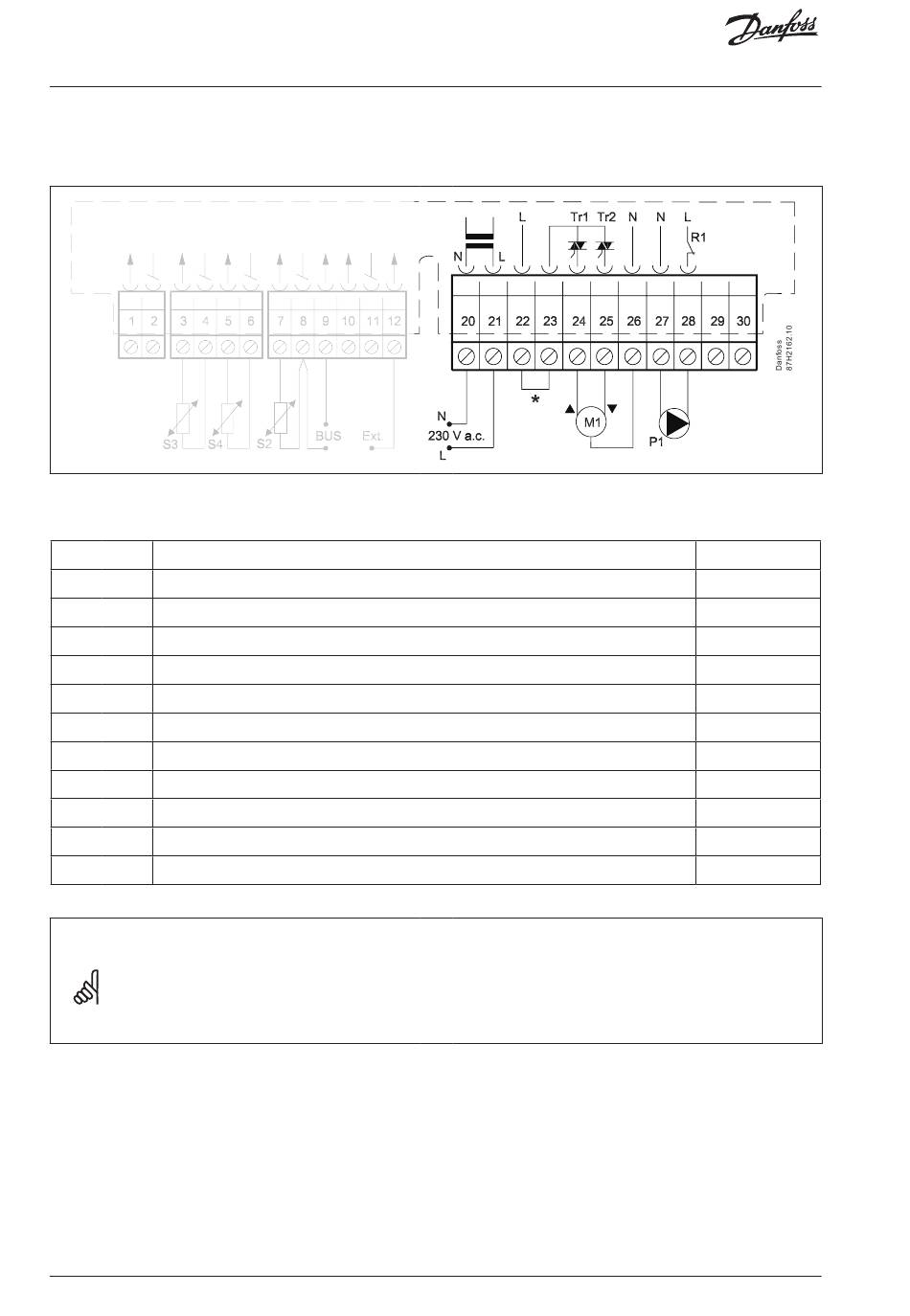

* Optional connections for safety thermostat
Terminal Description
20 Supply voltage 230 V a.c. - neutral (N)
21 Supply voltage 230 V a.c. - live (L)
22 Optional connections for safety thermostat
23 Optional connections for safety thermostat
24 M1 Actuator - open
25 M1 Actuator - close
26 M1 Actuator - neutral
27 P1 Circulation pump - neutral
28 P1 Circulation pump - live (relay R1)
29 Not to be used
30 Not to be used
Wire cross section: 0.5 - 1.5 mm
Incorrect connection can damage the TRIAC outputs.
