FMM640 First Start
Main Page
>
EOL Products

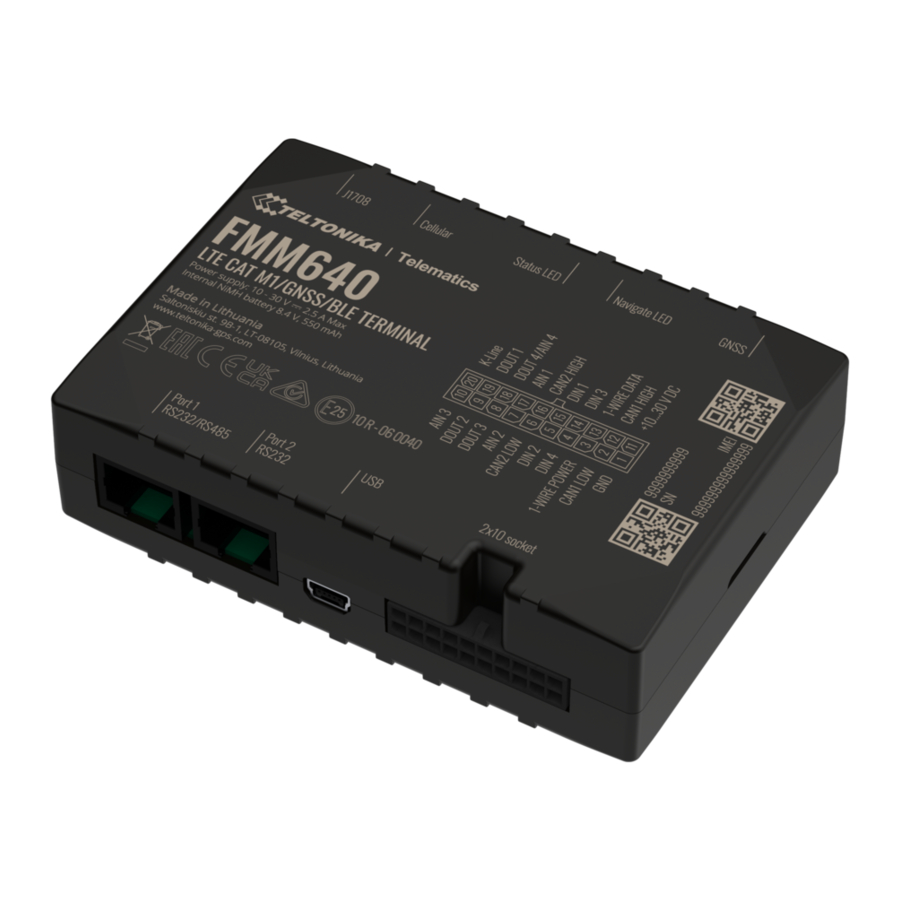

Leading LTE CAT M1/GNSS/BLE Terminal for advanced applications
Contents
1 How to insert SIM card and connect the battery
How to insert SIM card and connect the battery
1.
Unscrew 4 screws counterclockwise that are located on the bottom of the device.
2.
Remove the cover.
Insert SIM card as shown with PIN request disabled or read
3.
later in
Teltonika
SIM slot 1 is closer to PCB, SIM slot 2 is the upper one.
Connect battery as shown to device.
4.
5.
After configuration, see
6.
Screw in all screws. Device is ready to be mounted.
SIM card insertion/removal must be performed when device is powered off – external
voltage and internal battery disconnected. Otherwise SIM card might be damaged or device
will not detect it.
>
FMM640
> FMM640 First Start
Configurator. Make sure that SIM card cut-off corner is pointing outwards.
"PC Connection
(Windows)", attach device cover back.
Security info
how to enter it
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teltonika FMM640
Summary of Contents for Teltonika FMM640
- Page 1 Leading LTE CAT M1/GNSS/BLE Terminal for advanced applications Contents 1 How to insert SIM card and connect the battery 2 How to insert microSD card into FMM640 3 2x10 socket pinout 3.1 PC Connection (Windows) 3.2 How to install USB drivers (Windows) 3.3 Configuration (Windows)
- Page 2 When 2 SIM cards are used simultaneously risk is mitigated as well - when SIM1 is inserted, a greater pressure is applied for SIM2, so SIM parts are harder to come lose How to insert microSD card into FMM640 Push microSD card lock case.
- Page 3 K-LINE K-LINE interface for online Tachograph Vehicle Data transfer PC Connection (Windows) Power-up FMM640 with DC voltage 10-30 V power supply using supplied power cable. LED’s should start blinking, see “FMM640 LED status”. Connect device to computer using Mini-USB cable connection and install USB drivers, see "How to install USB drivers...
- Page 4 Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. Note: on Windows 7 systems, an additional driver for FMM640 support must be installed. Driver can be found here. Configuration (Windows) At first FMM640 device will have default factory settings set.
- Page 5 Various and etc. FMM640 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality: Load from device –...
- Page 6 If device has made a record it is sent to the server every 120 seconds After successful SMS configuration, FMM640 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters.
- Page 7 GND vehicle computer. Connecting the GND at an arbitrary point to the mass of the car is unacceptable, as static and dynamic potentials on the line GND will be unpredictable, which can lead to unstable FMM640 operation and even its failure.
- Page 8 The device must be firmly fastened in a predefined location. The programming must be performed using a PC with autonomic power supply. The device is susceptible to water and humidity. Installation and/or handling during a lightning storm is prohibited. https://teltonika-gps.com/product/fmm640...
