Teltonika FMC125 First Start-Up Quick Start Manual

Teltonika FMC125 First Start-Up Quick Start Manual

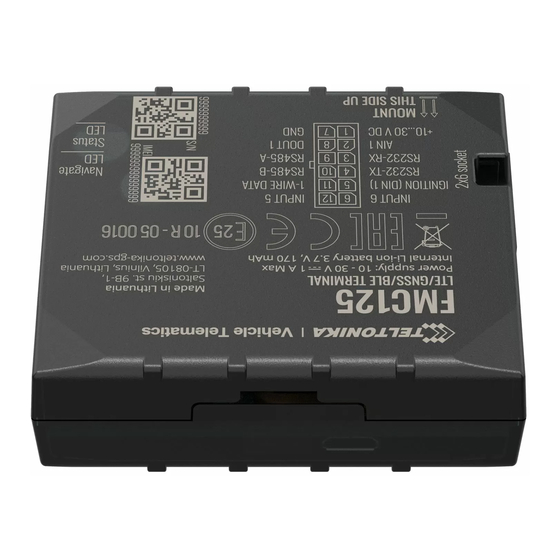

Advanced lte terminal with gnss and lte/3g/gsm connectivity, rs485/rs232 interfaces and backup battery
Hide thumbs Also See for FMC125:

Advertisement

Quick Links

https://wiki.teltonika-gps.com/view/FMC125_First_Start
FMC125 First Start
Main Page
>
Advanced Trackers
Advanced LTE terminal with GNSS and LTE/3G/GSM connectivity, RS485/RS232 interfaces
and backup battery.
Contents

1 How to insert SIM card and connect the battery

How to insert SIM card and connect the battery
1.
Gently remove FMC125 cover using plastic pry tool from both sides.
Note: To properly open a new case please watch this video.
Insert SIM card as shown with PIN request disabled or read
2.
later in
Teltonika
slot. SIM slot 1 is closer to PCB, SIM slot 2 is the upper one.
Connect battery as shown to device. Position the battery in place where it does not obstruct
3.
other components.
4.
After configuration, see
SIM card insertion/removal must be performed when device is powered off – external
voltage and internal battery disconnected. Otherwise SIM card might be damaged or
device will not detect it.
>
FMC125
> FMC125 First Start
Configurator. Make sure that SIM card cut-off corner is pointing forward to
"PC Connection
(Windows)", attach device cover back.
Security info
how to enter it
