Teltonika FMB630 First Start-Up Quick Start Manual

Gnss/gsm/bluetooth terminal with gnss/gsm antennas and ni-mh battery
Hide thumbs Also See for FMB630:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
https://wiki.teltonika-gps.com/view/FMB630_First_Start
FMB630 First Start
Main Page
>
EOL Products

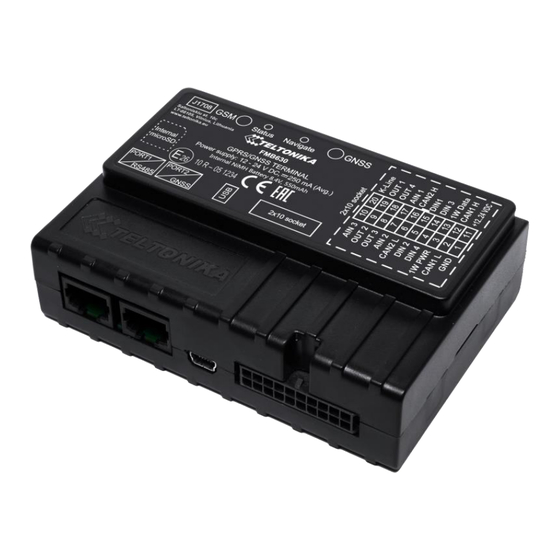

FMB630 GNSS/GSM/Bluetooth terminal with GNSS/GSM antennas and Ni-MH battery
Contents
1 How to insert micro SIM card into FMB630
2 How to insert microSD card into FMB630
How to insert micro SIM card into FMB630
1. Remove FMB630 cover.
2. Insert SIM card as shown. SIM slot 1 is closer to PCB, SIM slot 2 is the upper one.
3. Attach cover.
4. Device is ready to be connected.
How to insert microSD card into FMB630
>
FMB630
> FMB630 First Start

Advertisement

loading

Related Manuals for Teltonika FMB630

Summary of Contents for Teltonika FMB630

  • Page 1: Table Of Contents

    > EOL Products > FMB630 > FMB630 First Start FMB630 GNSS/GSM/Bluetooth terminal with GNSS/GSM antennas and Ni-MH battery Contents 1 How to insert micro SIM card into FMB630 2 How to insert microSD card into FMB630 3 2x10 socket pinout...

  • Page 2: 2X10 Socket Pinout

    Push microSD card lock case. Open microSD card locker. Correctly insert microSD card into slot. Close microSD card locker. Push microSD card lock case to locked position. 2x10 socket pinout...

  • Page 3: How To Install Fmb630 Drivers (Windows)

    How to install FMB630 drivers (Windows) 1. Please download Virtual COM port drivers from Teltonika website: https://drive.teltonika.lt/f/c784c30eb9684f749445/?dl=1. 2. Extract and run vcpdriver_v1.3.1_setup.exe. This driver is used to detect FMB630 device when it is connected to the computer. 3. Click Next in driver installation window.

  • Page 4: Mounting Recommendations

    GSM operator's information. If device GSM is unavailable, the device will not be able to send the data and FMB630 will start storing records to flash memory. It is possible to store up to 192000 data records with 128 MB SD memory card (when 100 MB are used to store records).

  • Page 5: Safety Information

    GND vehicle computer. Connecting the GND at an arbitrary point to the mass of the car is unacceptable, as static and dynamic potentials on the line GND will be unpredictable, which can lead to unstable FMB630 operation and even its failure.

  • Page 6: Precautions

    The device is designed to be mounted in a zone of limited access, which is inaccessible to the operator. All related devices must meet the requirements of EN 60950-1 standard. The device FMB630 is not designed as a navigational device for boats. Precautions Do not disassemble the device.
