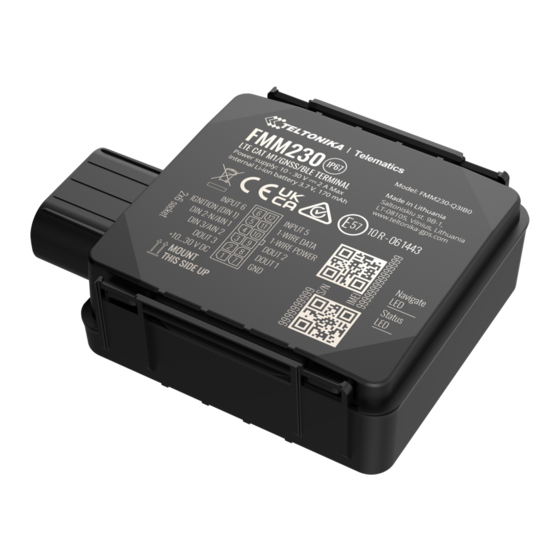

Advanced CAT M1/GSM/GNSS/BLE terminal with internal antennas and backup battery
Contents
1 How to insert SIM card and connect battery
How to insert SIM card and connect battery
1.You will receive your device partly closed.
2.Gently remove top and bottom covers.
3.Insert SIM card as shown with PIN request disabled or read our Wiki how to enter it later in
Teltonika Configurator. Make sure that SIM card cut-off corner is pointing outward from slot. SIM
slot 1 is closer to PCB, SIM slot 2 is the top one.
4.Connect battery as shown to device. Position the battery in place where it does not obstruct other
components.
5.After configuration, see "PC Connection (Windows)", attach device top and bottom cover back and
press them twice to the full closure.
6.Make sure that product casing is closed correctly.
This device has an IP67 casing with a two-phase closing, that ensures a reliable protection and
ease of use. Please make sure that product casing corner clips are fixed tightly and cable is
connected to the device in order to maintain the degree of IP67 protection.
>
FMM230
> FMM230 First Start
Advertisement
Table of Contents
Related Manuals for Teltonika FMM230
Summary of Contents for Teltonika FMM230
-
Page 1: Table Of Contents
3.Insert SIM card as shown with PIN request disabled or read our Wiki how to enter it later in Teltonika Configurator. Make sure that SIM card cut-off corner is pointing outward from slot. SIM slot 1 is closer to PCB, SIM slot 2 is the top one. -
Page 2: Battery Placement After Complete Device Disassembling
Battery placement after complete device disassembling Using double sided tape, stick internal battery to the bottom part of the device case. Battery should be glued approximately 15 millimeters from the bottom wall of the case. Picture on the left. Connect battery to the PCB. Gently place PCB into the bottom case. -
Page 3: Pc Connection (Windows)
Data for 1–Wire devices. INPUT 5 RX EXT (LVCAN - RX). PC Connection (Windows) Power-up FMM230 with DC voltage 10-30 V power supply using supplied power cable. LED’s should start blinking, see “FMM230 LED status”. Connect device to computer using Micro-USB cable or Bluetooth connection:... -
Page 4: Configuration (Windows)
Maintenance and etc. FMM230 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality: Load from device –... -
Page 5: Quick Sms Configuration
Data Acquisition – where data acquiring parameters can be configured. More details about FMM230 configuration using Configurator can be found here. Quick SMS configuration Default configuration has optimal parameters present to ensure best performance of track quality and data usage. -
Page 6: Mounting Recommendations
After successful SMS configuration, FMM230 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters. Mounting recommendations Connecting wires Wires should be connected while the module is not plugged in. -
Page 7: Installation Photos
Device should be mounted with the device name view to the open sky. FMM230 device should be mounted with the device logo view to the open sky for the best device performance with not less than ¾ of metal free area. FMM230 has IP67 protection class. Top performance is reached if mounted outside of the vehicle. - Page 8 The device must be firmly fastened in a predefined location. The programming must be performed using a PC with autonomic power supply. The device is susceptible to water and humidity. Installation and/or handling during a lightning storm is prohibited. https://teltonika-gps.com/product/fmm230/...
