  • Page 1 FMM640 Quick Manual Professional LTE CAT M1/GNSS v1.3 terminal...

  • Page 2: Table Of Contents

    How to install USB drivers (Windows) ..........7 Configuration (Windows) ..............7 Quick SMS configuration ..............9 Mounting recommendations ............. 10 LED indications ................11 Characteristics................11 Basic characteristics ............... 11 Electrical characteristics ..............13 Safety information ..............14 Certification and Approvals ............15 FMM640| Wiki...

  • Page 3: Know Your Device

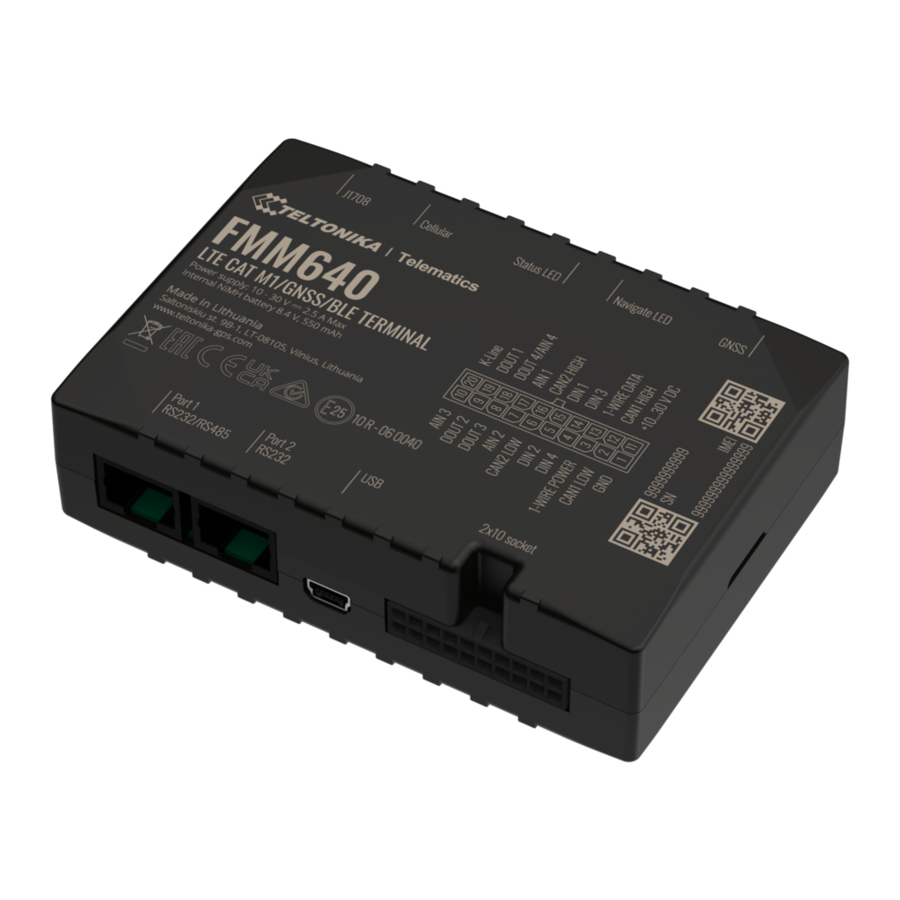

    Know your device Figure 1 FMM640 device view FMM640| Wiki...

  • Page 4: Pinout

    Data channel for Dallas 1-Wire® devices DIN3 Digital input, channel 3 Digital input, channel 1. DEDICATED FOR IGN (DIN1) IGNITION INPUT Figure 2 FMM640 pinout CAN 2H SAE J1939 CAN interface High channel 2 Analog input, channel 1. Input range: 0-30V/0- AIN1 10V DC Digital output.

  • Page 5: Wiring Scheme

    Wiring scheme Figure 3 FMM640 Wiring scheme Automotive relay FMM640| Wiki...

  • Page 6: Set Up Your Device

    5. After configuration, see “PC Connection (Windows)”, attach device cover back. Figure 6 SIM card insert Figure 7 Battery connection 6. Screw in all screws. Device is ready to be mounted. Figure 9 Device is ready Figure 8 Attaching cover back FMM640| Wiki...

  • Page 7: Pc Connection (Windows)

    Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. 1. Power-up FMM640 with DC voltage (10 – 30 V) power supply using power wires. LED’s should start blinking, see “LED Configuration (Windows) indications”.
  • Page 8 Most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. More details about FMM640 configuration using Configurator can be found in our Wiki. Figure 12 Configurator Status window FMM640| Wiki...

  • Page 9: Quick Sms Configuration

    2005 – Port • 2006 – Data sending protocol • After successful SMS configuration, FMM640 device will (0 – TCP, 1 – UDP) synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters.

  • Page 10: Mounting Recommendations

    ▬ Use 3A, 125V external fuse. and dynamic potentials on the line GND will be unpredictable, which can lead to unstable FMM640 operation and even its failure. FMM640| Wiki...

  • Page 11: Led Indications

    Basic characteristics Table 4 Basic characteristics Table 2 Navigation LED indications Module Behaviour Meaning Name Quectel BG96, Teltonika TM2500 Permanently switched on GNSS signal is not received Technology LTE CAT M1/NB-IoT/GSM/GPRS/GNSS Blinking every second Normal mode, GNSS is working GNSS...
  • Page 12 = 20 ± 5 ℃ (Ambient Temp.) 2x SIM Card (Dual-SIM) Battery storage temperature -20 °C to +45° C 2MB internal flash memory and external Memory Operating humidity 5% to 95% non-condensing SD card up to 32 GB Ingress Protection Rating IP41 FMM640| Wiki...

  • Page 13: Electrical Characteristics

    Internal terminal resistors CAN bus Input resistance (DIN3) kΩ Differential input resistance kΩ Input resistance (DIN4) kΩ Recessive output voltage Input voltage (Recommended Operating Supply Conditions) voltage Differential output voltage Input Voltage threshold (DIN1, DIN2, DIN3, Common mode input voltage DIN4) FMM640| Wiki...

  • Page 14: Safety Information

    All related devices Installation and/or handling during a lightning must meet the requirements of EN 62368-1 standard. storm is prohibited. The device FMM640 is not designed as a navigational device for • boats. The device is susceptible to water and humidity.

  • Page 15: Certification And Approvals

    • FMM640 Declaration of IMEI assignment • • FMM640 Declaration of device operation temperature This sign on the package means that it is necessary to read the User‘s Manual before your start using the device. Full User‘s Manual version can be found in our Wiki.

  • Page 16: Warranty

    More information can be found at teltonika-iot- • Repaired group.com/warranty-repair/ • Replaced with a new product • Replaced with an equivalent repaired product fulfilling the same functionality • TELTONIKA can also repair products that are out of warranty at an agreed cost. FMM640| Wiki...
