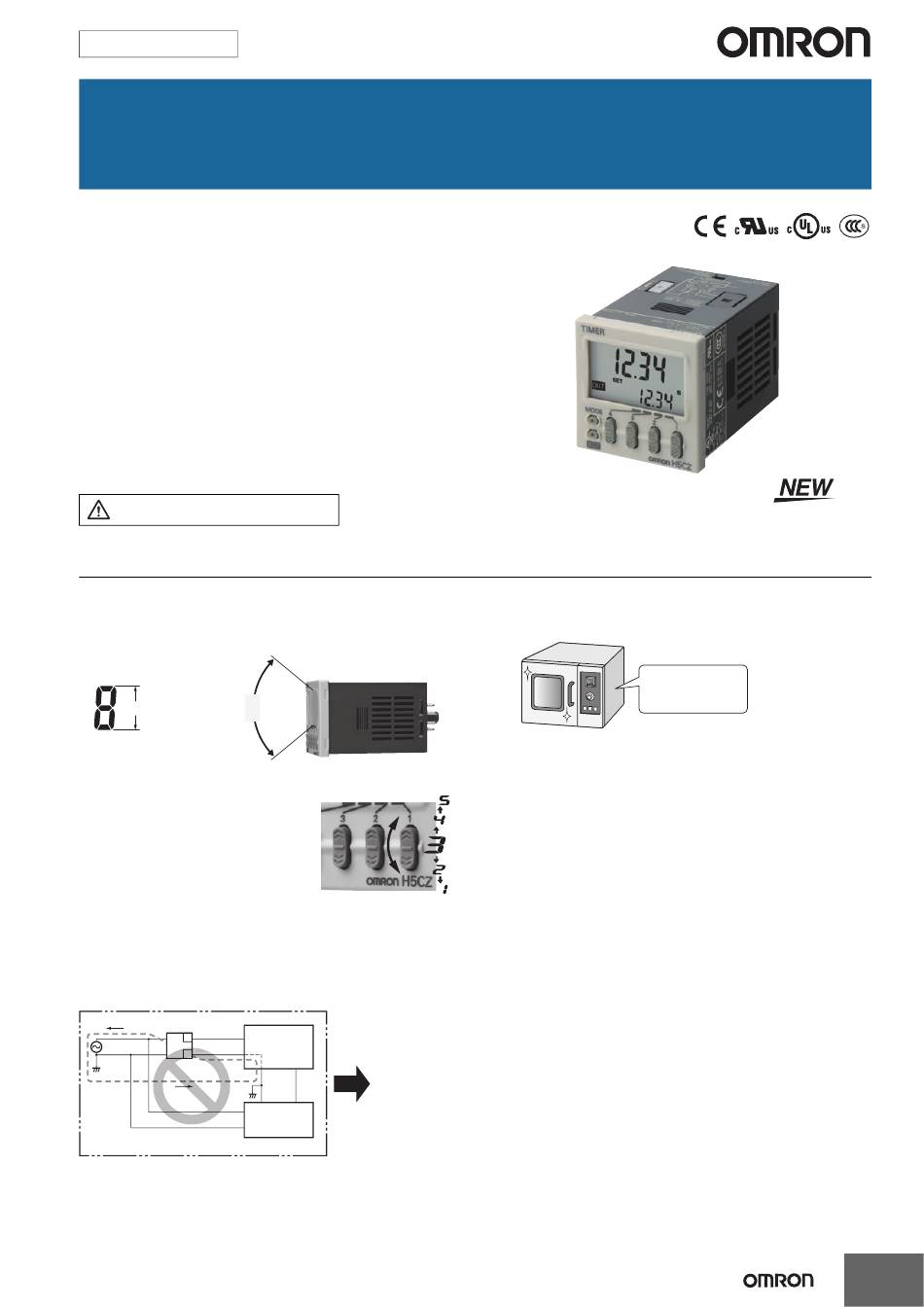

New Product

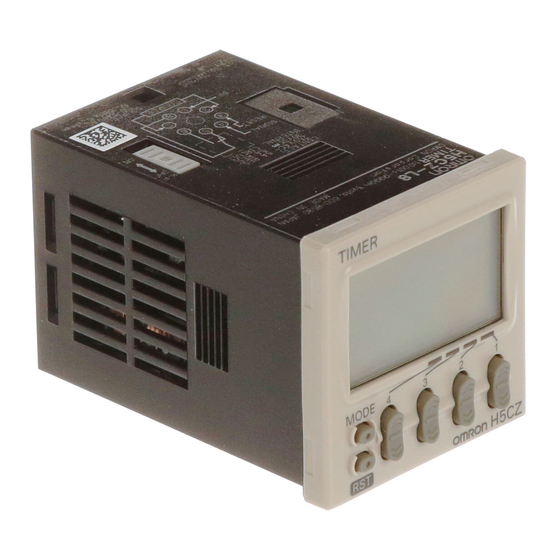

Digital Timer
H5CZ
Easy to Use and Easy to Read.
Basic Features
• Character height of 10 mm for better readability.
• Operation is simplified by the Up/Down Keys for each digit on 4-digit.
Safety and Reliability
• Power supply circuit and input circuits are isolated for safety and
reliability.
• Set value limit function prevents unexpected operation of output
devices caused by setting mistakes.
• Output counter function helps in managing the service life of the
Timer or the load.
Other Features
• Models with instantaneous contact output.
• Waterproof, dust-proof structure (UL508 Type 4X and IP66).
• Key protection.
Refer to Safety Precautions on page 29.
Features
Basic Features
Better Readability
Character Height of 10 mm with a Wide Viewing Angle.
Clear
(actual size)
10 mm
Confirmation
The Easiest Operation
Operation is simplified by the Up/Down
Keys for each digit on 4-digit.
Safety and Reliability
Isolated Power Supply and Input Circuits
Power supply circuit and input circuits are isolated for safety and
reliability.
Previous non-isolated timers had wiring restrictions and could be damaged if
wired incorrectly. The H5CZ removes these worries.
Output terminal on PLC
Input terminal
AC power
*2
supply
0-V terminal
*2. The AC power supply ground is on the commercial power supply side.
*1. H5CZ with 100 to 240-VAC specifications.
Easy to read from the top,
bottom, and sides.
*1
or other device
COM terminal
Forget These
Worries with the
–V
+V
H5CZ
Stabilized DC
power supply
Set Value Limit
You can set an upper limit for the set value to prevent unexpected
operation of output devices caused by setting mistakes.
Worry-free operation is
achieved with the H5CZ
by restricting the time
that can be set.
Output Counter
The output counter counts the number of times the output turns ON
(alarm display, count monitoring, count in increments of 1,000). This
counter is useful in managing the service life of the Timer or the load.
Other Features
Models with Instantaneous Contact Output
Models with instantaneous contact outputs have been added for use
with self-holding circuits and as auxiliary relays. These models are
also convenient when replacing analog timers.
Waterproof, Dust-proof Structure (UL508 Type
4X and IP66)
Worry-free application is possible in locations subject to water.
Note: When the Y92S-29 Waterproof Packing is used.
Key Protection
Select from any of seven protection patterns. Use the best one for the
application.
New Modes
Modes, such as a stopwatch mode (Mode S), have been added.
Select any of 15 modes.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Omron H5CZ
Summary of Contents for Omron H5CZ
- Page 1 Worry-free application is possible in locations subject to water. Previous non-isolated timers had wiring restrictions and could be damaged if Note: When the Y92S-29 Waterproof Packing is used. wired incorrectly. The H5CZ removes these worries. Key Protection Output terminal on PLC or other device Select from any of seven protection patterns.
- Page 2 H5CZ Model Number Structure Model Number Legend H5CZ-L @@@ – – – 1 2 3 1. External Connections 2. Output type 3. Supply voltage Symbol Meaning Symbol Meaning Symbol Meaning 8-pin socket None Contact output (time-limit SPDT) None 100 to 240 VAC 50/60 Hz...
- Page 3 H5CZ Accessories (Order Separately) Soft Cover Models Remarks Page Y92A-48F1 Hard Cover Models Remarks Page Y92A-48 Flush Mounting Adapter Models Remarks Page Y92F-30 Use this Adapter to install the Timer in a cutout Y92F-45 previously made for a DIN 72 x 72 mm device (panel cutout: 68 x 68 mm).
-
Page 4: Specifications Ratings
H5CZ H5CZ Digital Timers • Up/Down Keys for each digit enable easy operation. • Cyclic control is easy with the Twin Timer and Variable ON/OFF Duty modes. Specifications Ratings Item Models H5CZ-L8@ Power supply • 100 to 240 VAC 50/60 Hz voltage •... -
Page 5: Applicable Standards
(including If the set value is within the sensor waiting time at startup the control temperature and voltage output of the H5CZ will not turn ON until the sensor waiting time passes. influences) 1,000 Note: The values are based on the set value. -
Page 6: Connections Block Diagram
No-voltage Inputs (NPN Inputs) +14 V 1 kΩ Internal circuit Input Connections The inputs are no-voltage (closed or open). (The H5CZ-L8E@ does not have an input.) No-voltage Inputs (NPN Inputs) Open Collector Voltage Output Contact Input DC Two-wire Sensor PLC or... - Page 7 H5CZ Nomenclature Operation Key Display Section 8. Mode Key 1. Key Protect Indicator (Changes modes and setting items) 2. Control Output Indicator 9. Reset Key 3. Reset Indicator (Resets present value and output) 4. Present Value Display (Main display) 10. Up Keys 1 to 4 (Character height: 10 mm) 11.
- Page 8 Dimensions with Flush Mounting Adapter mounted so that the gap between sides with hooks is at least 15 mm H5CZ-L8@ (Adapter and Waterproof Packing Ordered Separately) (i.e., with the panel cutouts separated by at least 60 mm). 3. It is possible to mount Timers side...
-
Page 9: Soft Cover
Soft Cover. The Soft Cover ensures protection equivalent to IP54 It is not necessary to mount the Waterproof Packing if waterproof against oil. Do not, however, use the H5CZ in locations where it construction is not required. would come in direct contact with oil. - Page 10 H5CZ Connection Sockets Front-connecting Sockets Terminal arrangement Mounting hole Model Dimensions and internal connections dimensions P2CF-08 20.3 max. 50 max. Two, 4.5-dia. holes 70 max. 35.4 Two, M4 or 4.5-dia. holes Eight, M3.5 x 7.5 sems screws P2CF-08-E ±0.2 21.5 max.
-
Page 11: End Plate
H5CZ Optional Products for Track Mounting Mounting Track PFP-100N ±0.15 PFP-50N ±0.3 ±0.15 15 (5) * 1,000 (500) * * The values shown in parentheses are for the PFP-50N. Mounting Track PFP-100N2 29.2 ±0.3 1,000 End Plate PFP-M M4 x 8 pan head screw 35.5 35.3... - Page 12 Settings for Twin Timer Operation Refer to page 22. * At the time of delivery, the H5CZ is set to the Timer configuration. Refer to page 25 for information on switching models. Operating Procedures for Timer Function • Change to Function Setting Mode.
- Page 13 H5CZ Timer From previous To previous page page Set the digits for the set value limit using the corresponding keys. Set value upper limit 9999 (9999) Set the key protect level using the keys. Key protect level kp-1 kp-2 kp-3...
- Page 14 H5CZ Timer Explanation of Functions Operating Procedures for Timer Function Time Range (timr) Set Value Upper Limit (sl-h) Set the range to be timed in the range 0.001 s to 9,999 h. Set the upper limit for the set value when it is set in Run Mode.
- Page 15 Set each digit for the output time using the corresponding keys. Present value Set value Note: H5CZ-L8E@ Precautions Set the Timer’s set value before using the Timer in a self-holding circuit. When Output Mode Z Is Selected Set each digit for the output time using the corresponding keys.
- Page 16 H5CZ Timer Timing Charts Operating Procedures for Timer Function Models without Instantaneous Contact Outputs Either one-shot output or sustained output can be selected. Mode A: Signal ON delay 1 (Timer resets when power comes ON.) Basic operation Detailed operation Power...
- Page 17 H5CZ Timer Mode b: Repeat cycle 1 (Timer resets when power comes ON.) Basic operation Detailed operation Sustained Output Power Power Start signal input Timing Timing Timing Timing Start signal Output Reset * Start signal input is disabled during timing.
- Page 18 Note: Output is instantaneous when setting is 0. Set value When the H5CZ is used with power start in mode F (i.e., cumulative operation with output on hold), there will be a timer error (approximately 100 ms each time the...
- Page 19 H5CZ Timer Mode S: Stopwatch (Timer resets when power comes ON.) Basic operation Detailed operation Power Power Start signal Start signal input Timing Reset Reset 9999 Set time Display (for elapsed flashes Set time time) The signal starts and stops timing.
- Page 20 = Set time, Rt = Reset time (0.5 s min.), t – a < t (Indicates the time is less than the set time.) Note: H5CZ-L8E@ Precautions Set the Timer’s set value before using the Timer in a self-holding circuit.
- Page 21 = Set time, dty = ON duty time, Rt = Reset time (0.5 s min.), t – a < t (Indicates the time is less than the set time.) Note: H5CZ-L8E@ Precautions Set the Timer’s set value before using the Timer in a self-holding circuit.
- Page 22 OFF start 1 On Start 1 OFF start 2 On Start 2 Note: Only Flicker OFF Start 1 or Flicker ON Start 1 can be selected for the H5CZ-L8E@. 0.001 s to Set the input signal width using the keys.
- Page 23 H5CZ Twin Timer From previous To previous page page Set the function (instantaneous or time-limit operation) for the instantaneous output (output 1) Instantaneous/ using the Keys. time-limit 1c1c (Instantaneous) (Time-limit) Note: Displayed only for models with instantaneous contact outputs. Set the digits for the set value limit using the corresponding keys.
- Page 24 Note: 1. The display will automatically show the OFF set time when the OFF time is being timed and the ON set time when the ON time is being timed. Note: 2. H5CZ-L8E@ Precautions Set the Timer’s set value before using the Timer in a self-holding circuit.
- Page 25 H5CZ Twin Timer Timing Charts Operating Procedures for Timer Function Models without Instantaneous Contact Outputs Mode toff: Flicker OFF start 1 (Timer resets when power comes ON.) Basic operation Detailed operation Power Power Start signal Start signal input Timing Timing...
- Page 26 = ON time, t-off = OFF time, Rt = Reset time (0.1 s min.), t – a < t-off and t – b < t-on (Indicates the time is less than the set time.) Note: H5CZ-L8E@ Precautions Set the Timer’s set value before using the Timer in a self-holding circuit.
- Page 27 H5CZ Timer/Twin Timer Selection Mode (Configuration Selection) Select whether the H5CZ is used as a timer or a twin timer in timer/twin timer selection mode. Power ON Run mode Caution To change the mode to timer/twin timer selection mode, hold down the key for 1 s min.
-
Page 28: Self-Diagnostic Function
H5CZ Key Protect Level When the key-protect switch is set to ON, it is possible to prevent setting errors by prohibiting the use of certain operation keys by specifying the key protect level (KP-1 to KP-7). The key protect indicator is lit while the key-protect switch is set to ON. -
Page 29: Precautions For Safe Use
Precautions for Safe Use When in the remaining time mode, the amount the set value is • The panel surface of the H5CZ is water-resistant (conforming to changed is added to or subtracted from the present value. NEMA4, IP66, UL Type 4X (Indoor Use Only). To protect the Operation with a set value of 0 will vary with the output mode. -
Page 30: Precautions For Correct Use
H5CZ Precautions for Correct Use Conformance to EN/IEC Standards • H5CZ models with a 24-VDC/12 to 24-VDC power supply use a • When conforming to EMC standards, refer to the information transformer-free power supply method in which the power supply provided in this datasheet for cable selection and other conditions. - Page 31 CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted. IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE...
- Page 32 The Netherlands IL 60173-5302 U.S.A. Tel: (31)2356-81-300/Fax: (31)2356-81-388 Tel: (1) 847-843-7900/Fax: (1) 847-843-7787 © OMRON Corporation 2009 All Rights Reserved. OMRON (CHINA) CO., LTD. OMRON ASIA PACIFIC PTE. LTD. In the interest of product improvement, Room 2211, Bank of China Tower, No.
