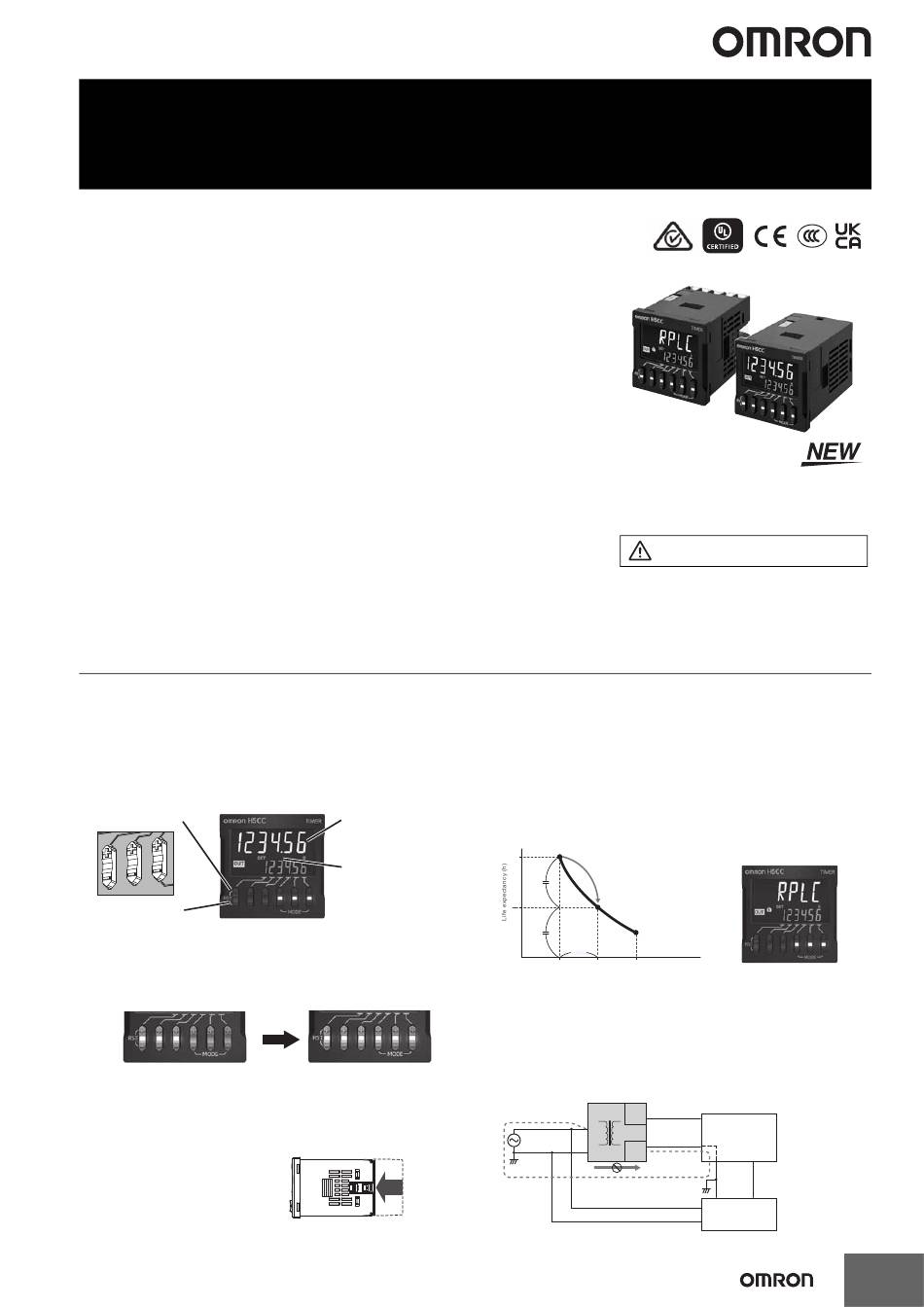

Digital Timer
H5CC
New and improved design for easier use,
programming, maintenance and user feedback.
The improved user interface is intuitive and
offers better overall visibility.
Replacement time notification function notifies
the user of potential preventive maintenance.
Basic Features
• The white-color display offers better visual clarity and visibility, and the color universal design is used.
• Up/Down Keys are provided for all six digits, which reduces the number of button operations
during setup and other processes.
• An easy operation is realized by the operation guide on which each key lights up.
• The progress can be easily understood at one glance from the status indicators of the present value.
• The body depth of all models with screw terminals has been reduced to 59 mm.
Safety and Reliability
• The replacement time is notified in advance by predicting the service life.
• The power supply circuit and input circuits are isolated except some models*, and therefore,
there is no need of any wiring restrictions.
• The free warranty period is three years.
* They are not isolated for model H5CC-@F.
Other Features
• Follows the ratings, characteristics, and functionality of the H5CX-@-N.
• Equipped with the Output ON/OFF Inversion Function.
Features
Basic Features
Better visual feedback and operation
The white-color display offers better visual clarity and visibility, and
the color universal design is used. The keys of all six digits can be
operated up/down for easier use. The LED indicator of the operable
keys lights up to support setup.
Simplified operation
by the Up/Down Keys
for all six digits
The operable keys
light up to support setup
Status Notification by Status Indicator
The status can be indicated by the ratio of the present value or the
measurement value to the set value, which makes it easy to
understand the status.
Three indicators light up
when the status reaches 50%
Shortened Body
The body depth of all models with screw terminals has been reduced
to 59 mm, which contributes to thinner control panels!
Models with Screw Terminals: 59 mm
Models with Sockets:
63.7 mm (case dimension)
White-color
display
improves visibility
Color universal
design is used
All indicators light up
when the status reaches 100%
Previous
New models
models
For the most recent information on models that have
been certified for safety standards, refer to your
OMRON website.
Refer to Safety Precautions on page 39.
Safety and Reliability
Notification of Replacement Time
The service life prerequisites of the Timer include the relay output
count and the deterioration of the electrolytic capacitors. In the H5CC,
in addition to the relay output count, an alarm is displayed when the
deterioration of electrolytic capacitors due to the cumulative run time
reaches the standard value, and planned maintenance is supported.
Note: For details, refer to Replacement Time Notification Function on
page 37.
a
The service life reduces to half
when the temperature rises to
10°C.
a
2
10°C
Temperature (°C)
35
45
55
Relationship between the life expectancy of
electrolytic capacitors and temperature (Example)
Isolated Power Supply and Input Circuits
Power supply circuit and input circuits are isolated* for safety and
reliability. Previous non-isolated timers had wiring restrictions and could
be damaged if wired incorrectly. The H5CC removes these worries.
* The H5CC-A11F does not isolate power supply circuit and input circuits.
H5CC
Input
terminal
0 V
AC power
terminal
supply *
There is no sneak current
from wires because of
transformer-type power supply.
PLC or
other output terminals
COM terminal
* Grounding of
-V
+V
AC power supply
implies grounding
DC stabilized
at the commercial
power supply
power supply side.
1 1
