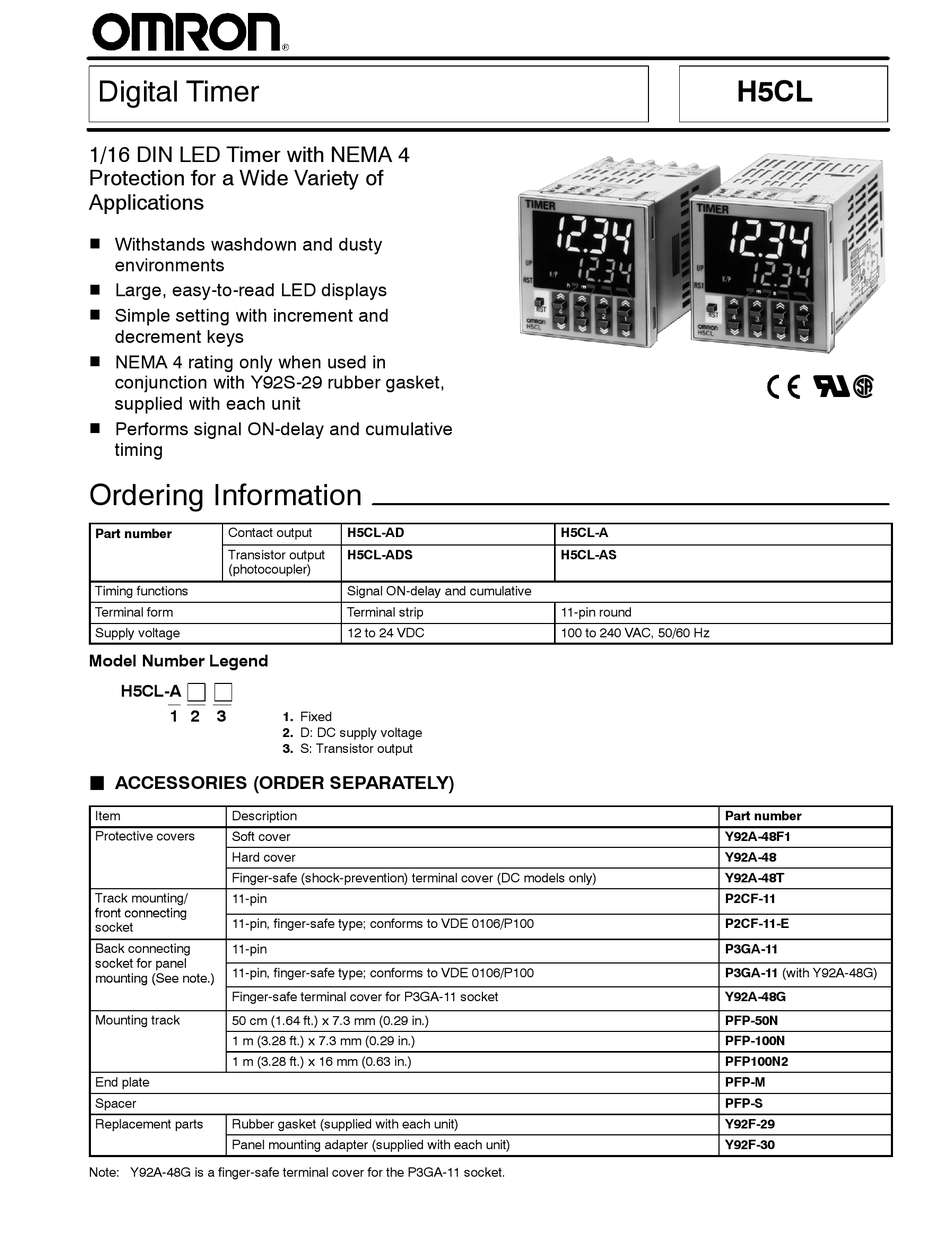

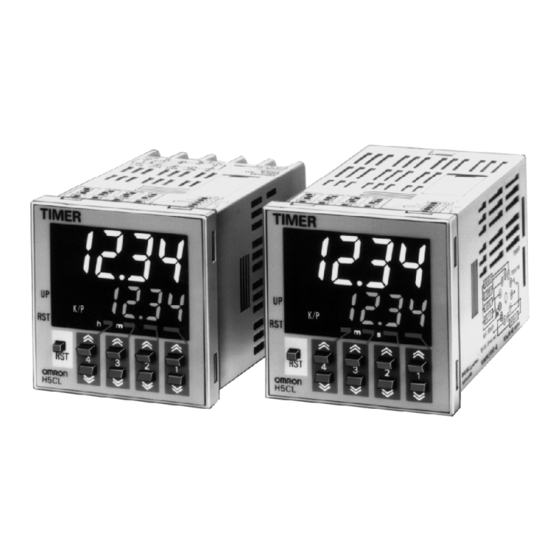

Digital Timer
1/16 DIN LED Timer with NEMA 4
Protection for a Wide Variety of
Applications
Withstands washdown and dusty
H
environments
Large, easy-to-read LED displays
H
Simple setting with increment and
H
decrement keys
NEMA 4 rating only when used in
H
conjunction with Y92S-29 rubber gasket,
supplied with each unit
Performs signal ON-delay and cumulative
H
timing
Ordering Information
Contact output
Part number
Transistor output
(photocoupler)
Timing functions
Terminal form
Supply voltage
Model Number Legend
H5CL-A
1
2 3
J ACCESSORIES (ORDER SEPARATELY)
Item
Description
Protective covers
Soft cover
Hard cover
Finger-safe (shock-prevention) terminal cover (DC models only)
Track mounting/
11-pin
front connecting
front connecting
11-pin, finger-safe type; conforms to VDE 0106/P100
socket
Back connecting
11-pin
socket for panel
socket for panel
11-pin, finger-safe type; conforms to VDE 0106/P100
mounting (See note.)
mounting (See note.)
Finger-safe terminal cover for P3GA-11 socket
Mounting track
g
50 cm (1.64 ft.) x 7.3 mm (0.29 in.)
1 m (3.28 ft.) x 7.3 mm (0.29 in.)
1 m (3.28 ft.) x 16 mm (0.63 in.)
End plate
Spacer
Replacement parts
p
p
Rubber gasket (supplied with each unit)
Panel mounting adapter (supplied with each unit)
Note: Y92A-48G is a finger-safe terminal cover for the P3GA-11 socket.
H5CL-AD
H5CL-ADS
Signal ON-delay and cumulative
Terminal strip
12 to 24 VDC
1. Fixed
2. D: DC supply voltage
3. S: Transistor output
H5CL
H5CL-A
H5CL-AS
11-pin round
100 to 240 VAC, 50/60 Hz
Part number
Y92A-48F1
Y92A-48
Y92A-48T
P2CF-11
P2CF-11-E
P3GA-11
P3GA-11 (with Y92A-48G)
Y92A-48G
PFP-50N
PFP-100N
PFP100N2
PFP-M
PFP-S
Y92F-29
Y92F-30
RC
Advertisement
Related Manuals for Omron H5CL Series
Summary of Contents for Omron H5CL Series
- Page 1 Digital Timer H5CL 1/16 DIN LED Timer with NEMA 4 Protection for a Wide Variety of Applications Withstands washdown and dusty environments Large, easy-to-read LED displays Simple setting with increment and decrement keys NEMA 4 rating only when used in conjunction with Y92S-29 rubber gasket, supplied with each unit Performs signal ON-delay and cumulative...
-
Page 2: Specifications
H5CL H5CL Specifications Item H5CL-Aj (AC models) H5CL-ADj (DC models) Mounting DIN track, surface, and panel mounting (common) Panel mounting External connections Socket Screw terminals Enclosure ratings Panel surface: IEC IP66 and NEMA Type 4 (indoors) when Y92S-29 rubber gasket is used. Digits 4 digits (zero suppress method) Max. - Page 3 H5CL H5CL J CHARACTERISTICS Item H5CL-Aj (AC models) H5CL-ADj (DC models) Repeat accuracy Power start: ±0.01% ±0.05 s max. (See Note 1.) Signal start: ±0.005% ±0.03 s max. (See Note 1.) Signal start, at transistor output model: ±0.005% ±3 ms max. (See Note 1 and 2.) If the set value is within the sensor waiting time (250 ms max.) in the case of power start, the control output of the H5CL will not be turned ON until the sensor waiting time passes.
-
Page 4: Operation Key
H5CL H5CL Nomenclature Indicator Stick the enclosed label here. 1. Present Value Red LEDs with a character height of 12 mm Note: The decimal point will flash on the present value dur- ing the timing operation in the following ranges: 0.1 to 999.9 min, 0 h 01 min to 99 h 59 min, and 0.1 to 999.9 h. - Page 5 H5CL H5CL J OPERATING MODES A Mode Power Signal ON-delay Start Gate Reset Control output Set value Display mode Set value DOWN F Mode Cumulative Operation Power Start Gate Reset Control output Set value Display mode Set value DOWN Dimensions Unit: mm (inch) J H5CL-A V V V V...
- Page 6 H5CL H5CL J H5CL-A V V V V With Panel Mounting Adapter Panel Y92F-30 panel Y92S-29 rubber mounting adapter gasket (provided) P3GA-11 back (provided) connecting socket (sold separately) Panel Cutouts (2.28) (2.01) Panel cutouts are as shown below. (according to DIN43700). 60 min.
- Page 7 H5CL H5CL J ACCESSORIES (ORDER SEPARATELY) P2CF-11 Track Mounting/Front-Connecting Socket (0.12) Terminal Arrangement/ (0.18) Surface Mounting Holes (0.31) Eleven, Internal Connections M3.5 x 7.5 sems (Top View) Two, 4.5 dia. mounting holes 35.4 (2.76) (1.39) max. Two, 4.5 40±0.2 dia. holes 50 (1.97) 31.2 max.
- Page 8 H5CL H5CL Finger-Safe Terminal Covers Conforming to VDE0106/P100 Twelve, 6.4 dia. holes Y92A-48G Attachment for P3GA-11 Socket 48 x 48 47.7 x (1.34) (1.89 x 1.89) 47.7 16.5 27.6 24.6 (1.09) 47.4 Y92A-48T (1.87) Attachment for H5CL DC Models Hard Cover Soft Cover Y92A-48 Y92A-48F1...
-
Page 9: Installation
H5CL H5CL Installation J TERMINAL ARRANGEMENT AC Models Reset Start Contact output Transistor output Gate Key protection Input common (0 V) (- -) Load (Sensor) External power supply 12 VDC (50 mA max.) 100 to 240 VAC Note: Power supply circuit is insulated from the internal circuit (or I/O DC Models Reset Start... - Page 10 H5CL H5CL J INPUT CIRCUITS Start, Reset, and Gate Input H5CL-ADj (DC Models) Key Protection Input H5CL-Aj (AC Models) - - 3.5V +12 V +5 V (16V max.) 1 kΩ 4.7 kΩ 1 kΩ Internal circuit Internal circuit Internal circuit : Supply voltage Note: No key input is effective while key protection input is ON.
- Page 11 H5CL H5CL Precautions J POWER SUPPLIES J OPERATING ENVIRONMENT When using the Timer in an area with excess electrical noise, When turning the power ON and OFF, input signal reception separate the Timer, wiring, and the equipment which generates is possible, unstable, or impossible (as shown here). the input signals as far as possible from the noise sources.
- Page 12 NOTE: DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters to inches divide by 25.4. OMRON ON- -LINE OMRON ELECTRONICS LLC OMRON CANADA, INC. One East Commerce Drive 885 Milner Avenue Global - - http://www.omron.com Schaumburg, IL 60173 Scarborough, Ontario M1B 5V8 USA - - http://www.omron.com/oei 1-800-55-OMRON 416-286-6465 Canada - - http://www.omron.com/oci...
