Omron H5CX-AD-N Manual

Digital Timer
H5CX
Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have any questions
or comments. Refer to Warranty and Application Considerations (page 52), and Safety Precautions (page 47).
DIN 48 ´ 48-mm Multifunction Digital Timer/2-stage Digital Timer
• Highly visible display with backlit negative transmissive LCD.
• Finger-safe terminals (screw terminal block models).
• Complies with IP66, NEMA4, and UL Type 4X (when using the Y92S-29 Waterproof Packing and Y92F-30 Flush Mounting Adapt-
er).
H5CX-A/-L
Multifunction Digital Timer
with 4-digit display

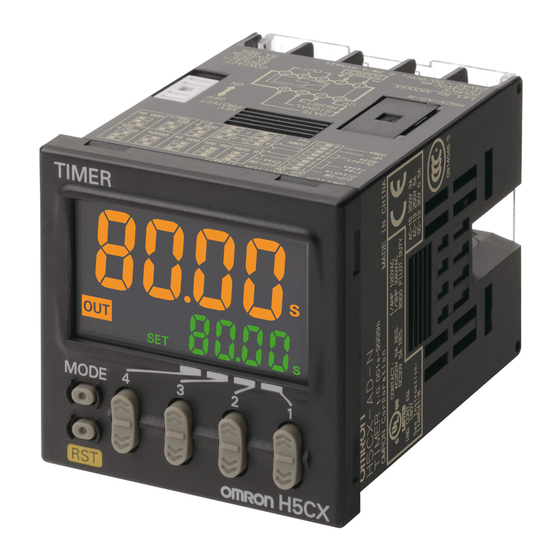

H5CX-A (standard type)
H5CX-L (economy type)
H5CX Series
Contents
Multifunction Digital Timer
H5CX-A/-L........................................................
2-stage Digital Timer
H5CX-B............................................................ 35
Common to All Models
Safety Precautions ........................................... 47
Warranty and Application Considerations ........ 52
H5CX-B
1
2
2-stage Digital Timer
with 6-digit display
H5CX-B
2
H5CX
Digital Timer
