Omron H5CR series Manual

Multifunction digital timer
Hide thumbs Also See for H5CR series:

Advertisement

Table of Contents

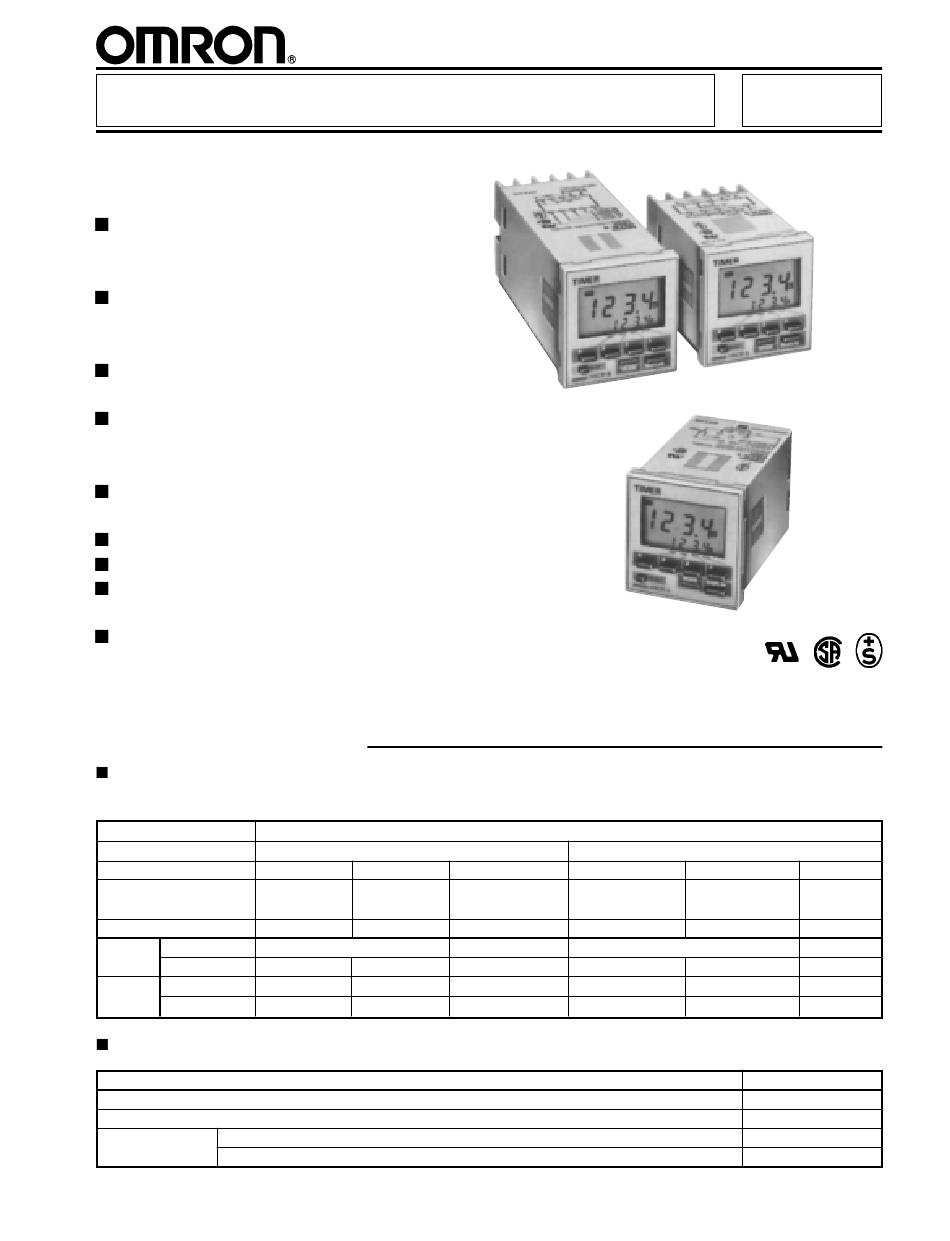

Multifunction Digital Timer
1/16 DIN Timer with
Easy-to-Use Functions
Nine field-selectable output
modes accommodate a wide
variety of applications
All parameters set by scroll-
through menus accessed from
the front panel
Field-selectable time ranges from
0.001 second to 9999 hours
High-visibility alphanumeric LCD
display has 8 mm high characters
and built-in backlight
Precision control possible to
0.001 second
Four levels of key protection provided
10-year battery back-up
Selectable elapsed time (UP)
and time remaining (DOWN) display
Short body model H5CR-S measures
just 64 mm (2.52 inches) deep

Ordering Information

TIMERS
Add the supply voltage to the part number when you order. For example, H5CR-B-AC100-240.
Timing functions
Contact type
Product type
Unit depth
Panel mounting hardware Not provided
Supply
AC
voltage
DC
Part
Backlit display
number
Unlit display
ACCESSORIES
Description
Soft cover with two mounting clips for front panel protection
Shock prevention terminal cover for Standard and Short body timers protects wiring connections
Sockets for
economy timers
H5CR 1
9 selectable, including ON-delay, repeat cycle, OFF-delay, and one-shot
SPDT relay
Economy
Standard
78 mm
100 mm
(3.07 in)
(3.94 in)
Provided
24 V or 100 to 240 V; 50/60 Hz —
12 to 24 V
—
—
H5CR-B
H5CR-L
—
Bottom surface or track mounting, top screw terminals
Back mounting, for use with Y92F-30 mounting adapter, bottom screw terminals
Solid-state open collector
Short body
Economy
64 mm
78 mm
(2.52 in)
(3.07 in)
Provided
Not provided
24 V or 100 to 240 V; 50/60 Hz
12 to 24 V
12 to 24 V
H5CR-S
—
—
H5CR-LS
H5CR
Standard
Short body
100 mm
64 mm
(3.94 in)
(2.52 in)
Provided
Provided
—
—
12 to 24 V
H5CR-BS
H5CR-SS
—
—
Part number
Y92A-48F1
Y92A-48T
P2CF-08
P3G-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H5CR series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omron H5CR series

Summary of Contents for Omron H5CR series

  • Page 1: Ordering Information

    Multifunction Digital Timer H5CR 1/16 DIN Timer with Easy-to-Use Functions Nine field-selectable output modes accommodate a wide variety of applications All parameters set by scroll- through menus accessed from the front panel Field-selectable time ranges from 0.001 second to 9999 hours High-visibility alphanumeric LCD display has 8 mm high characters and built-in backlight...

  • Page 2: Replacement Parts

    H5CR H5CR REPLACEMENT PARTS Description Part number Panel mounting bracket (one supplied with H5CR-B and H5CR-S models) Y92F-30 RANGE AND OPERATION MODE SELECTION Range selection Time unit Maximum setting Mode Operation Output type - . - - - s 0.001 second 9.999 seconds ON-delay Sustained or...

  • Page 3: Timing Charts

    H5CR H5CR SPECIFICATIONS continued Memory function Retains preset values for 10 years at 25° C (77° F) Materials Plastic case Mounting Panel or surface; Y92F-30 Panel, Y92F-30 mounting bracket included mounting bracket included Connections 8-pin round socket Screw terminals Weight 105 g (3.7 oz.) 160 g (5.6 oz.) 120 g (4.2 oz.)
  • Page 4 H5CR H5CR Output mode A-2: Power ON delay 1 (Timer resets when power comes on.) Timing begins when power is applied. Power Start signals act as a gate input, causing the present value to hold. The Start signal control output will be energized when the present value equals the preset Gate time.
  • Page 5 H5CR H5CR Output mode B-1: Repeat cycle 2 (Timer does not reset when power comes on.) The OFF/ON cycle is initiated at the leading edge of the start signal. The output relay will be OFF for the preset Start signal time, then ON for the preset time.
  • Page 6 H5CR H5CR Output mode F: Cumulative (Timer does not reset when power comes on.) Timing begins on the leading edge of the Power start signal. The control output is energized when the cumulative elapsed Start signal time of the start signal is equal to the Gate preset time.
  • Page 7 H5CR H5CR PANEL MOUNTING ADAPTER Y92F-30 The diagram below shows the adapter on an H5CR-L timer. The mounting depths for H5CR-B and H5CR-S are the same as shown in Timer Dimensions . P3G-08 Panel Y92F-30 Rear surface Panel mounting connection socket adapter (2.28) 85.9...

  • Page 8: Terminal Arrangement

    H5CR H5CR Y92A-48F1 Soft plastic cover Y92A-48T Terminal cover Two mounting clips help the soft plastic cover Y92A-48F1 fit The terminal cover protects wiring connections on the snugly over the front of the timer to protect against dirt and Standard and Short Body models. water.

  • Page 9: Operation

    H5CR H5CR INPUTS The inputs of the H5CR are no-voltage (short circuit or open) inputs. No-contact Input Contact Input No-contact Input (NPN Transistor) (30 V max.) Sensor Sensor Timer Timer Timer 12 VDC Start signal, Start signal, Start signal, reset, etc. reset, etc.

  • Page 10: Key Operations

    H5CR H5CR KEY OPERATIONS Key name Operation Increment keys (1-4) Used to change the corresponding digit of the set value. Used to change data in the set mode. Display key Switches to the present value display. Mode key Switches from run mode to set mode. Changes items in the set mode. Reset key Resets timing and outputs.
  • Page 11 H5CR H5CR SETTING ITEM TABLE Mode Setting item Description Setting procedure Run mode Set value Compared to the present value. Sequence when changing a digit using the Determines the timing of the control increment keys (1 to 4). output according to the output mode. Setting mode Time range Determines the timing range.

  • Page 12: Run Mode

    H5CR H5CR EXAMPLES Run Mode Changing the Set Value To change the set value from 3 hr 5 min to 4 hr 5 min, press the 3 key so that the number 4 appears in the hour's place. • Pressing keys 1 through 4 increments the corresponding column by 1.
  • Page 13 Set at the factory NOTE: ALL DIMENSIONS ARE IN MILLIMETERS. To convert millimeters into inches, divide by 25.4. Omron Europe B.V. EMA-ISD, tel:+31 23 5681390, fax:+31 23 5681397, http://www.eu.omron.com/ema Cat. No. GC TI8 11/97 Specifications subject to change without notice.
