Overview

1 Overview

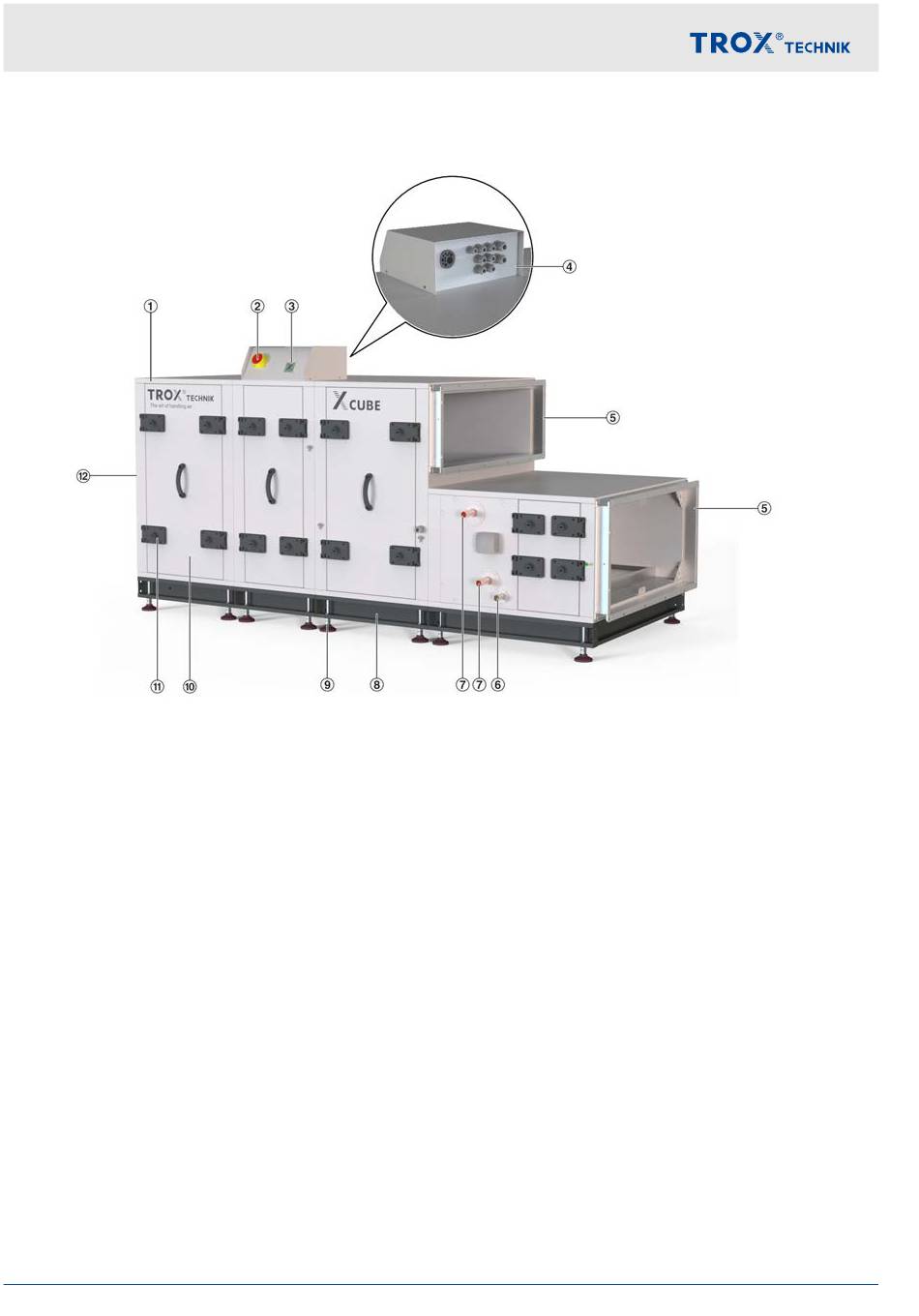

Fig. 1: X-CUBE X2 compact 2 (example)
1 Casing
2 Mains isolator
3 Touch panel
4 Cable glands
5 Connecting subframe
6 Condensate drain, connection for drain trap
An X-CUBE air handling unit is shipped either fully assembled or in parts (AHU casing units), depending on con-
struction and installation situation. Each AHU casing unit comes with a drawing that shows the correct installation
position.
6
7
8
9
10
11
12
Air handling unit X-CUBE X2 compact 2
Water connections (heat exchanger)
Base frame
Levelling feet
Inspection access door (see table for an explana-
tion of the symbols)
Door lock
Outdoor air and exhaust air connections
