Trox Technik WK-D-WF Instruction Manual

Chilled ceiling

Advertisement

Quick Links

Product overview

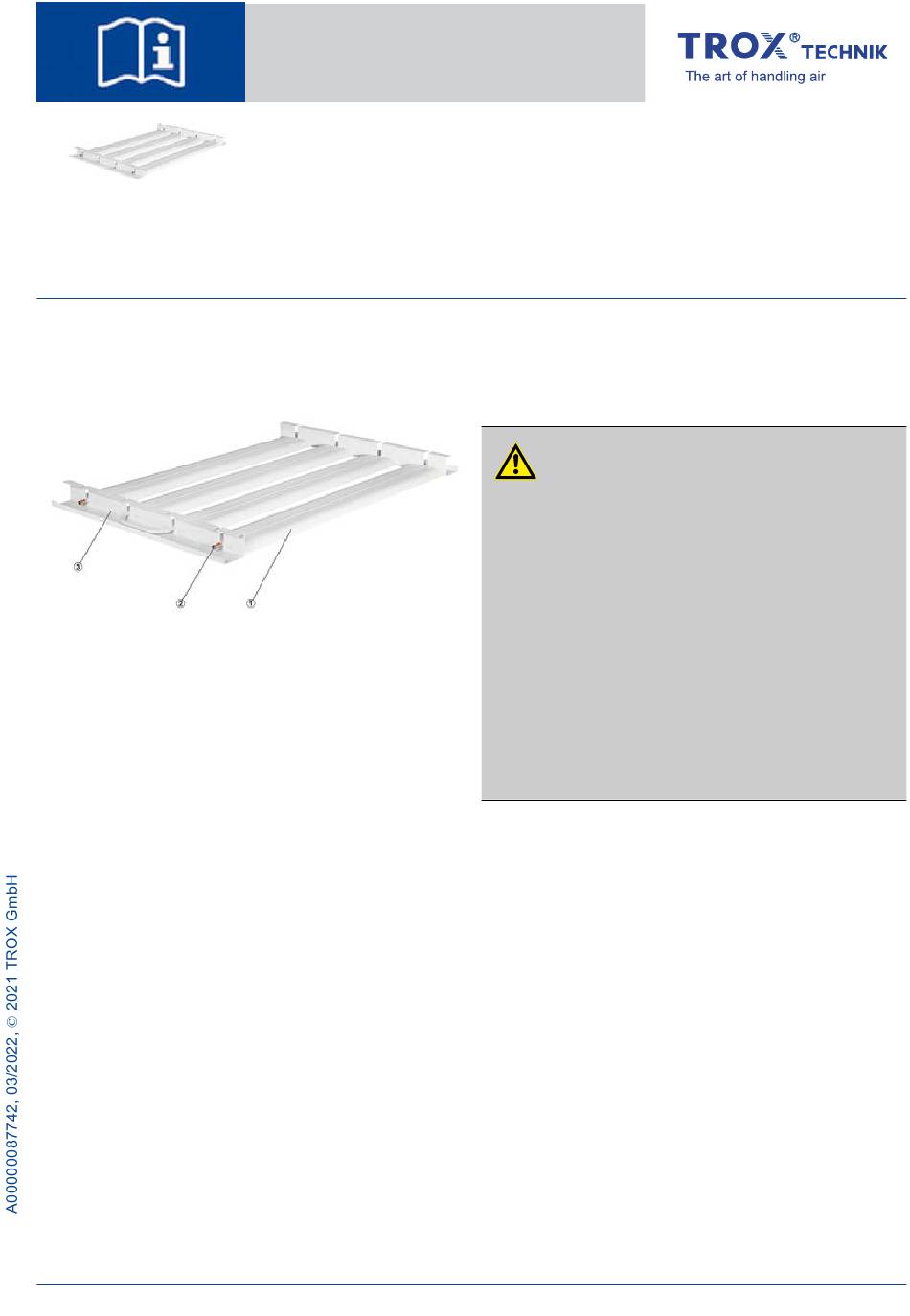

Fig. 1: Chilled ceiling WK-D-WF, example
1
Specially formed blade
2
Pipe (serpentine)
3
Fixing bracket
Important notes
Information on the installation manual
This manual enables operating or service personnel
to correctly install the product described below and
to use it safely and efficiently.
It is essential that these individuals read and fully
understand this manual before starting any work.
The basic prerequisite for safe working is to comply
with the safety notes and all instructions in this
manual.
The local regulations for health and safety at work
and general safety regulations also apply.
Safety
Correct use
Cooling panels are primarily used for the cooling of
internal spaces; they use water to dissipate thermal
loads.
Installation manual
Chilled ceiling
WK-D-WF
Chilled ceiling WK-D-WF
GB/en
They can, however, be combined with a ventilation
system and be used for heating.
Incorrect use
WARNING!
Danger of injury or risk of damage to property
due to incorrect use!
Incorrect use of the cooling panels can lead to
dangerous situations.
Do not use cooling panels:
in areas with potentially explosive atmos-
pheres
outdoors
in humid rooms
in rooms with aggressive or dust-laden air
at temperatures below the dew point
Modifying the unit or using replacement parts that
have not been approved by TROX is not permitted.
Staff
Qualification
The work described in this manual has to be carried
out by individuals with the qualification, training,
knowledge and experience described below:
Drywall installer
Drywall installers build indoor and outdoor drywall
(also called plasterboard) constructions, e.g. light-
weight partition walls, that meet the requirements
for thermal insulation, noise insulation, fire protec-
tion and protection from radiation. They also fit clad-
ding to walls and ceilings, for example plasterboard,
metal panels or wood, and insert the necessary
insulation.
TROX GmbH
Heinrich-Trox-Platz
47504 Neukirchen-Vluyn, Ger-
many
Germany
Phone: +49 (0) 2845 2020
+49 (0) 2845 202-265
E-mail: trox-de@troxgroup.com
http://www.troxtechnik.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WK-D-WF and is the answer not in the manual?

Questions and answers

Summary of Contents for Trox Technik WK-D-WF

  • Page 1 Incorrect use of the cooling panels can lead to dangerous situations. Do not use cooling panels: – in areas with potentially explosive atmos- Fig. 1: Chilled ceiling WK-D-WF, example pheres Specially formed blade – outdoors Pipe (serpentine) –...
  • Page 2: Transport, Storage And Packaging

    Description of personal protective equipment Industrial safety helmet Industrial safety helmets protect the head from falling objects, suspended loads, and the effects of striking the head against stationary objects. Chilled ceiling WK-D-WF...
  • Page 3: Installation

    Protect the product from the effects of weather  Protect the product from humidity, dust and  contamination Storage temperature: -10 °C to 40 °C.  Relative humidity: 95 % max., no condensation  Packaging Properly dispose of packaging material. Chilled ceiling WK-D-WF...
  • Page 4: Installation Types

    Only work in pairs; preferably use a lift. Chilled ceiling WK-D-WF...
  • Page 5 In addition to the installation manual there may be, for example, a drawing that shows the fixing points. WK-D-WF cooling panels, notes on installation Connecting the water pipes If the pipe tails of cooling panels are provided with...
  • Page 6 Make sure that the water temperature does not  fall below the dew point. Fig. 6: WK-D-WF connection Provide devices for shut-off and venting.  Control valves, gate valves and safety valves ...
  • Page 7 Temperatures below the dew point should be avoided as they lead to condensation which may cause damage to the building structure. Fixing types Fig. 7: WK-D-WF fixing brackets – length < 2500 mm Chilled ceiling WK-D-WF...
  • Page 8 Installation Fig. 8: WK-D-WF fixing brackets – length ≥ 2500 mm WK-D-WF suspension Distribute the weight evenly.  Use preferably threaded rods M8 for suspension.  Use all fixing brackets.  Minimum distance from fixing bracket top edge to the ceiling slab: ≥ 80mm.
  • Page 9 Installation Fig. 9: WK-D-WF with Z-bracket in the middle (L > 2500 mm) Fig. 10: WK-D-WF cross section Weight [kg] 1000 1200 1400 1000 10.5 17.5 24.5 1500 18.5 2000 11.5 28.5 34.5 2500 14.5 36.5 43.5 3000 33.5 58.5 3500 28.5...
  • Page 10: Initial Commissioning

    Carry out hydraulic balancing of the control  zones. For commissioning see also VDI 6022, part 1 – 'Hy- giene requirements for ventilation and air-condi- tioning systems and units'. Maintenance and cleaning Maintenance Check the water quality regularly in order to prevent corrosion. Chilled ceiling WK-D-WF...
