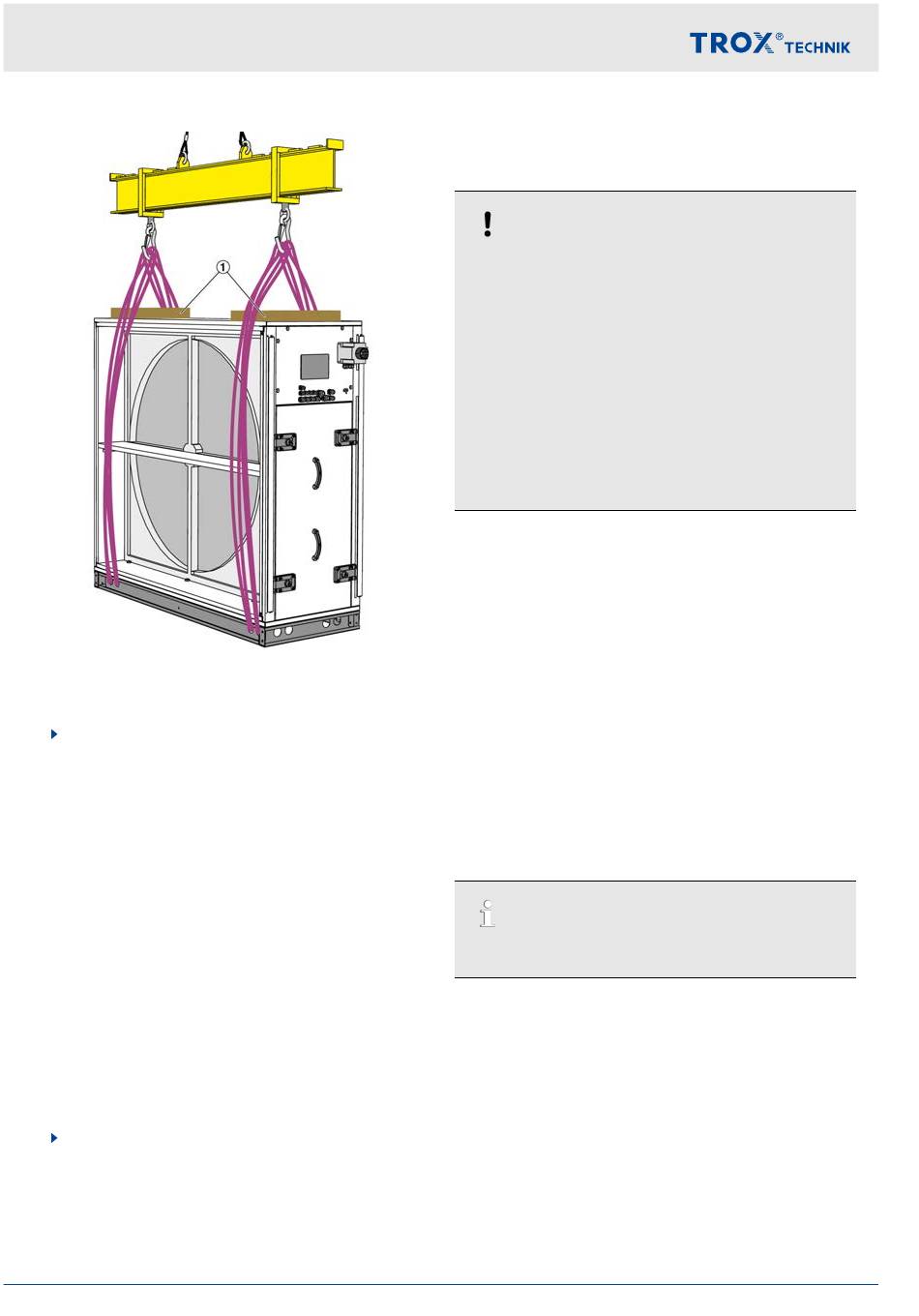

Fig. 7: Lashing with inserted spacer timber
1
Spacer timbers
1.
Guide the round slings through two holes (pair of
holes) in the base frame at each of four lashing
points.
Protect the edges of the equipment using a
spreader beam ( Fig. 5 and Fig. 6 ) or spacer tim-
bers ( Fig. 7 /1).
Components/equipment with roof:
Spread the slings in the roof area with a suit-
able spreading device, e.g., a spreader beam.
Select spacer timbers so that a distance of
100 mm is guaranteed between the sling and
the device.
Note during attachment/lifting:
Do not spread slings by more than 60°.
Ensure that the slings cannot damage the
AHU casing unit.
Suspend (distribute) the load symmetrically,
i.e. in such a way that its centre of gravity is
beneath the crane hook.
2.
Slowly lift the load and start moving.
16
3.4 Storage and functional integrity
3.4.1 Bearing
Risk of damage to property due to corrosion!
Insufficient ventilation due to film packaging can
result in condensation and, hence, oxidation on
galvanised surfaces, e.g. white rust.
–
–
In the case of Sendzimir-galvanised units, corrosion
may occur on the cut edges. Reddish or whitish dis-
colouration of the cut edge does not indicate prob-
lematic corrosion. Corrosion protection is still guar-
anteed. This does not indicate a reduction in quality
and there are no grounds for complaint.
Please note the following storage conditions:
If there are storage instructions on the packaging,
these instructions must be followed as well.
3.4.2 Functional integrity of the unit com-
When storing or shutting down the units or if commis-
sioning is to be carried out at a later date (units out of
operation for more than 3 months), take the following
measures to ensure their functional integrity.
Air handling unit X-CUBE X2 compact 2
NOTICE!
Remove film packaging immediately after
delivery.
Store all units in a dry, well-ventilated place.
Do not store outdoors.
Store in a dry and dust-free place that is not
exposed to sunlight.
Storage temperature: -10 °C to +50 °C; avoid
sudden/major fluctuations in temperature.
Provide unpackaged units with protective packaging
and ensure sufficient ventilation in order to prevent
condensation.
Seal openings in the units to ensure that no dust or
vermin can get inside.
Do not expose the units to aggressive operating
fluids.
The storage location must be level and have suffi-
cient load-bearing capacity.
If storing the units for more than 3 months, refer to
the information on functional integrity,
Ä
on page 16 .
Note!
ponents
Rotating or moving components such as fans, rotary
heat exchangers, multileaf dampers, actuators,
valves or pumps should be rotated/moved on a
monthly basis.
In the case of belt-driven components, slacken the
belts.
