Transport and storage
Moving packages > Moving packages with a forklift or pallet truck

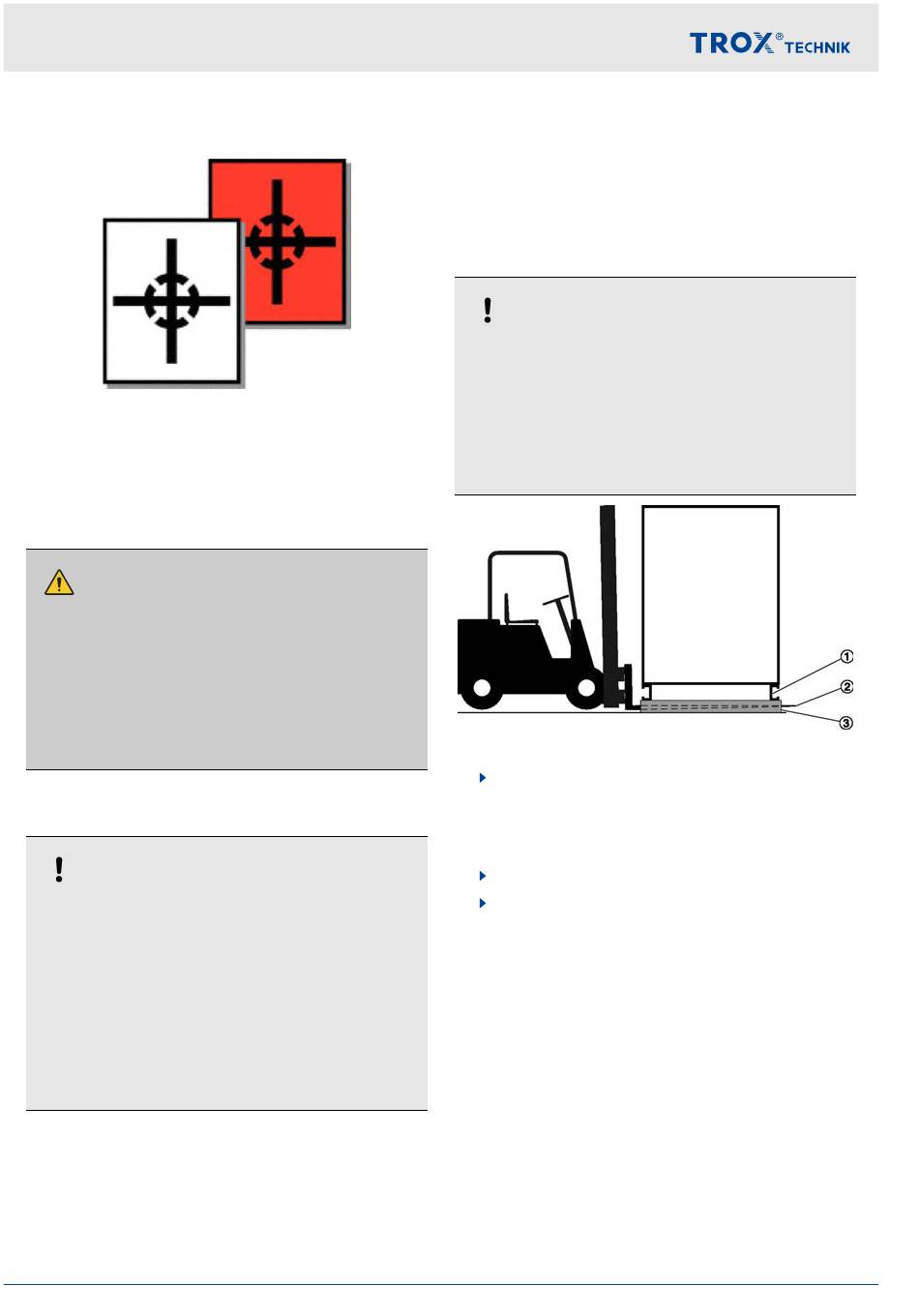

Sticker indicating the centre of gravity
Fig. 3: Shipping stickers
Stickers on the packaging indicate the centre of gravity
( Fig. 3 ).
Sharp edges, sharp corners and thin sheet metal
parts
CAUTION!
Danger of injury from sharp edges, sharp cor-
ners and thin sheet metal parts!
Sharp edges, sharp corners and thin sheet metal
parts of the heat exchanger or of the cooling or
heating coil may cause cuts or grazes.
– Be careful when working on these components.
– Wear protective gloves, safety shoes and a hard
hat.
Damage to goods being moved
NOTICE!
Risk of damage to property due to the incorrect
handling or lifting of units!
If you handle or move packages incorrectly, they
may topple or fall. This can cause considerable
damage to property.
– Do not put down packages hard and do not
knock against them with force. Watch out for pro-
truding parts.
– When you are moving units for outdoor installa-
tion, be careful that the thin metal roof is not
damaged by the lifting gear.
3.3.2 Moving packages with a forklift or
pallet truck
Air handling units differ in weight and may have different
lashing points. See the order-specific technical docu-
ments for details.
Personnel:
14

Protective equipment:




Risk of damage to property from forklifts or
pallet trucks!
Take proper precautions when you use a forklift or
pallet truck to move or lift parts or components of an
air handling unit as otherwise they may be damaged.
–
Fig. 4: Carrying load with a forklift
1.
2.
3.
Air handling unit X-CUBE X2 compact 2
Forklift driver
Industrial safety helmet
Protective clothing
Protective gloves
Safety shoes
NOTICE!
If you want to use a forklift to lift a package
without a base frame, you need to protect the
casing units properly.
Drive the forklift forward until the forks ( Fig. 4 /3)
are fully between the square edge timber sections
of the palette ( Fig. 4 /2) and protrude from under-
neath the base frame ( Fig. 4 /1) on the opposite
side.
Ensure that the load cannot tip.
Slowly lift the load and start moving.
