1.4 System Architecture

Power Supply
DIMMs
Fan
Processor
Motherboard
Feature
Power Supply
Drive Bays
Fan
Processor
DIMMs
Drive Cage
Motherboard

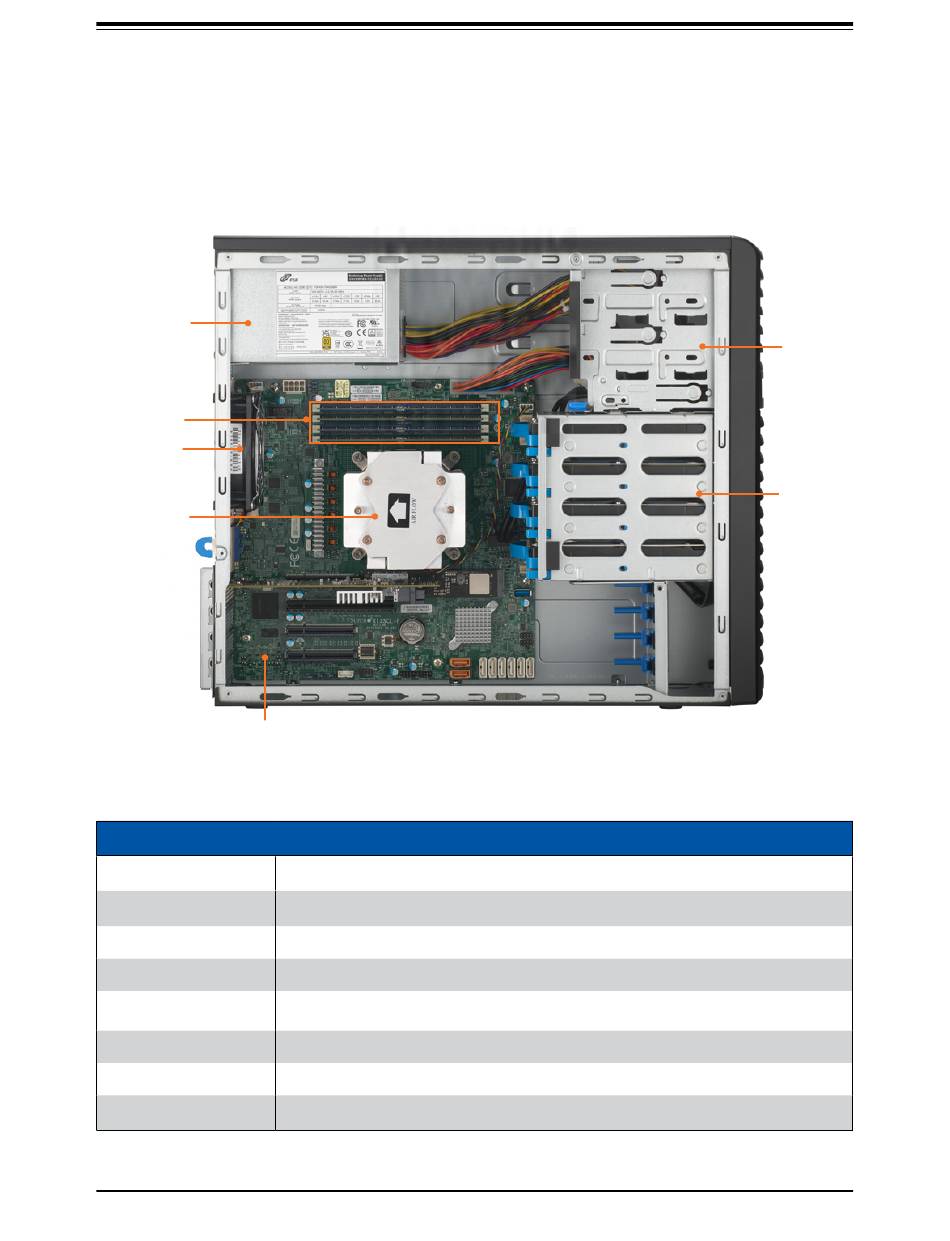

Figure 1-6. System Architecture
System Main Components
Description
Single 400 W power supply
Two 5.25" fixed drive bays
92 x 25 mm fan
Single Intel® Xeon® E-2400 and 12th Gen Pentium® (V0 LGA 1700) processors with
a thermal design power (TDP) of up to 95 W and up to eight cores
Four memory slots
Rotating cage for storage drives
X13SCL-F motherboard
16
Chapter 1: Introduction
Drive Bays
Drive Cage
