Plugging The Board Into The Slot; Closing The Pc; Fig. 5-2: Inserting The Board; Fig. 5-3: Fastening The Board At The Back Cover - Addi-Data ADDICOM APCI-7800 Technical Description

APCI-7800
5.3

Plugging the board into the slot

♦ Insert the board vertically into the chosen slot.
♦ Fasten the board to the rear of the PC housing with the screw which
was fixed on the back cover.

Fig. 5-3: Fastening the board at the back cover

♦ Tighten all the loosen screws.
5.4

Closing the PC

♦ Close your PC as described in the manual of the PC manufacturer.
20

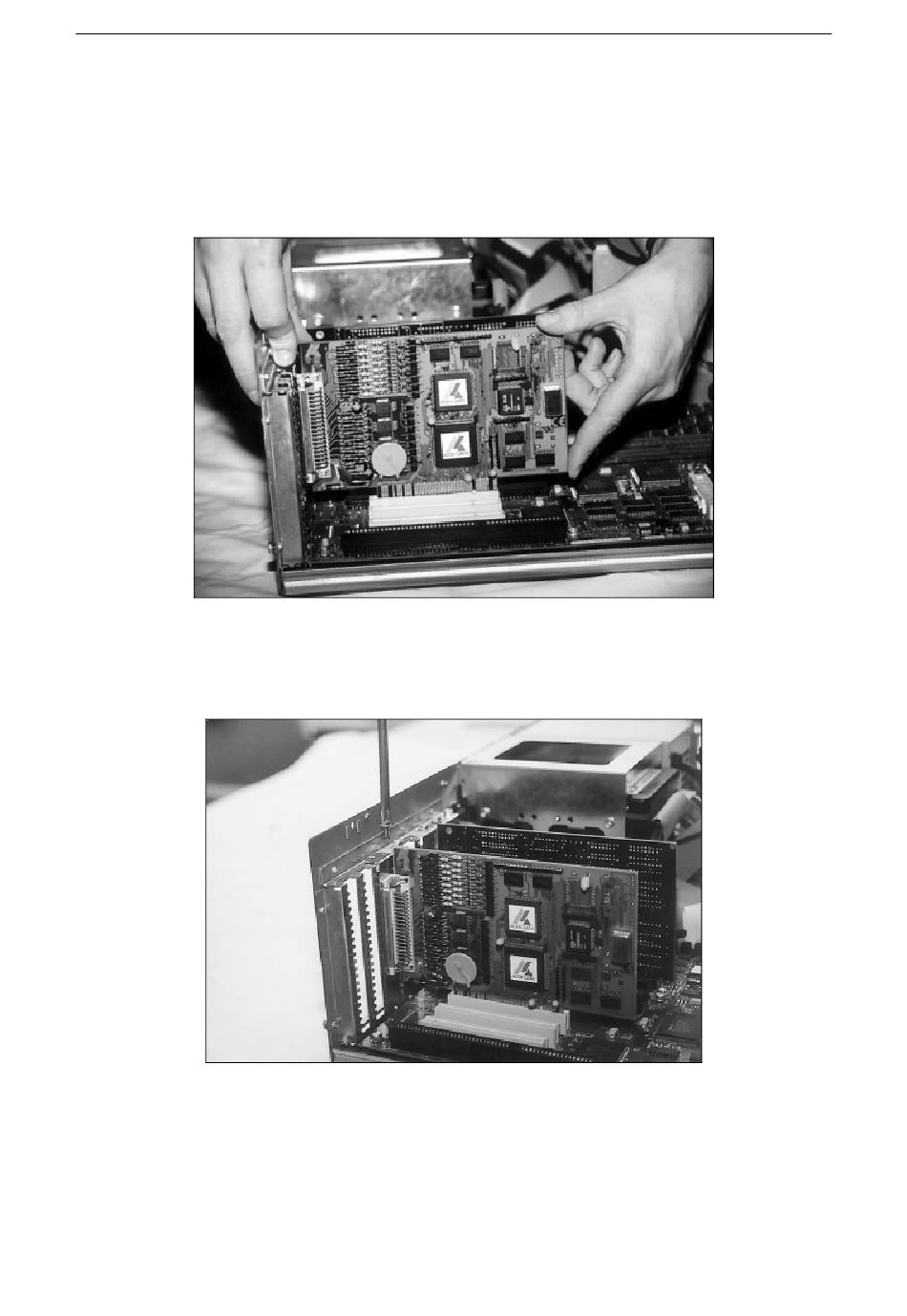

Fig. 5-2: Inserting the board

Installation of the board
